Home >> Pontiac >> 1994 >> Bonneville V6-3800 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Coolant Level Indicator Lamp

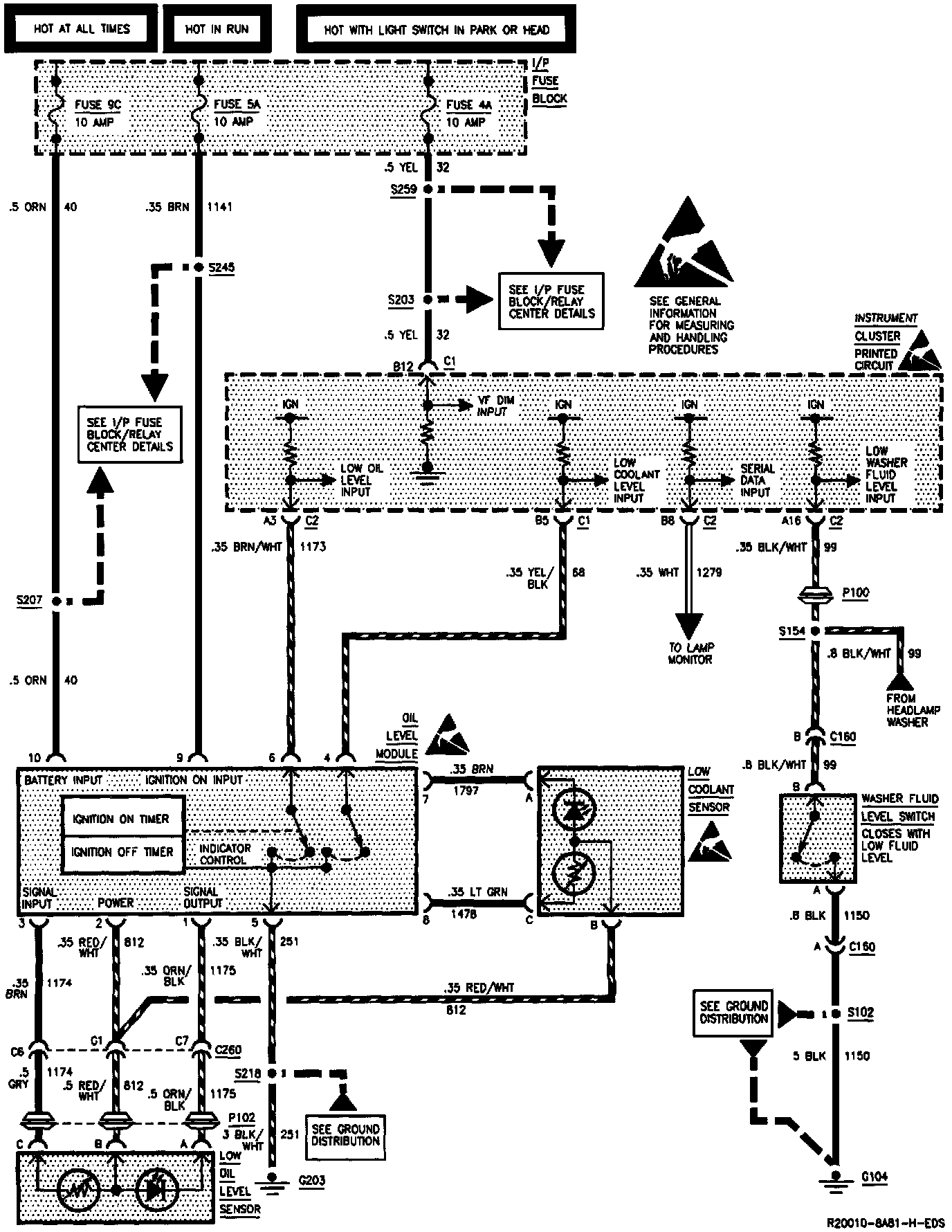

Coolant Level Indicator Lamp

Gages Cluster (U2F) (U50): Driver Information Center (DIC) (Part 3 of 4):
