Home >> Pontiac >> 1994 >> Bonneville V6-3800 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device

Audible Warning Device

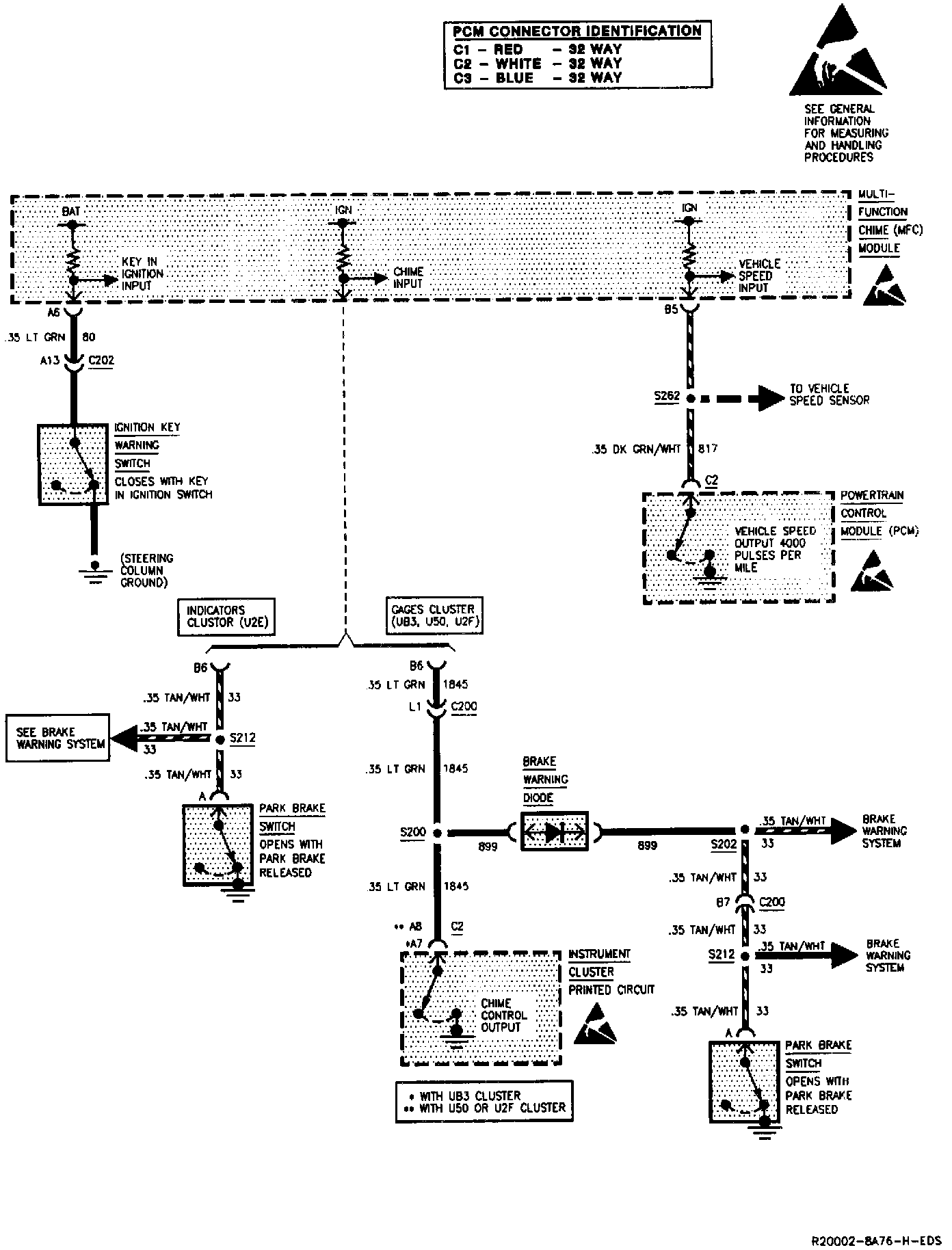

Chime (Part 1 Of 2):

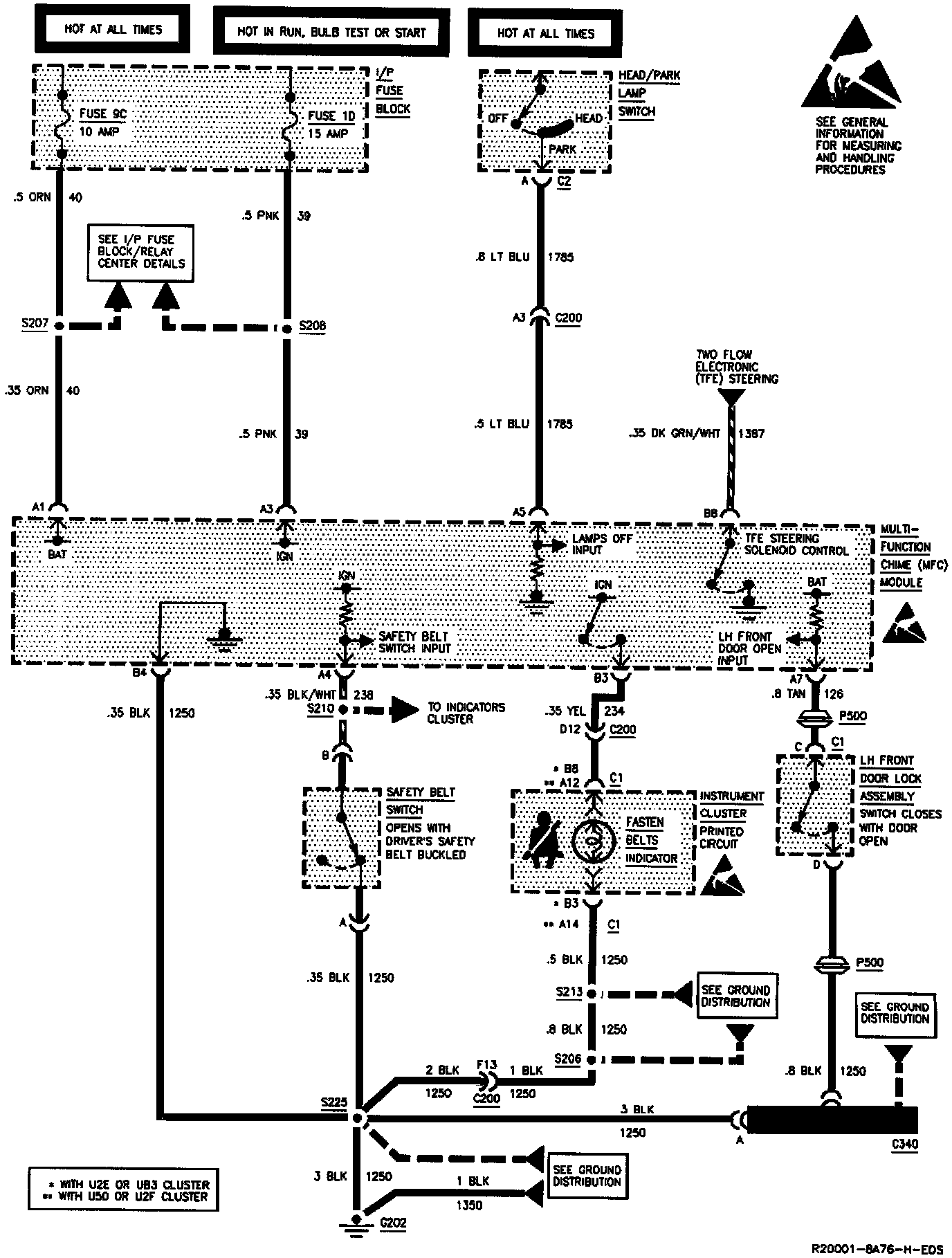

Chime (Part 2 Of 2):
