Gages Cluster (U2F) (U50)

Gages Cluster (U2F) (U50): Indicators:

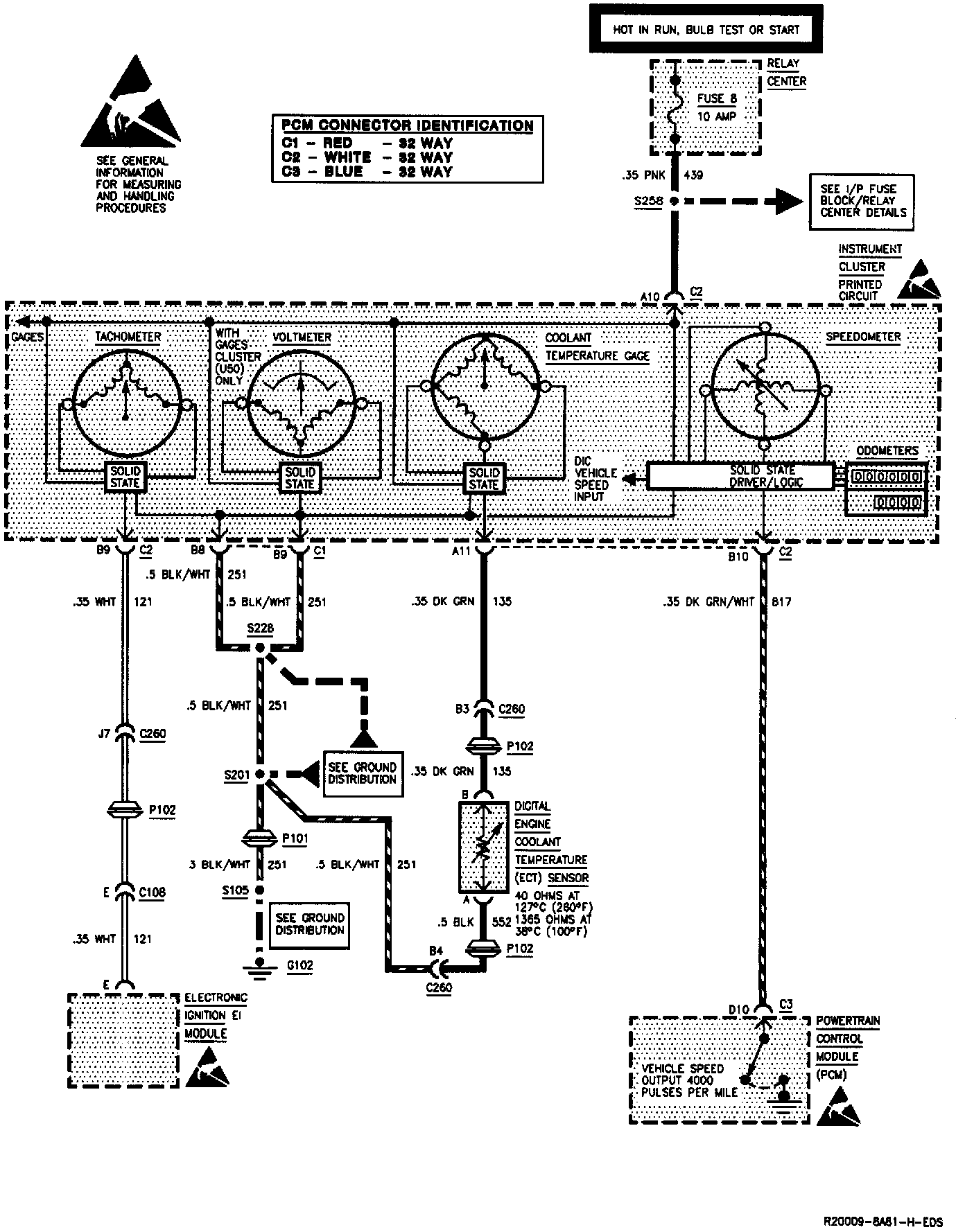

Gages Cluster: Coolant Temperature, Odometers, Speedometer, Tachometer And Voltmeter:

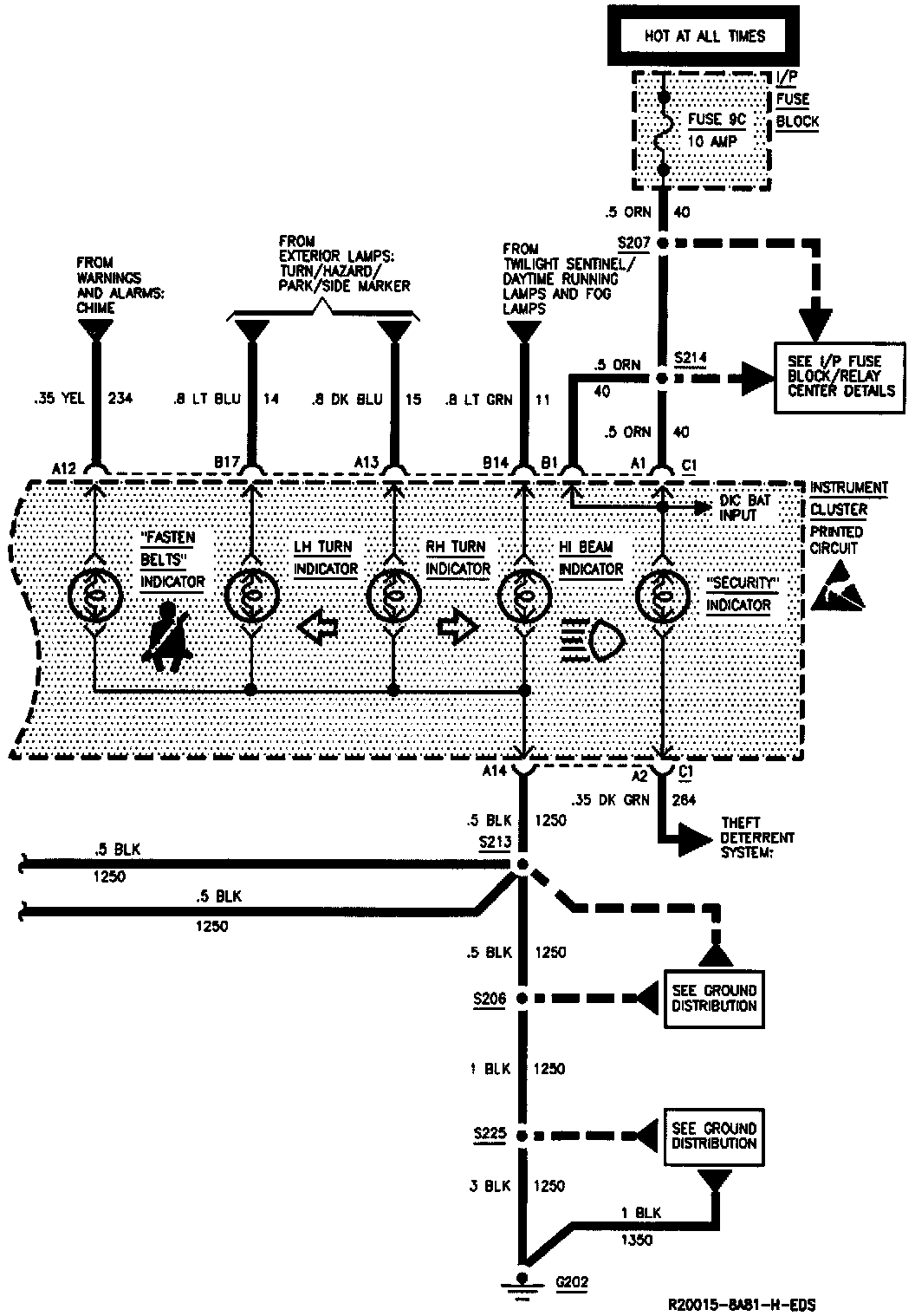

Gages Cluster (U2F) (U50): Indicators And Illumination Lamps (Part 1 Of 2):

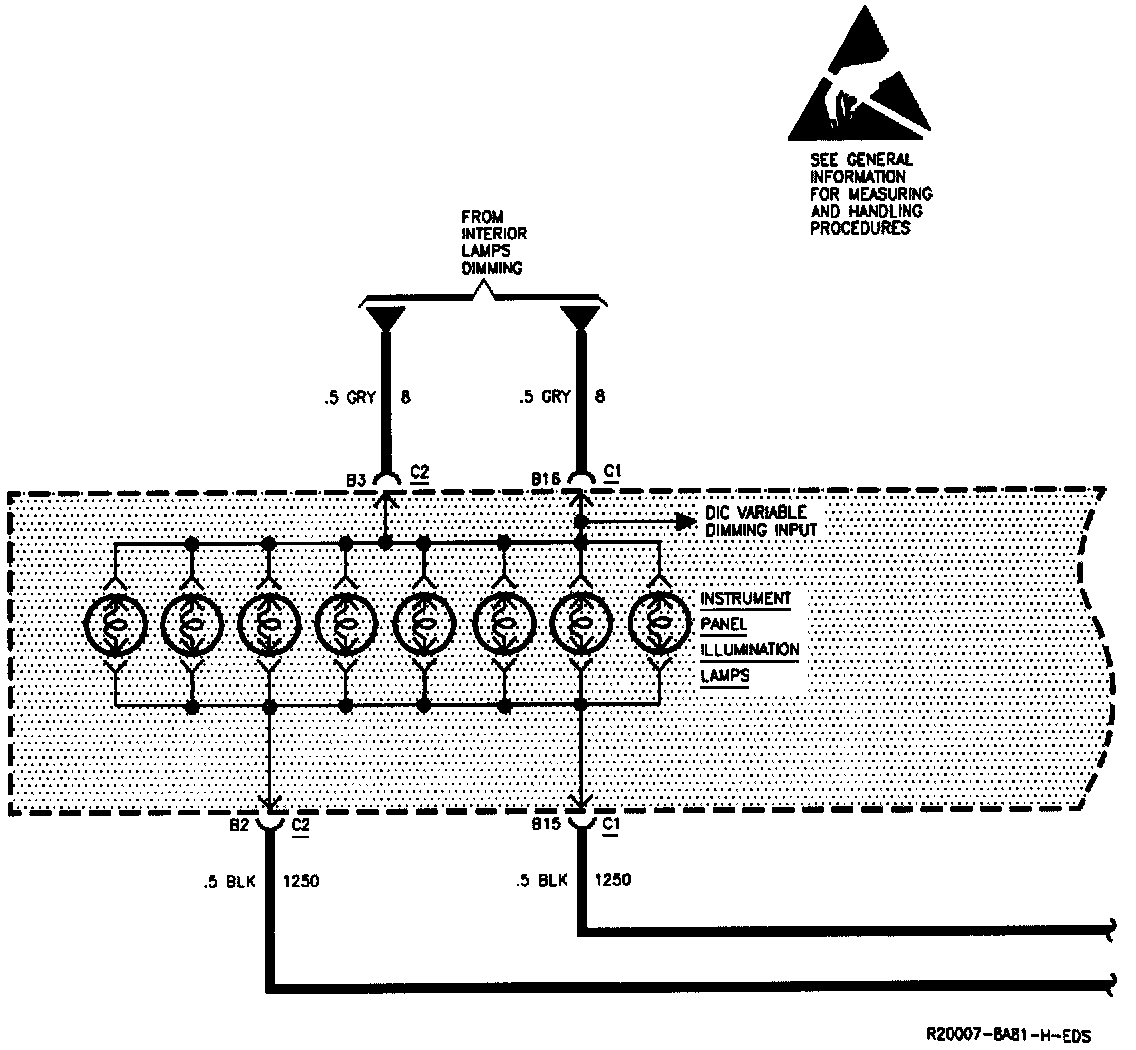

Gages Cluster (U2F) (U50): Indicators And Illumination Lamps (Part 2 Of 2):

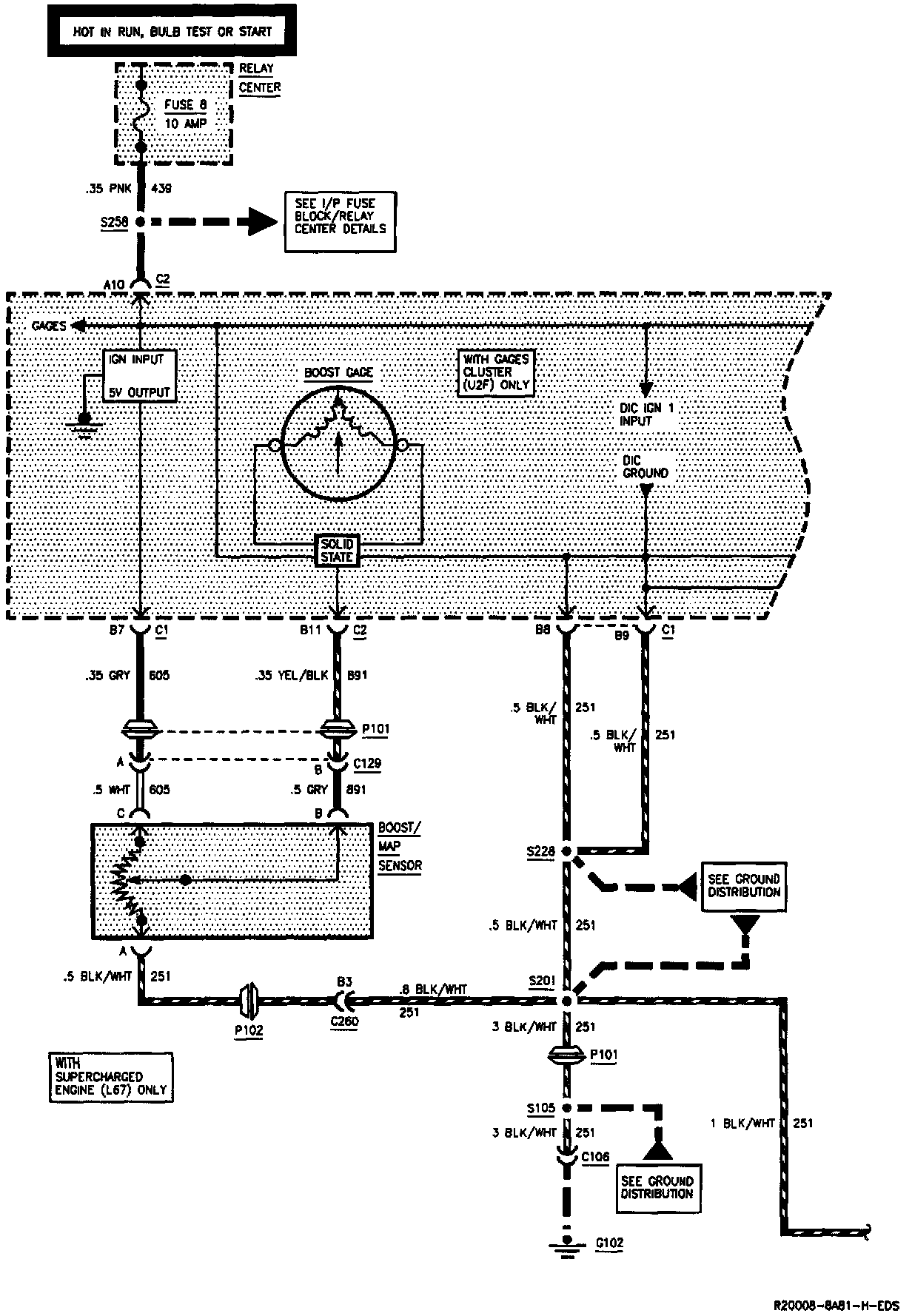

Gages Cluster (U2F) (U50): Boost, Fuel And Oil Pressure (Part 1 Of 2):

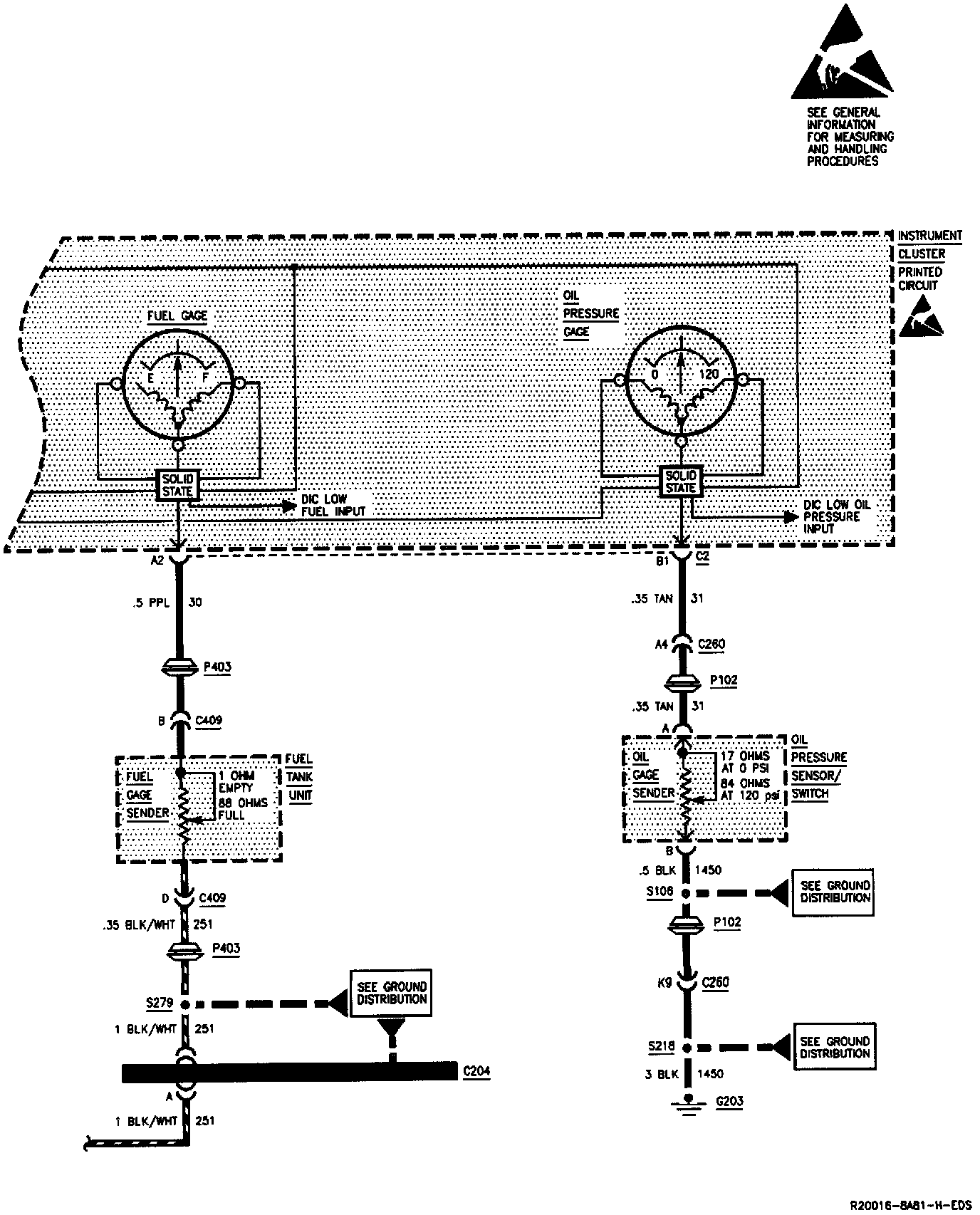

Gages Cluster (U2F) (U50): Boost, Fuel And Oil Pressure (Part 2 Of 2):
