Gages Cluster (U2F) (U50): Driver Information Center (DIC)

Gages Cluster (U2F) (U50): Driver Information Center (DIC) (Part 1 of 4):

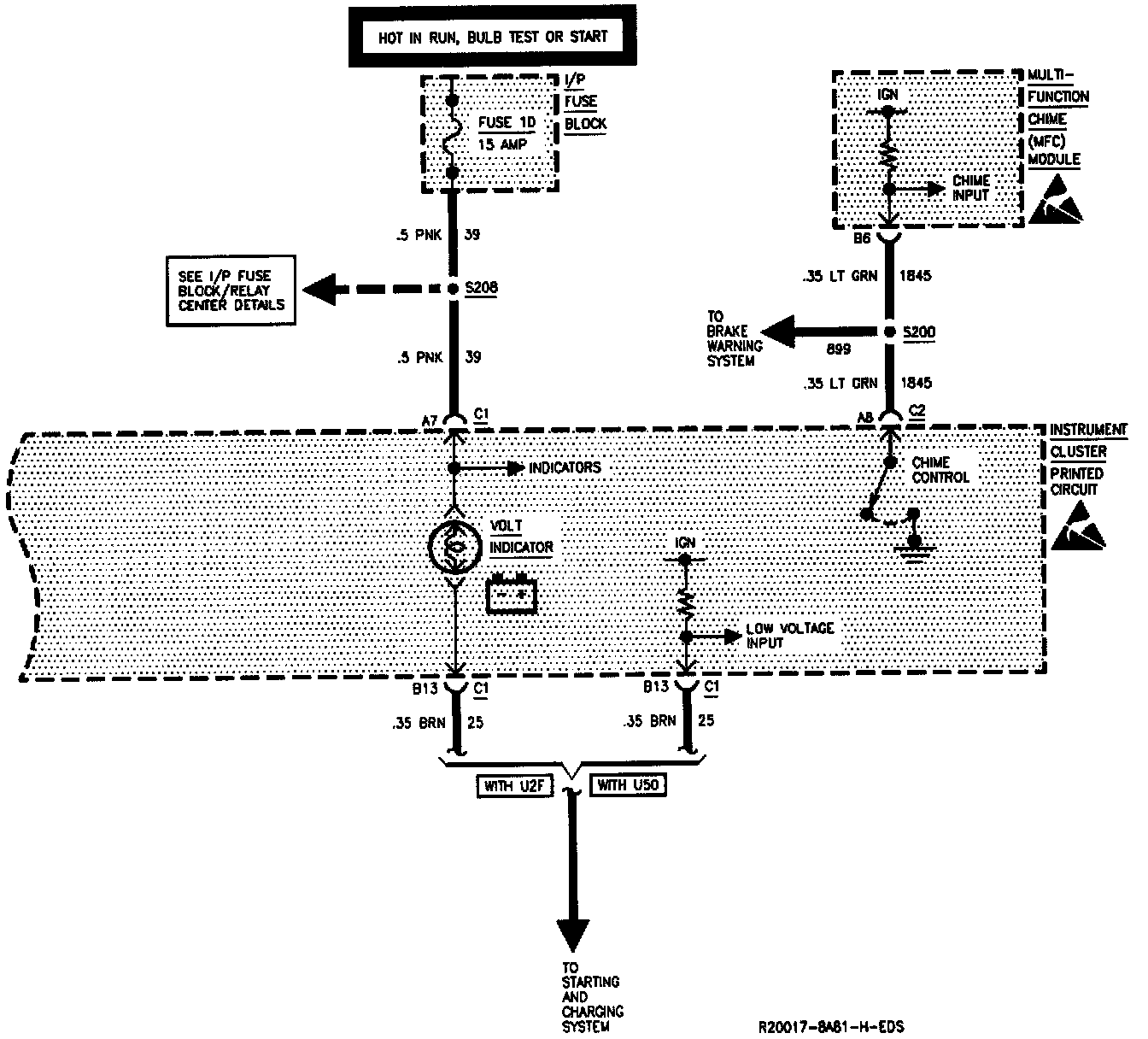

Gages Cluster (U2F) (U50): Driver Information Center (DIC) (Part 2 of 4):




Gages Cluster (U2F) (U50): Driver Information Center (DIC) (Part 3 of 4):




Gages Cluster (U2F) (U50): Driver Information Center (DIC) (Part 4 of 4):
