Automatic Transmission/Transaxle Controls
Automatic Transmission/Transaxle Controls

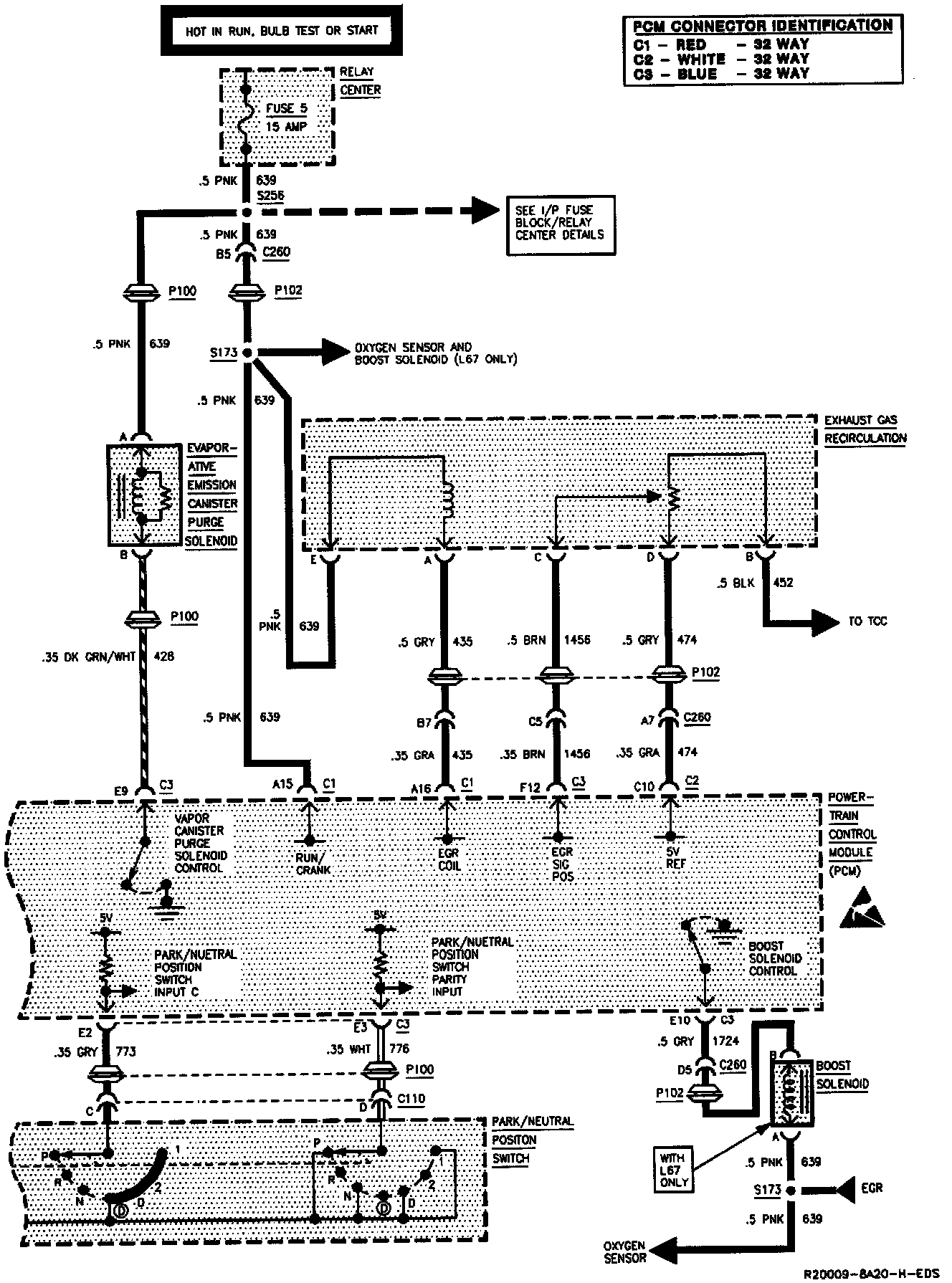

Automatic Transaxle And Emission Control (Part 1 Of 2):

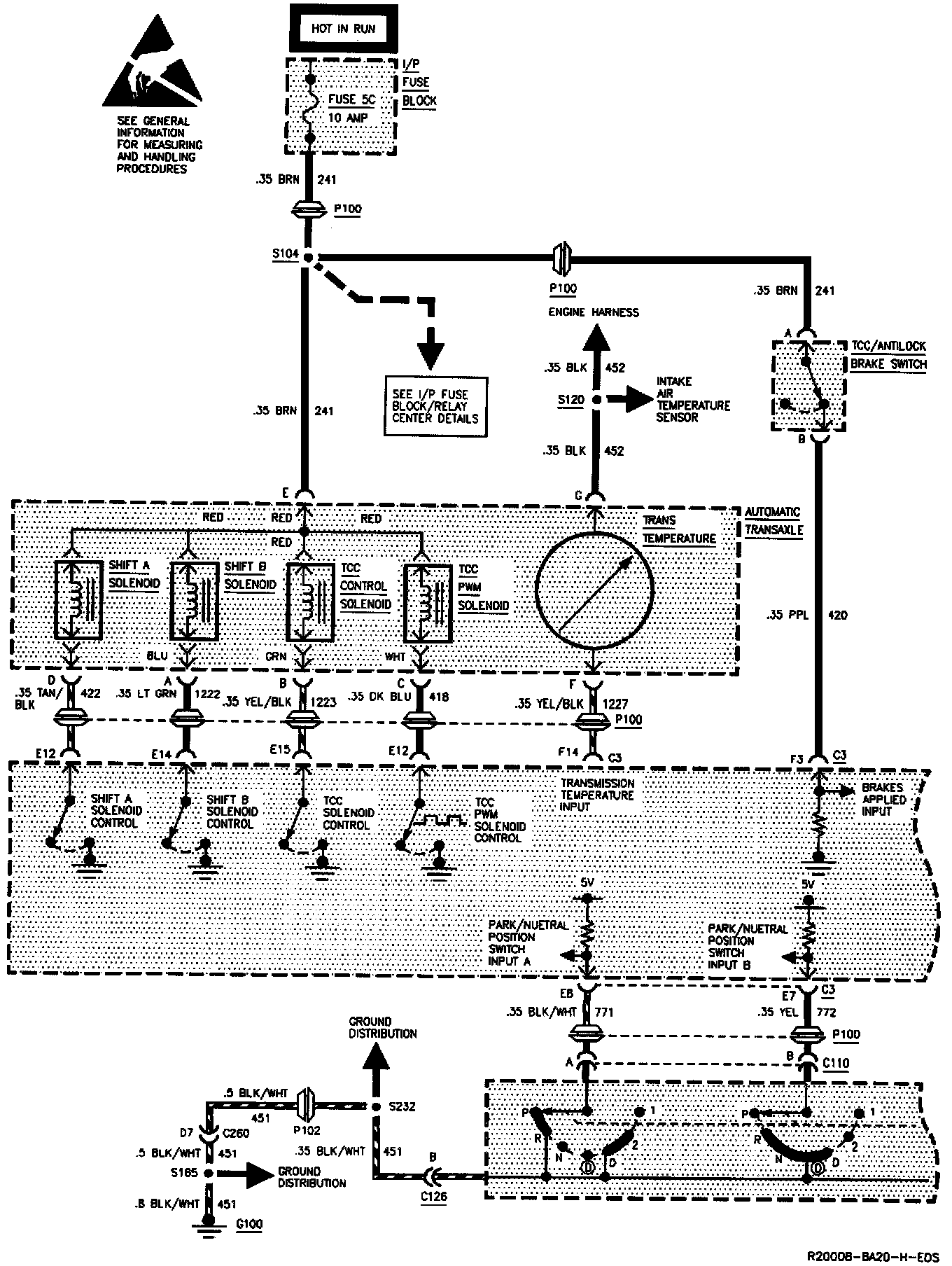

Automatic Transaxle And Emission Control (Part 2 Of 2):
