Cruise Control
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Cruise Control System Inspection
Cruise Control System Inspection

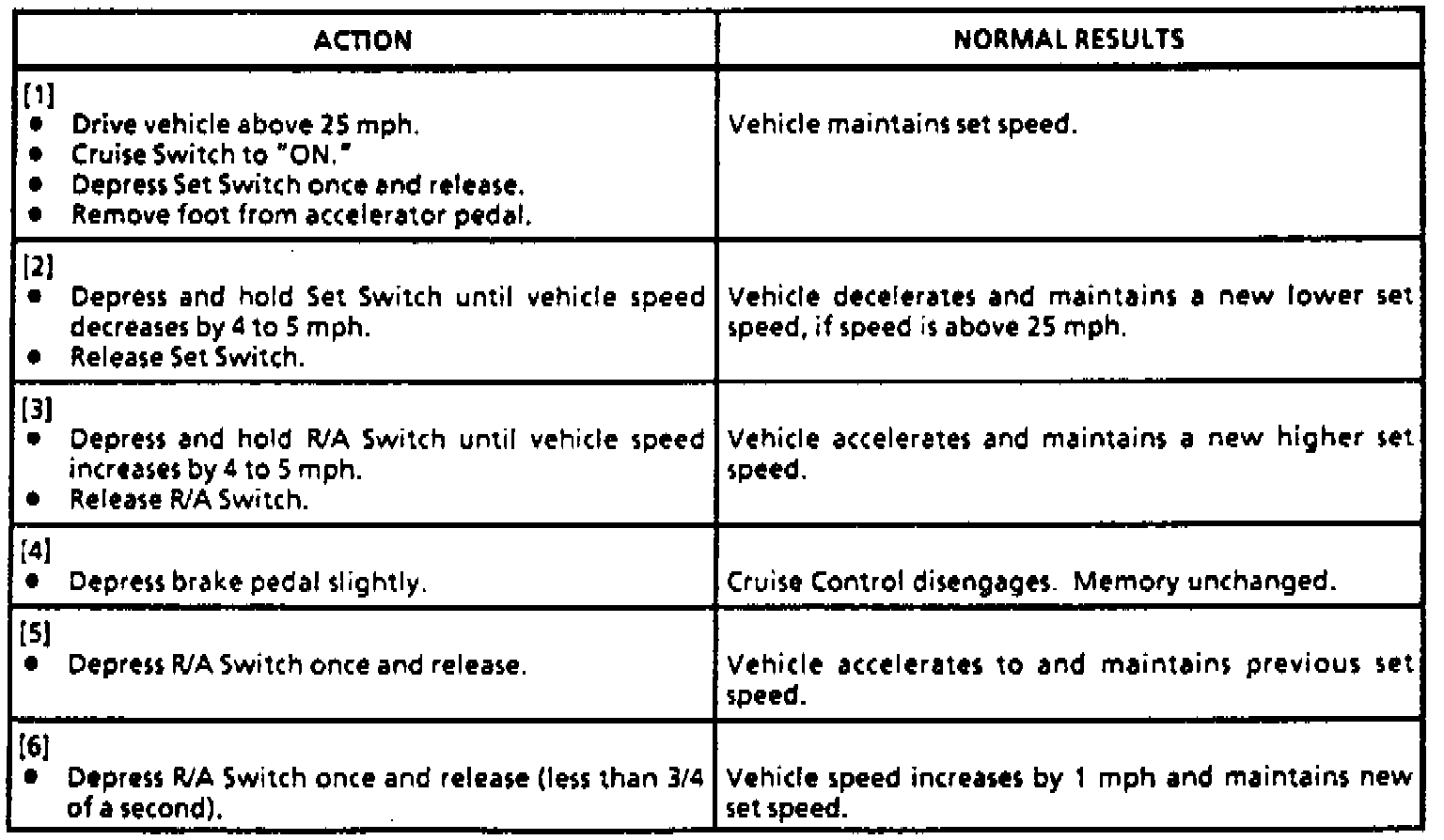

Fig. 12 Cruise Control System Inspection:
Fig. 12 Cruise Control System Inspection:
