Pontiac
>>
1994
>>
Firebird V6-204 3.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
With Traction Control
With Traction Control

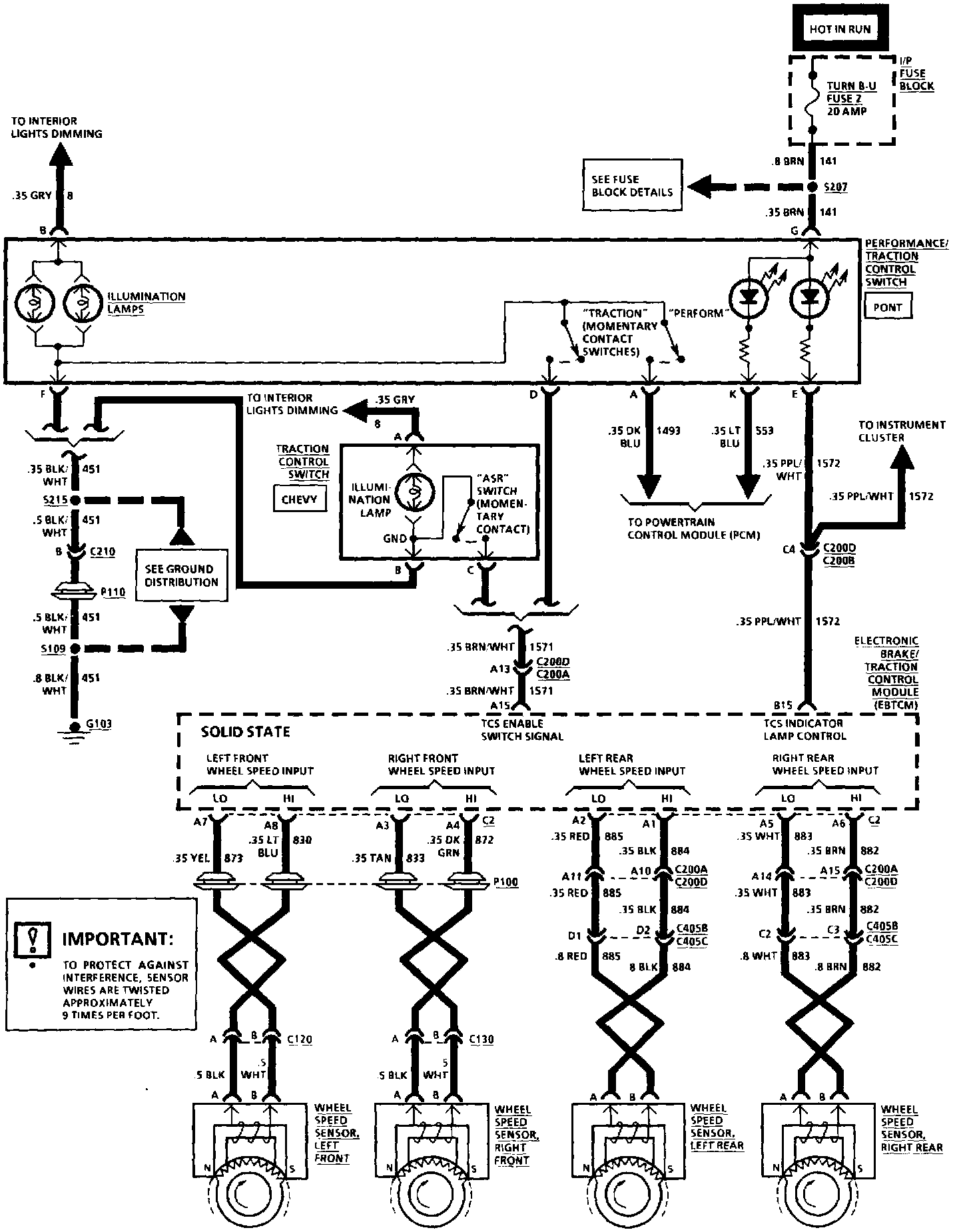

Antilock Brakes/Traction Control (NW9) (Part 1 Of 3):

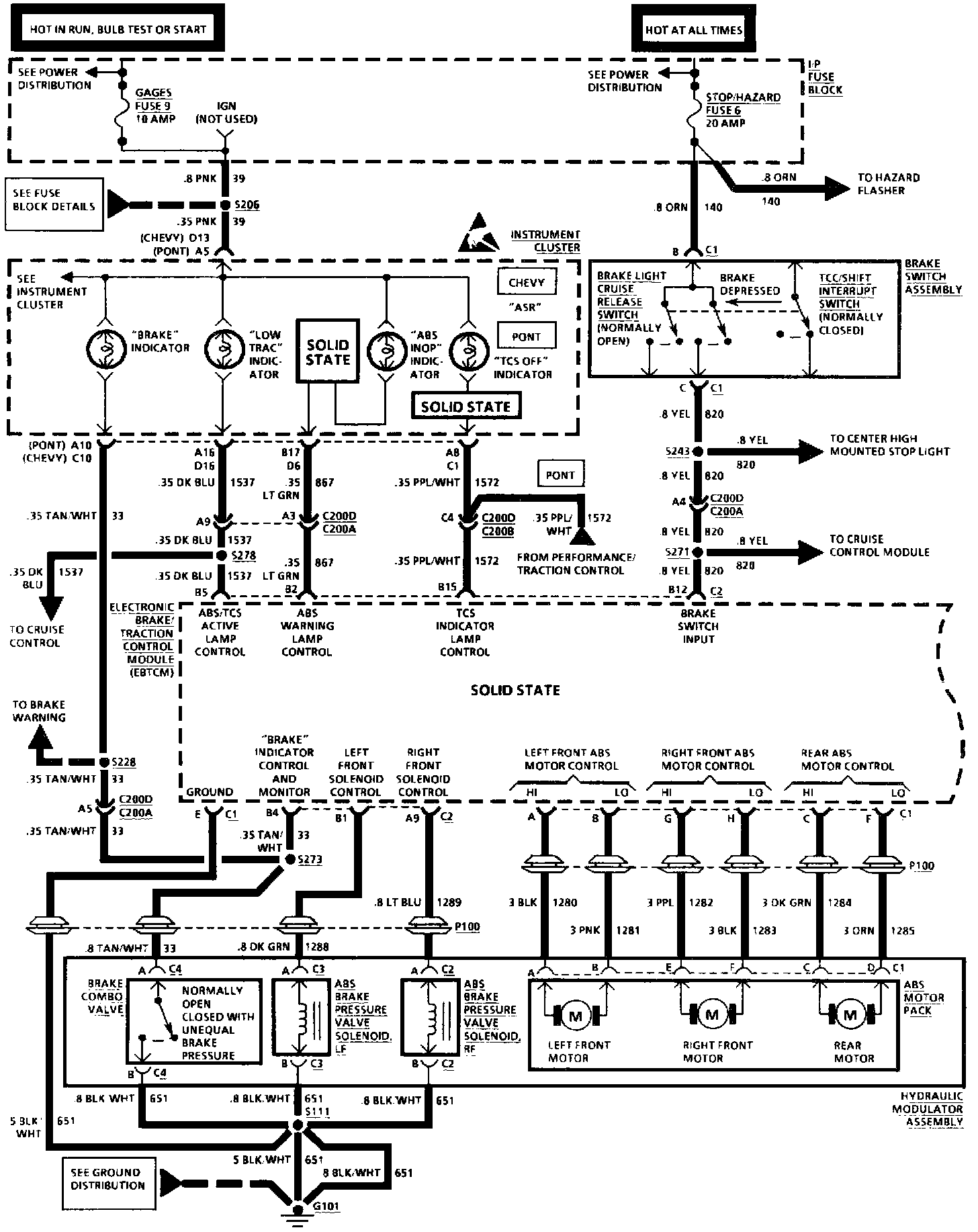

Antilock Brakes/Traction Control (NW9) (Part 2 Of 3):
Antilock Brakes/Traction Control (NW9) (Part 3 Of 3):
