Daytime Running Lamp

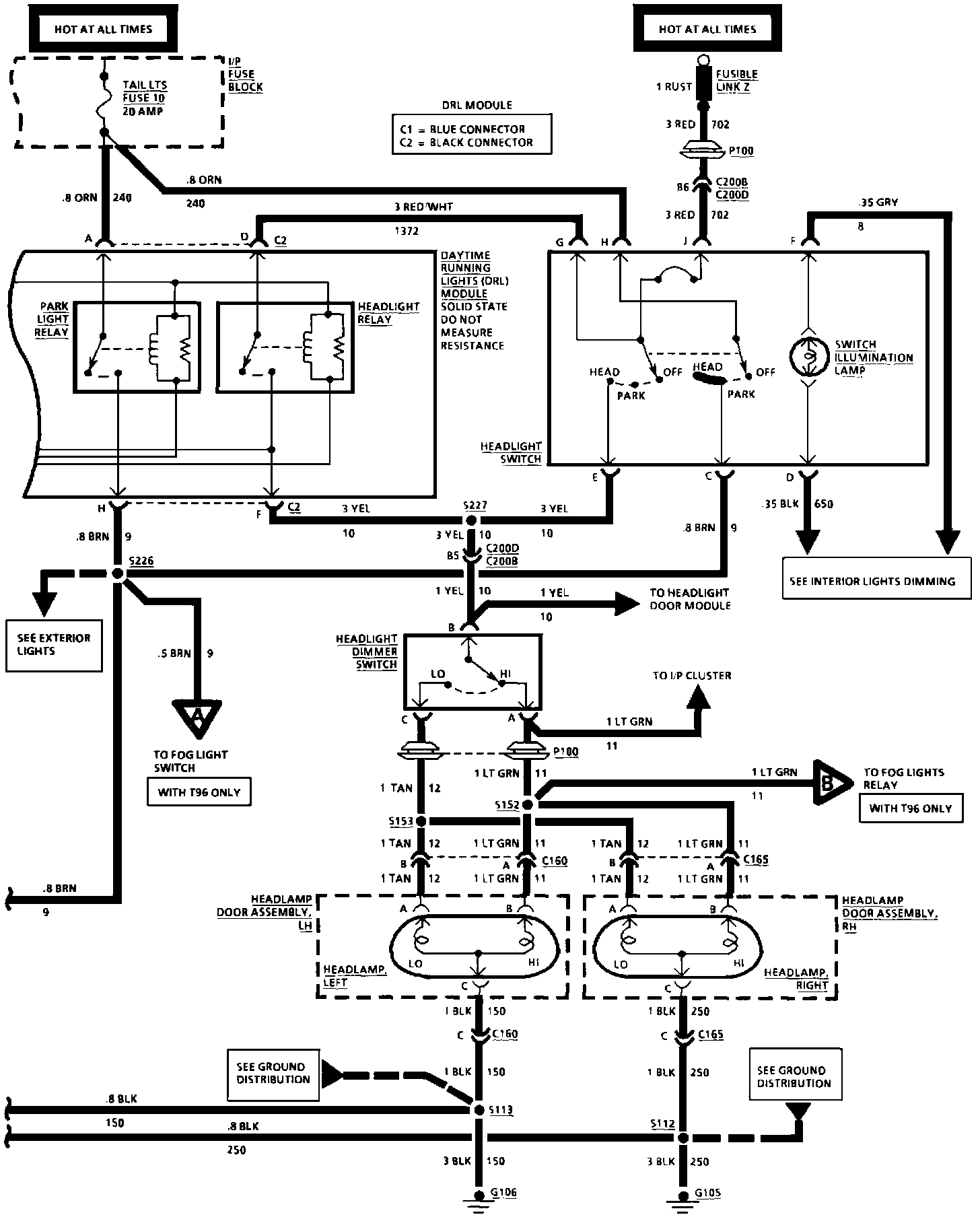

Headlight And Fog Light: DRL (T61) (Part 1 Of 3):

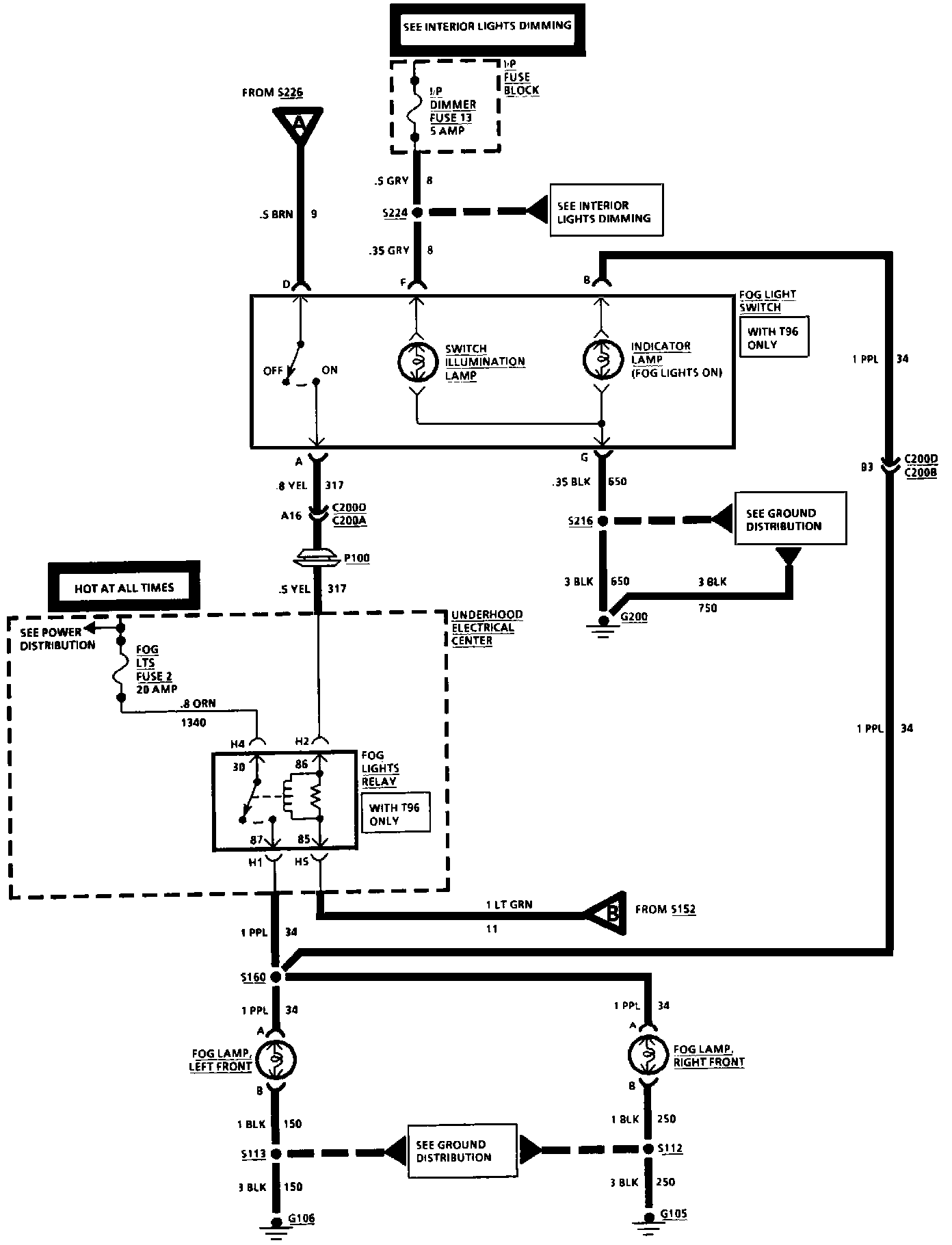

Headlight And Fog Light: DRL (T61) (Part 2 Of 3):
Headlight And Fog Light: DRL (T61) (Part 2 Of 3):
