Home >> Pontiac >> 1994 >> Firebird V6-204 3.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Tail Lamp

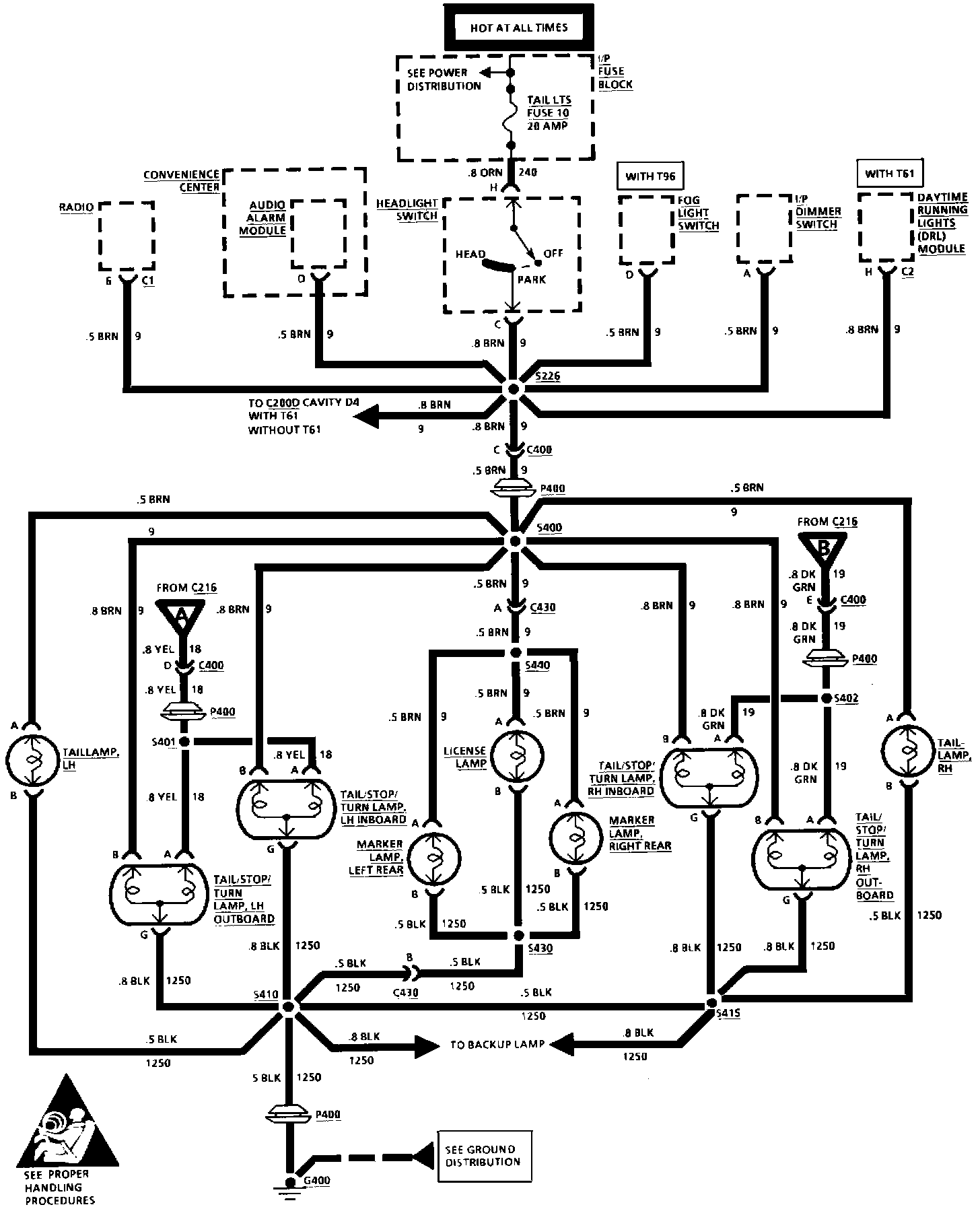

Tail Lamp

Exterior Lights: Rear Marker/License/Tail/Stop/Turn:
