Home >> Pontiac >> 1994 >> Firebird V6-204 3.4L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Tachometer >> Testing and Inspection

Tachometer: Testing and Inspection

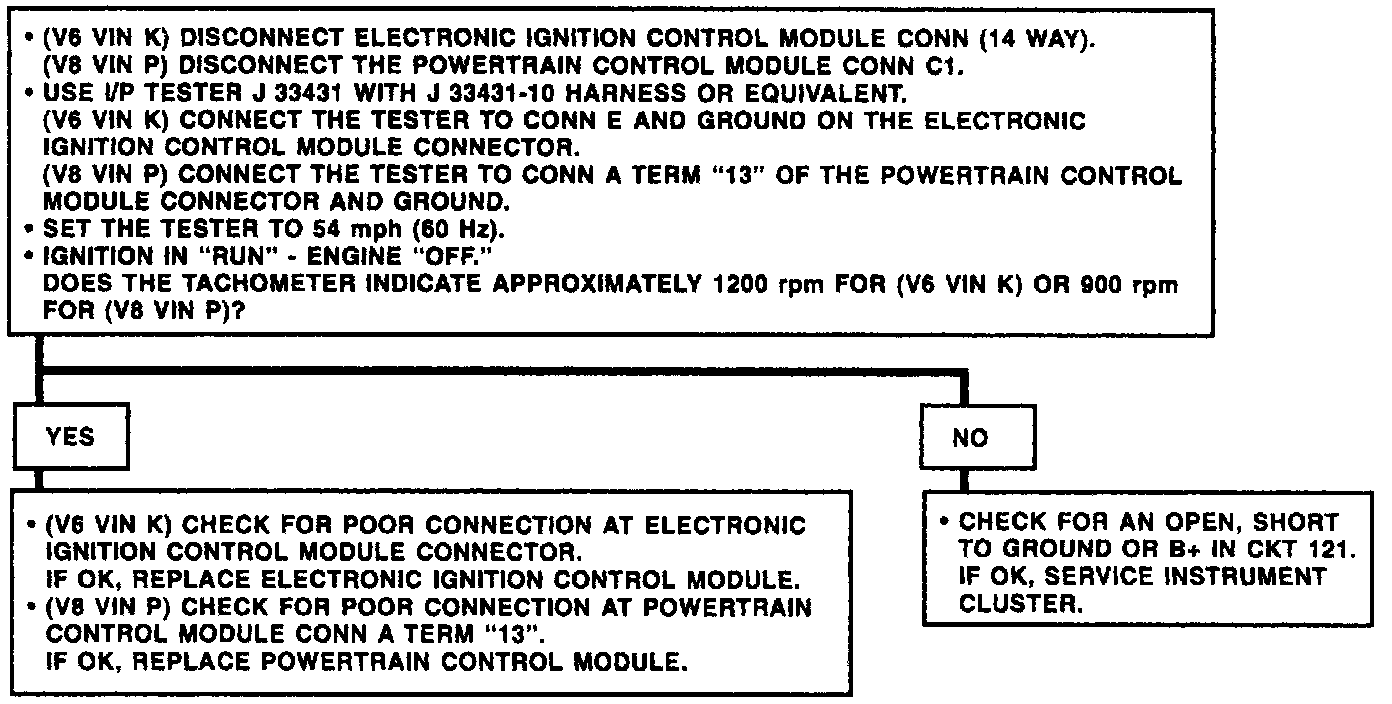

Fig. 85 Chart 10: Tachometer Inoperative Or Inaccurate (Engine Running Normal):
