Lighting and Horns: Locations

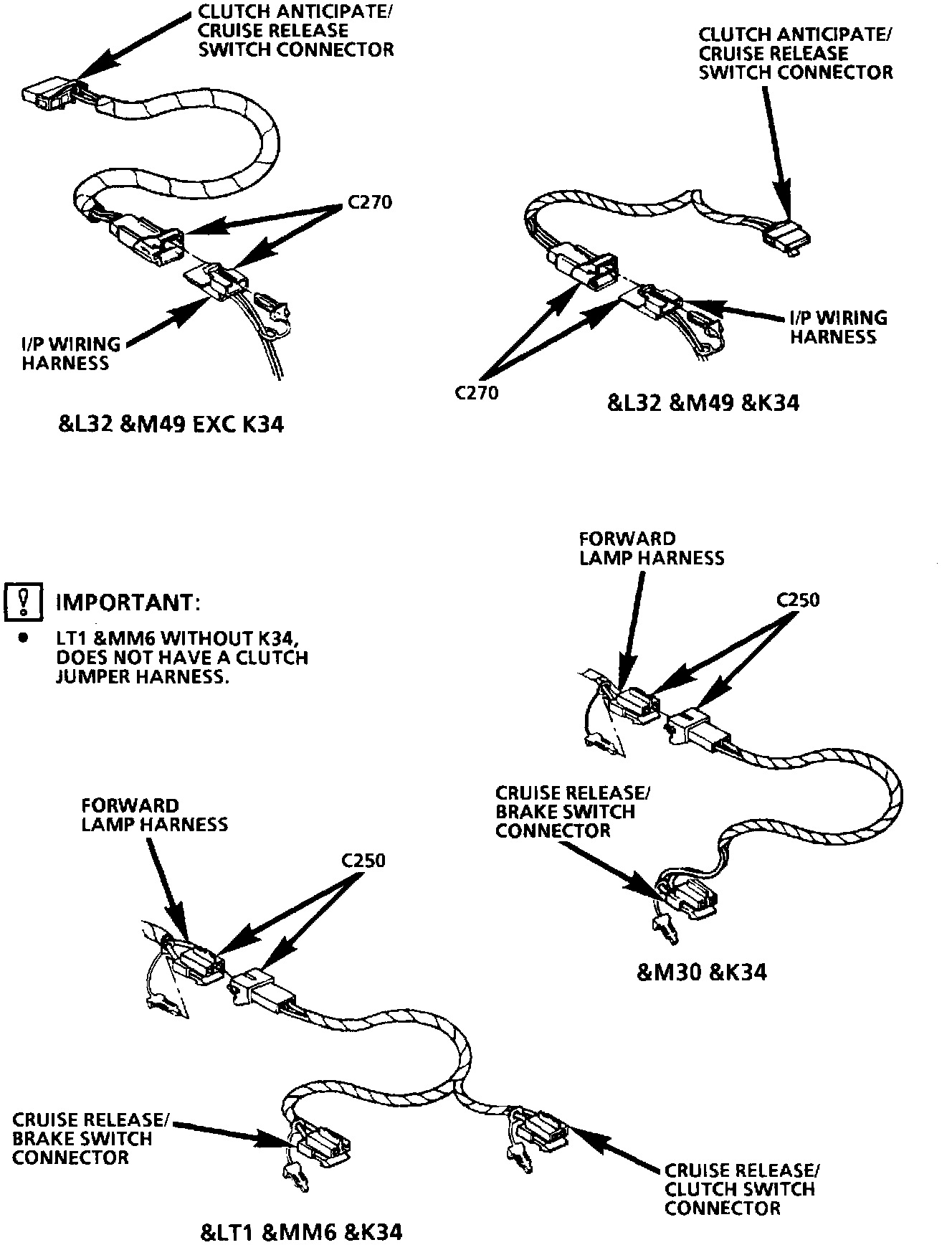

Clutch Jumper Harness Combinations: Manual (M49 Or MN6):

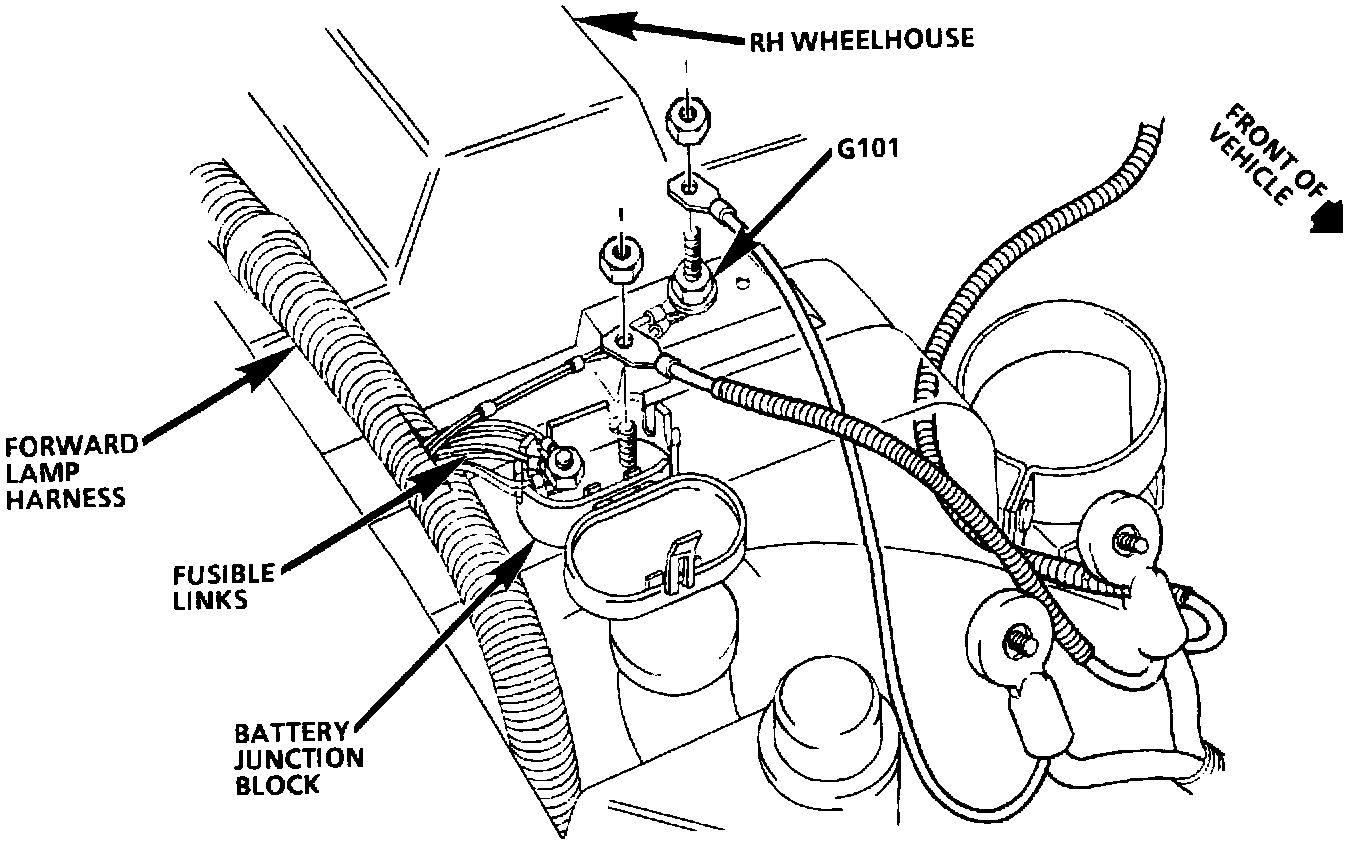

RH Wheelhouse:

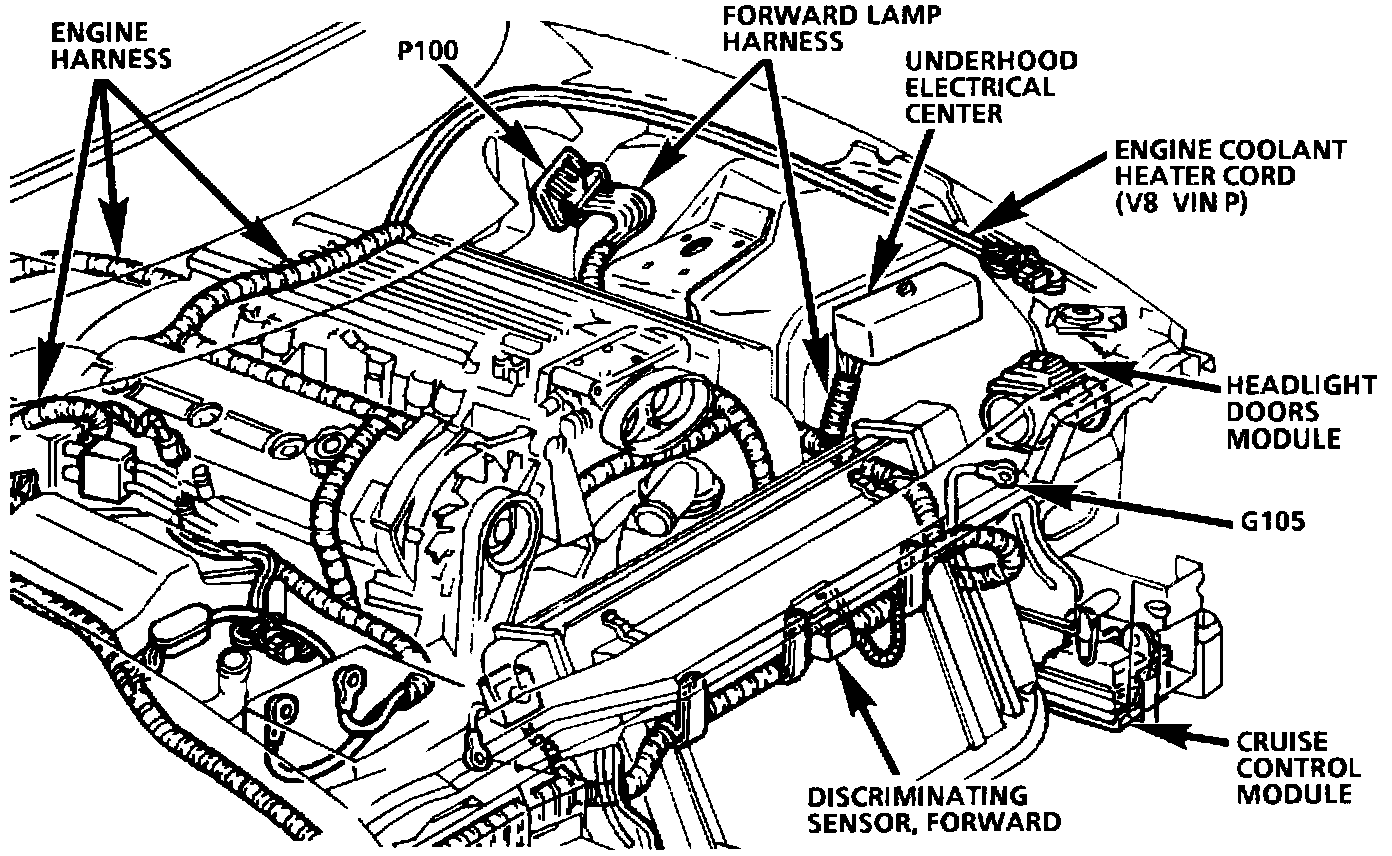

Right Rear Of Engine Compartment:

RH Side Of Front Fascia (LH Similar):

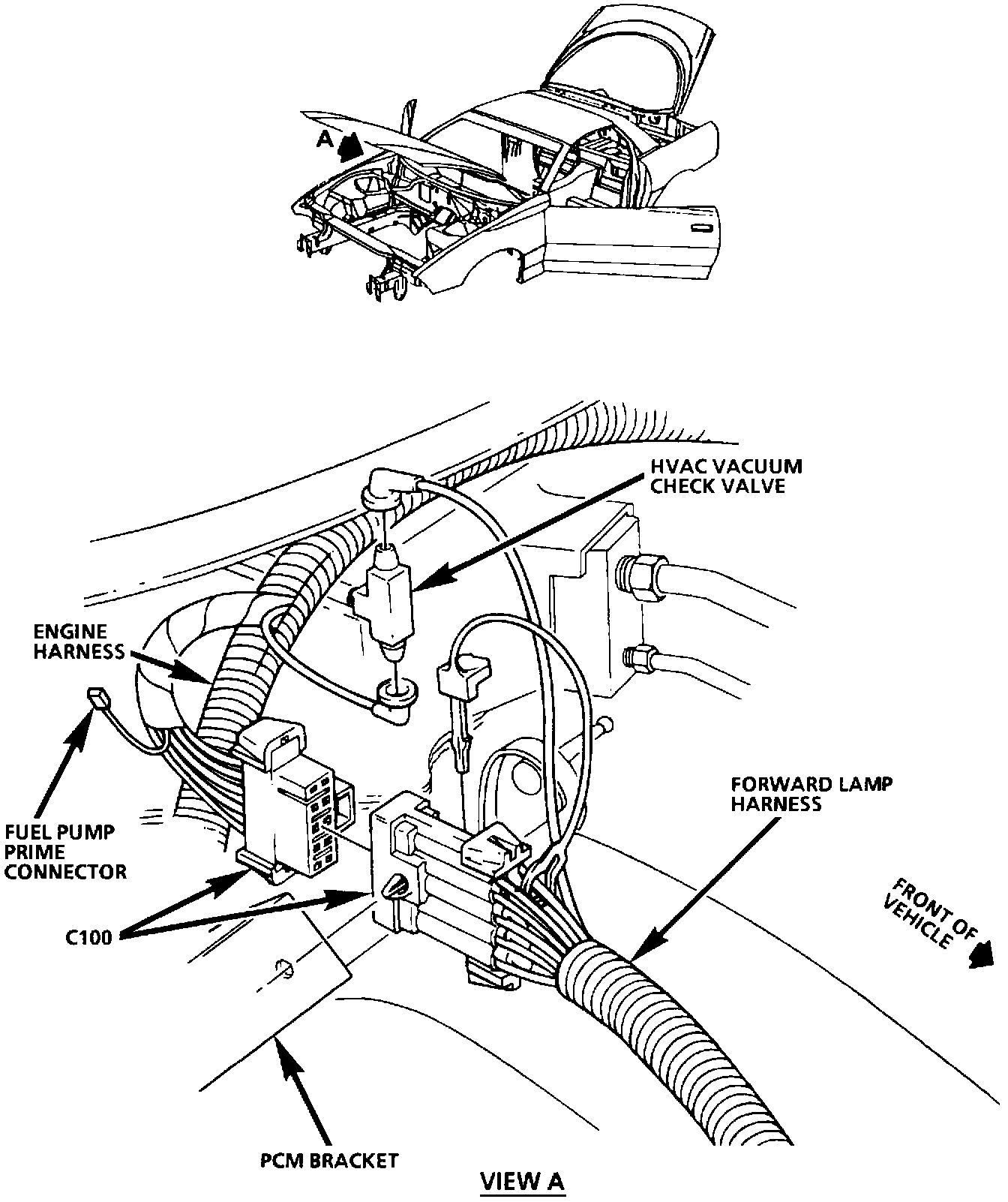

Engine Compartment:

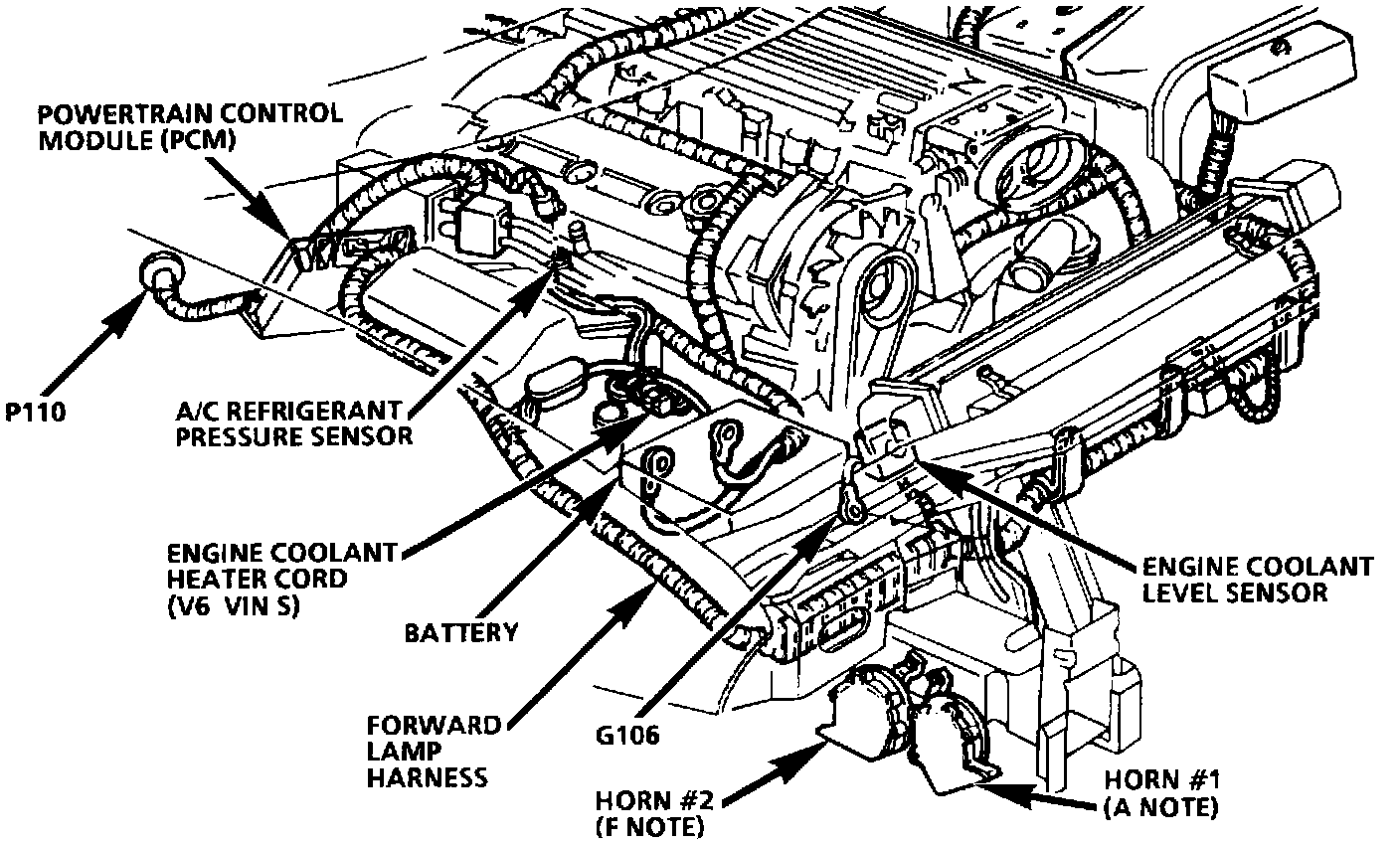

Engine Compartment:

Between LH Kick Panel And Steering Column:

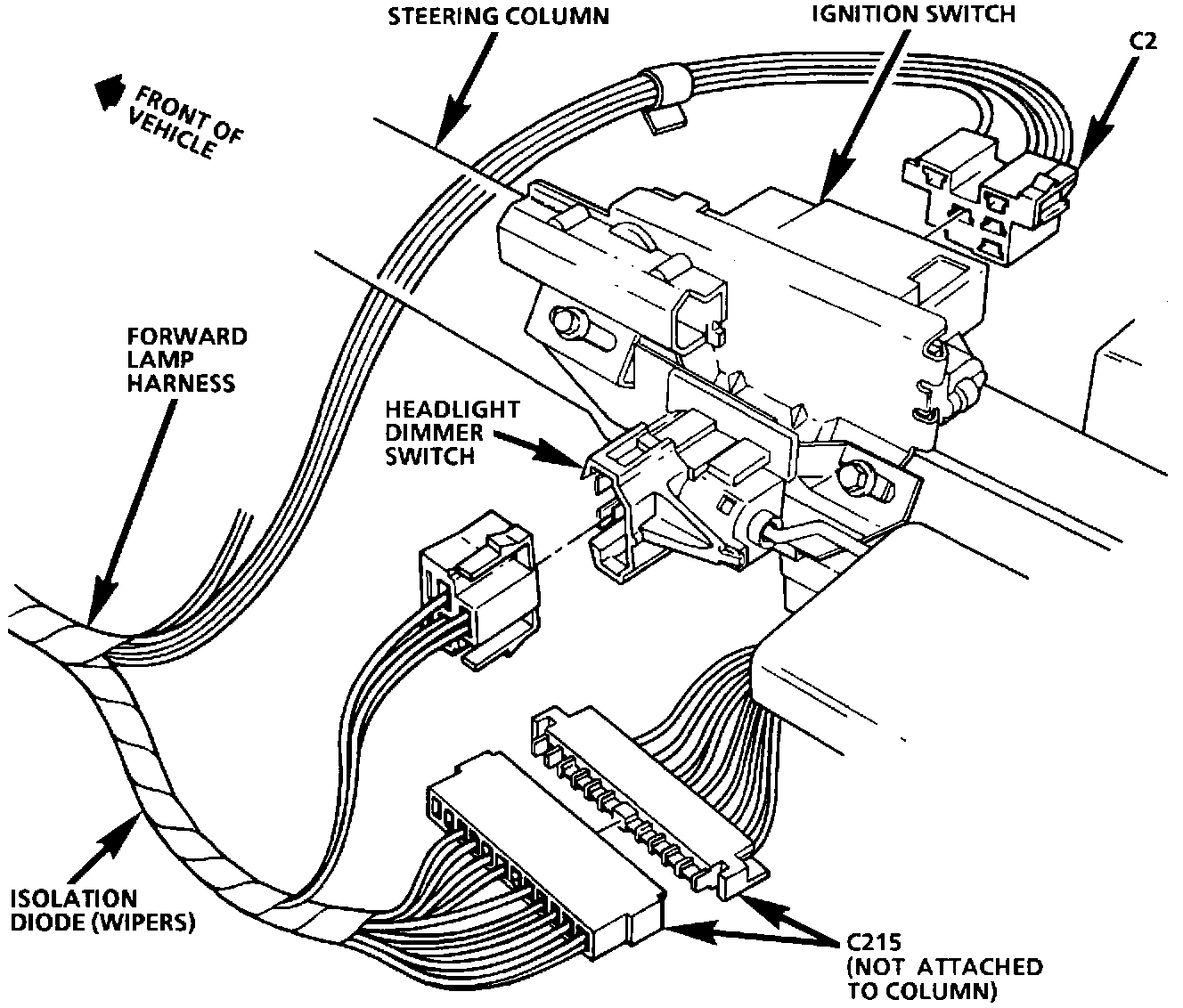

Bottom Of Steering Column:

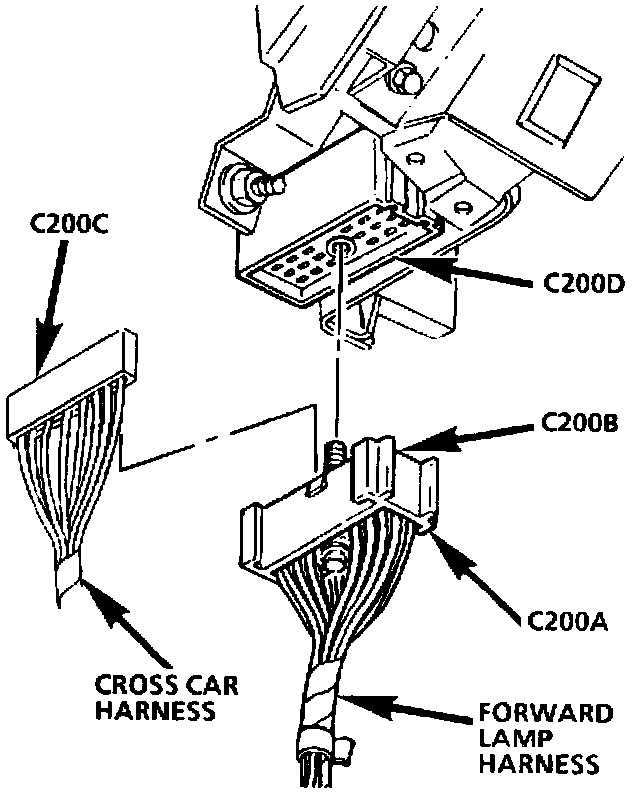

Bottom Of Steering Column:

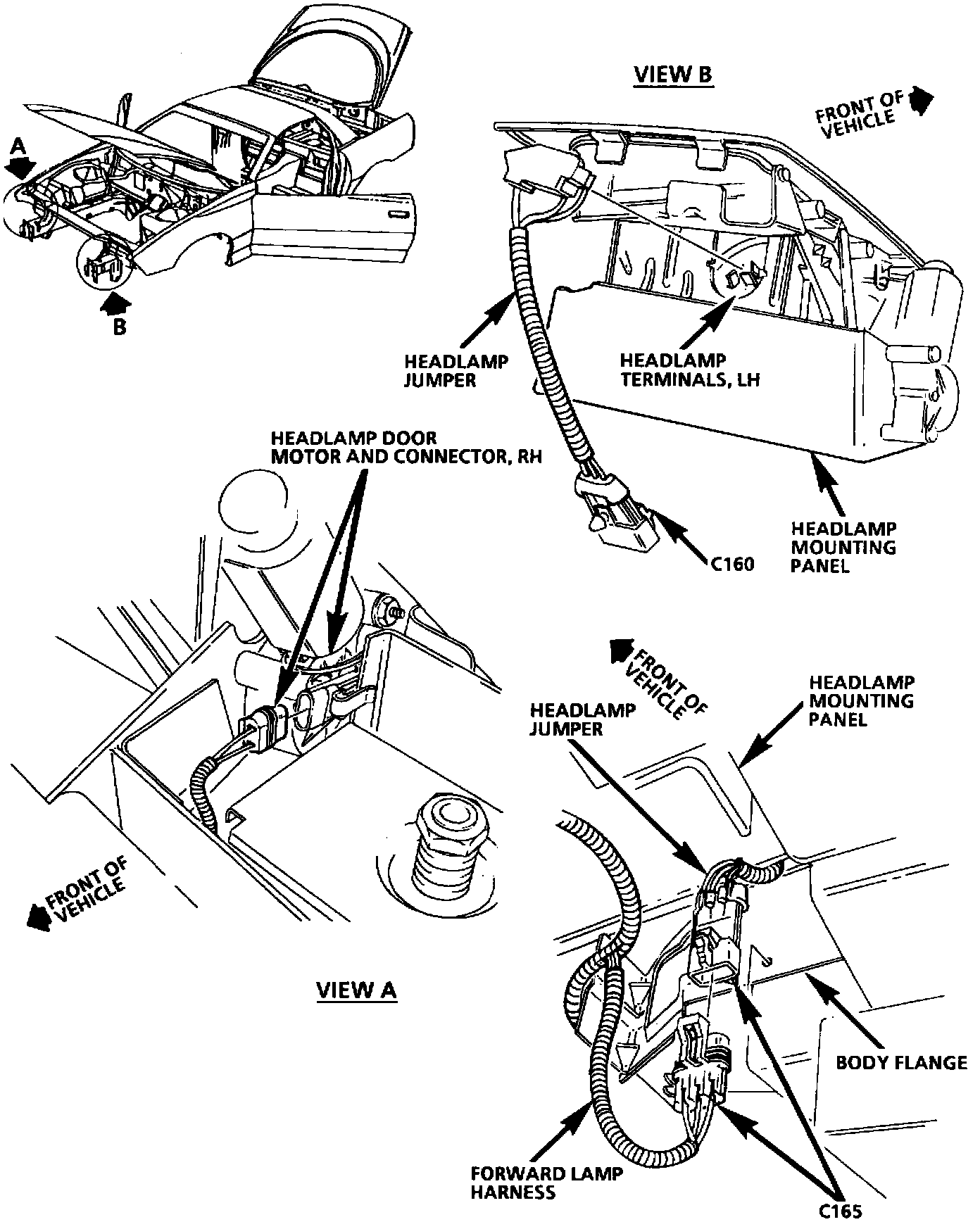

Headlamp Area:
