Underhood Fuses 1, 2, 3, 4 and Fog Lights Relay
Underhood Fuses 1, 2, 3, 4 and Fog Lights Relay

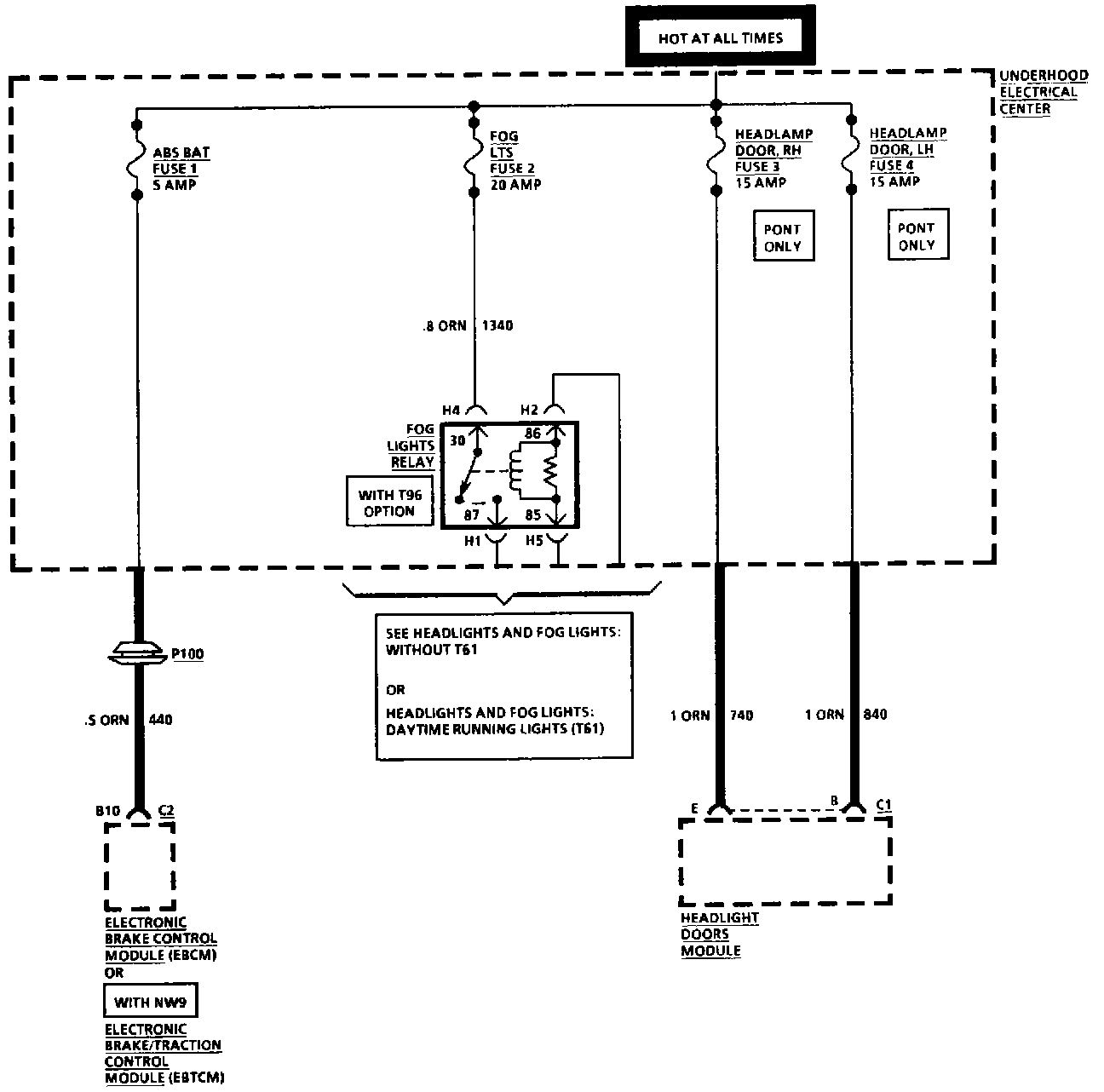

Underhood Fuses 1, 2, 3, 4 And Fog Lights Relay:
