Manual Transmission Control & VSS
Manual Transmission Control & VSS

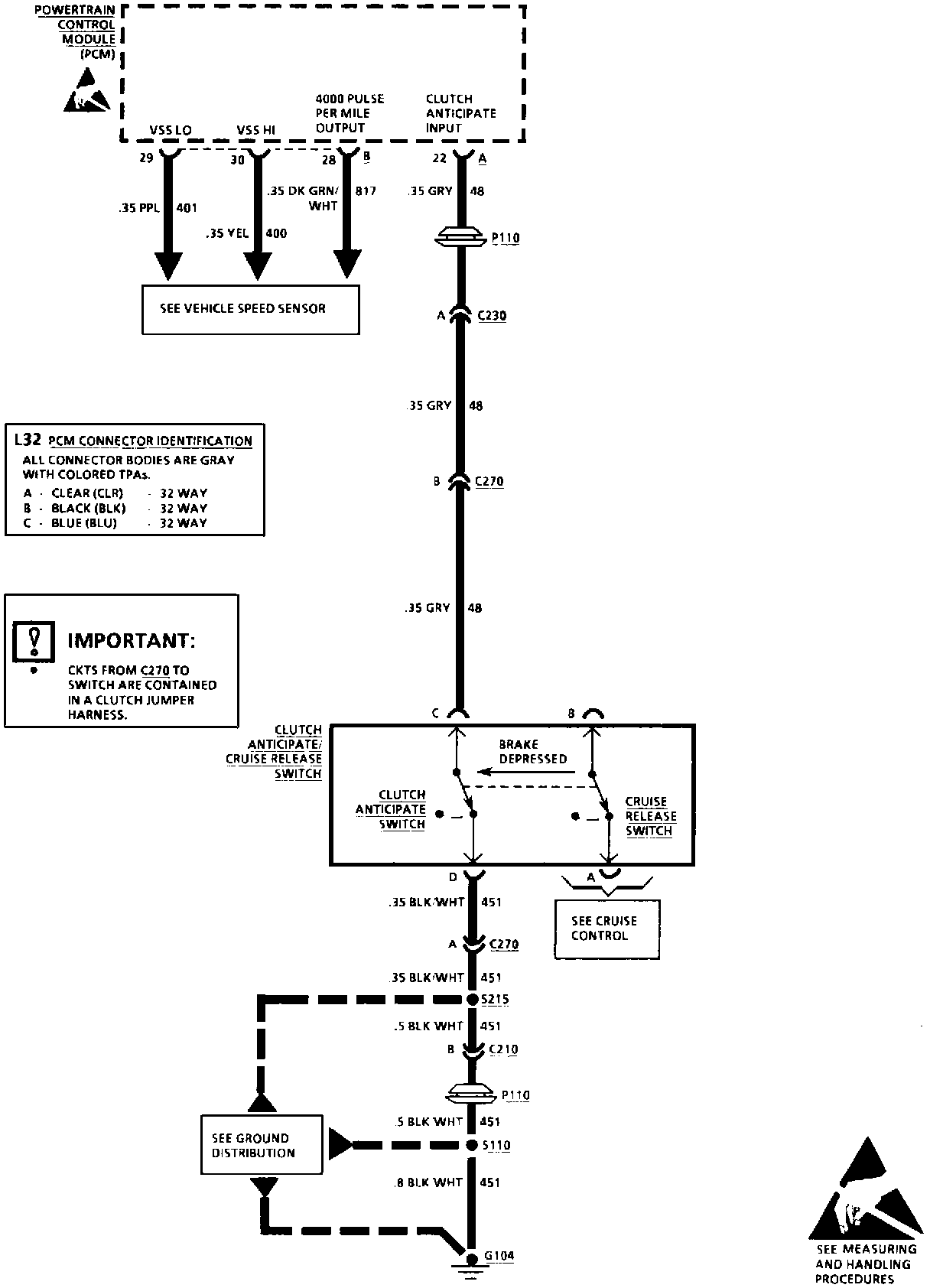

Manual Transmission Controls (MM5) And VSS:
