Wiper Do Not Operate When Washer Switch Is Activated
Wiper Do Not Operate When Washer Switch Is Activated

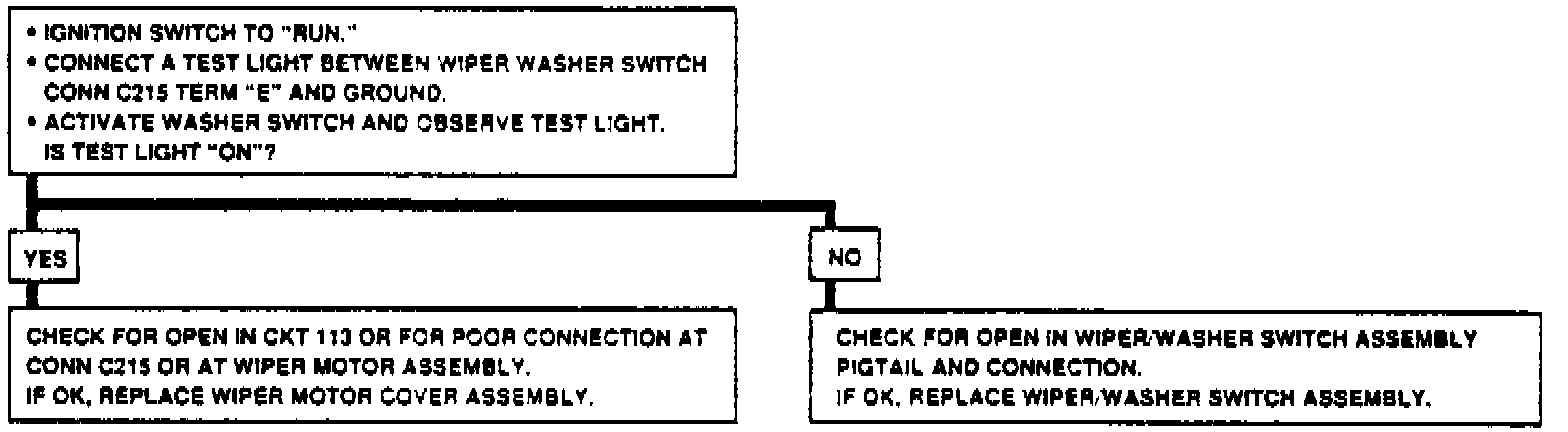

Fig. 38 Test 7: Wipers Do Not Operate When Washer Switch Is Activated.:
