Radio/Stereo
Radio/Stereo

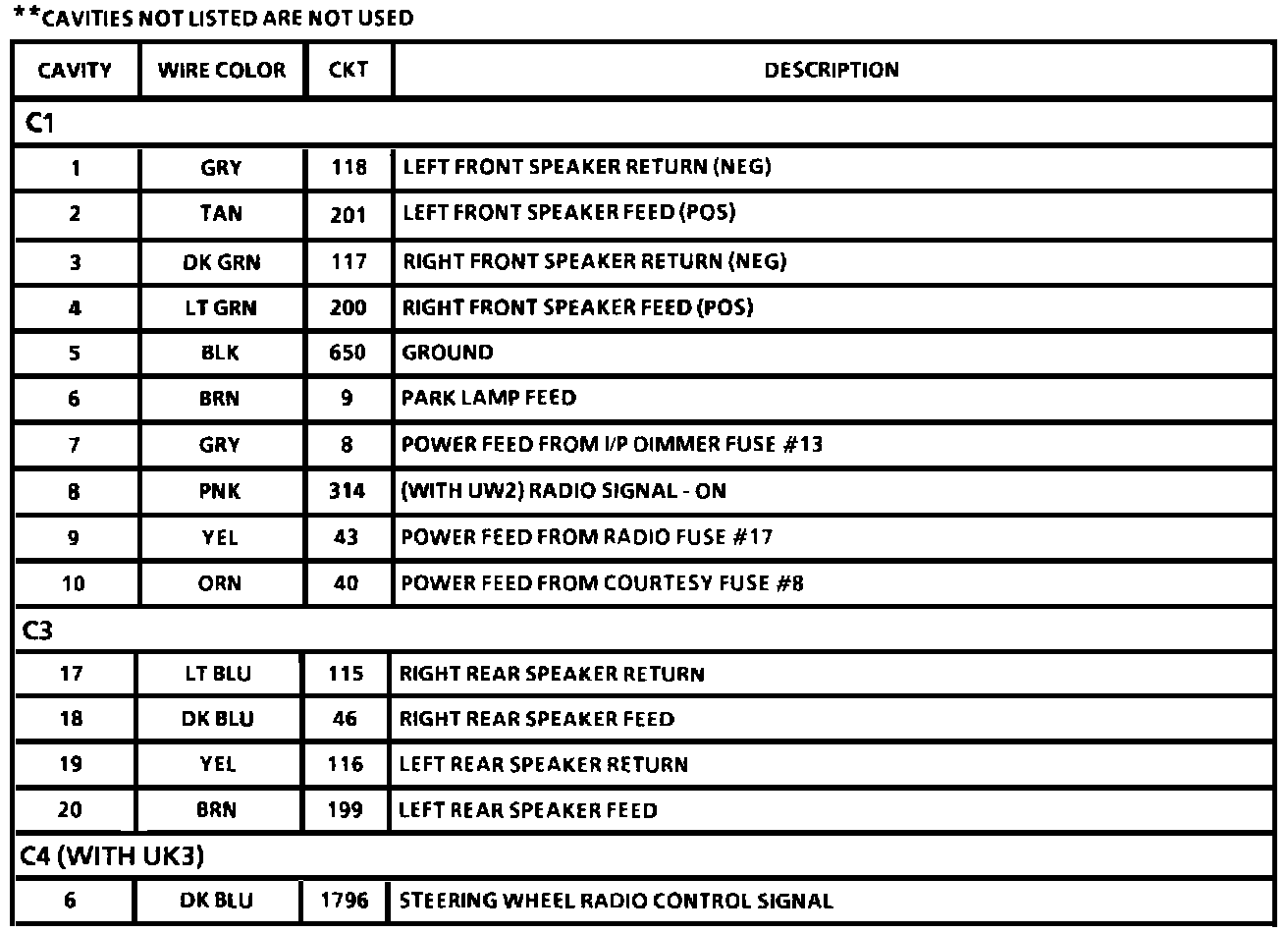

Radio: C1, C3 & C4:
Radio: C1, C3 & C4:
C217: SIR Coil Assembly Harness To I/P Harness Steering Wheel Controls, Radio:
