Generator & A/C Compressor & Steering Pump Bracket Assembly

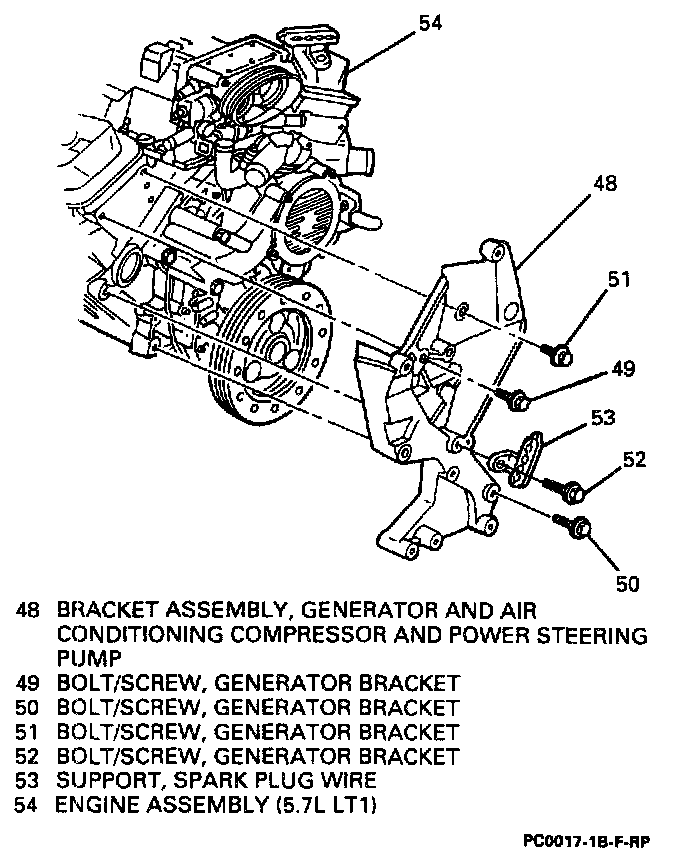

Bracket Assembly:

Remove or Disconnect

1. Generator assembly.
2. Power steering pump assembly.
3. Air conditioning compressor assembly.
4. Bolts/screws (49, 50, 51 and 52).
5. Spark plug wire support (53).
6. Bracket assembly (48).

Install or Connect

1. Bracket assembly (48).
2. Spark plug wire support (53).
3. Bolts/screws (49, 50, 5 1 and 52) loosely.

Tighten
In sequence:
^ Bolt/screw (49) to 33 N.m (24 lb. ft.).
^ Bolt/screw 50) to 33 N.m (24 lb. ft.).
^ Bolt/screw 51) to 33 N.m (24 lb. ft.).
^ Bolt/screw (52) to 33 N.m (24 lb. ft.).

4. Air conditioning compressor assembly.
5. Power steering pump assembly.
6. Generator assembly
7. Bleed power steering system.
8. Charge A/C system.
9. Leak-test A/C fitting at rear of compressor assembly.
