Chart #15 Fuse(s) Blows When Replaced
Chart #15 Fuse(s) Blows When Replaced

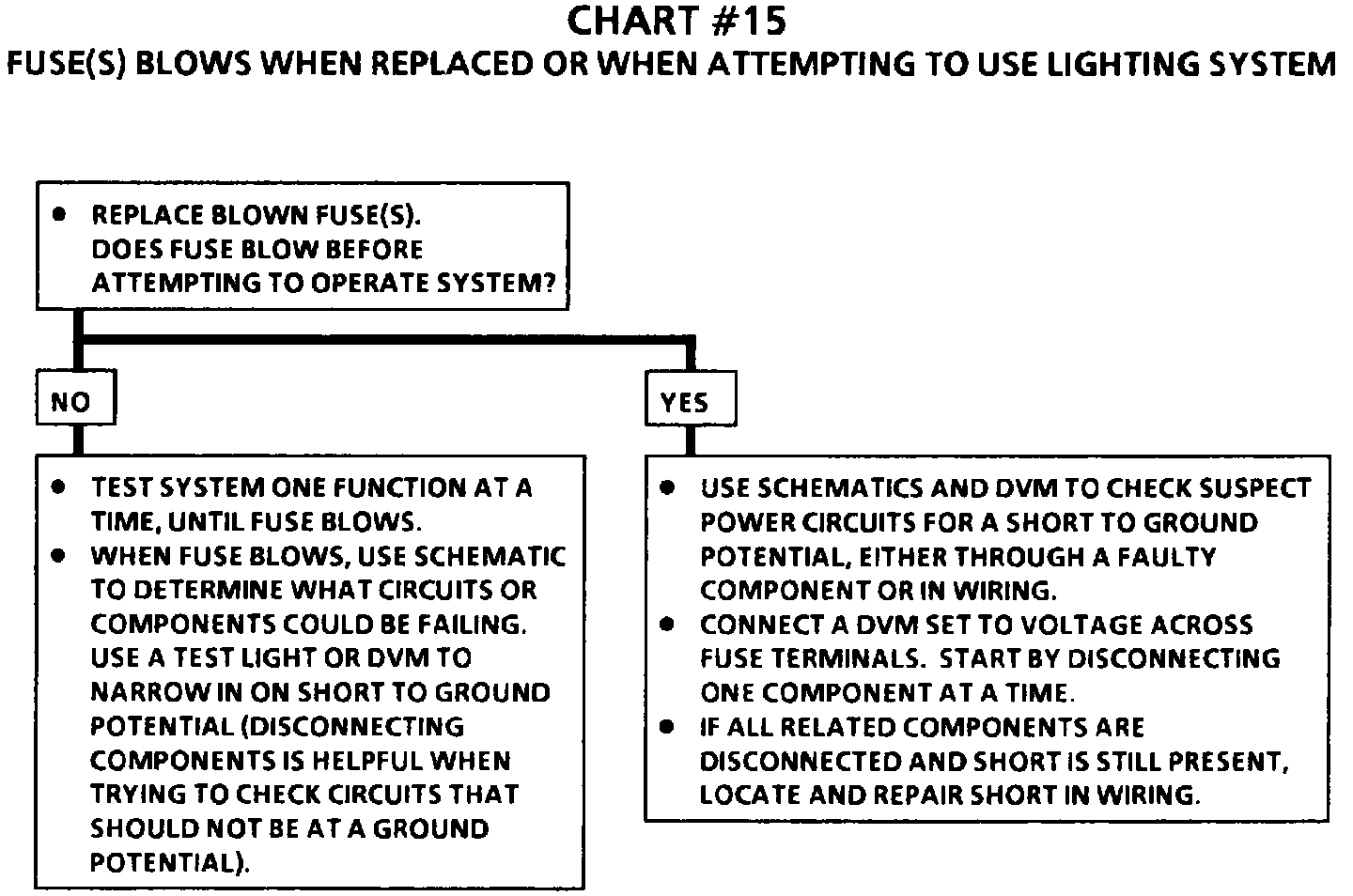

Chart #15 Fuse(S) Blows When Replaced Or When Attempting To Use Lighting System:
