Secondary Air Injection Pump & Relay
Secondary Air Injection Pump & Relay

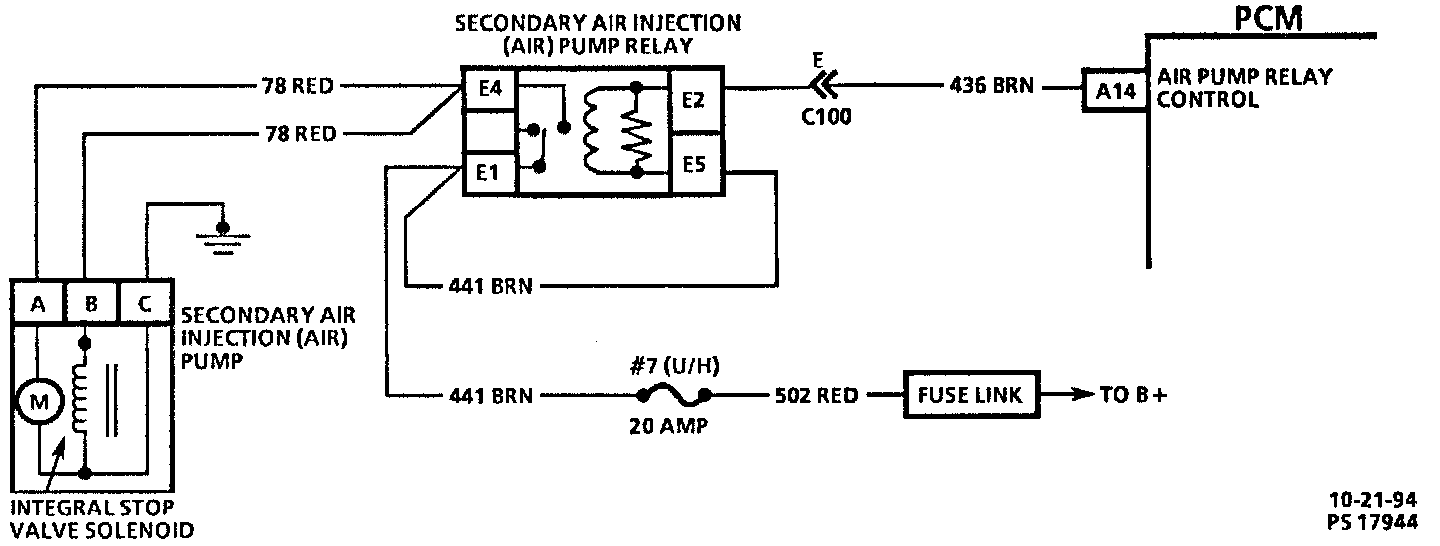

Secondary Air Injection Pump Circuit:
