Fuel System Pressure Relief Procedure
Fuel System Pressure Relief Procedure

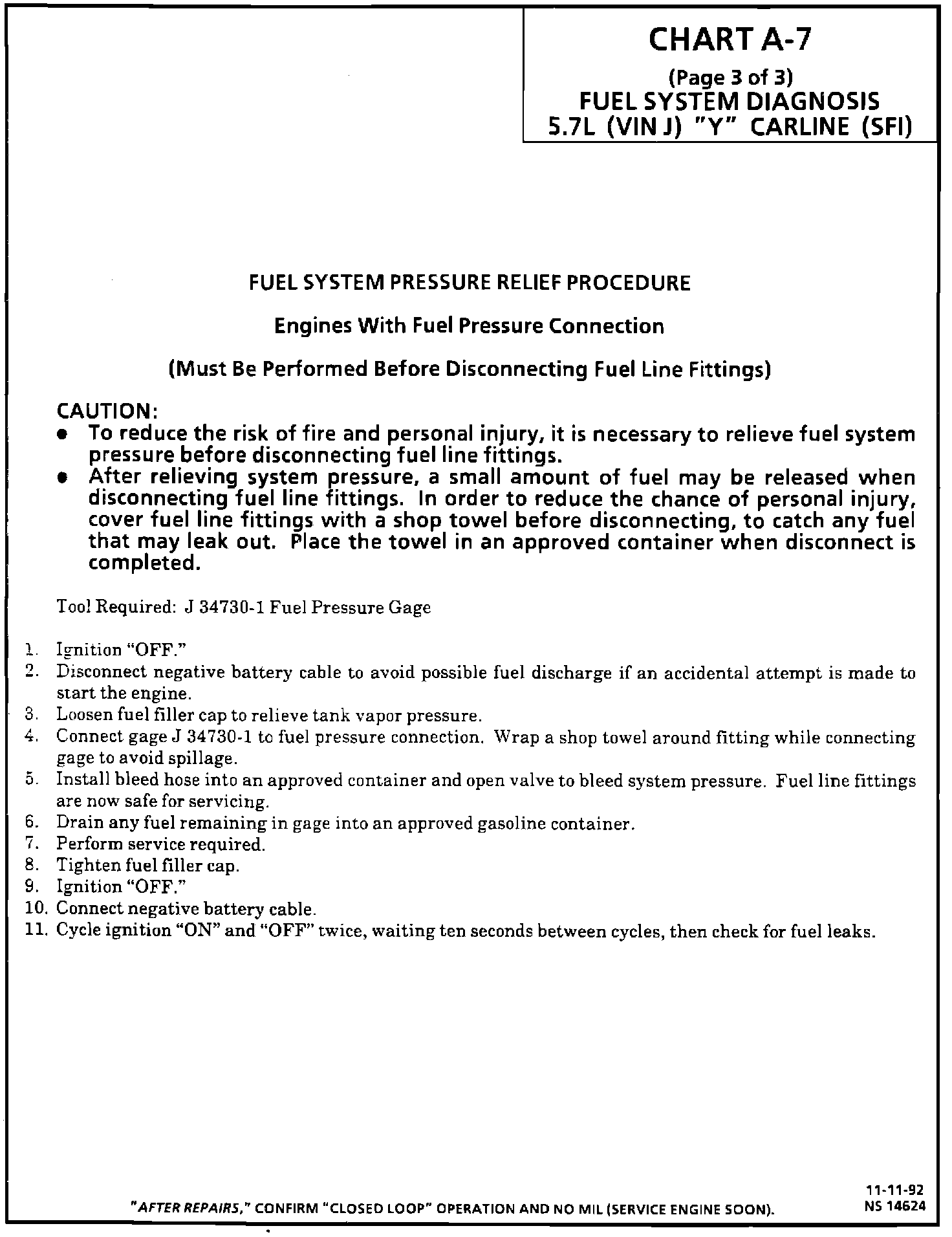

Chart A-7, Fuel System Diagnosis (3 Of 3):
