Servicing Quick-Connect Fittings
Servicing Quick-Connect Fittings

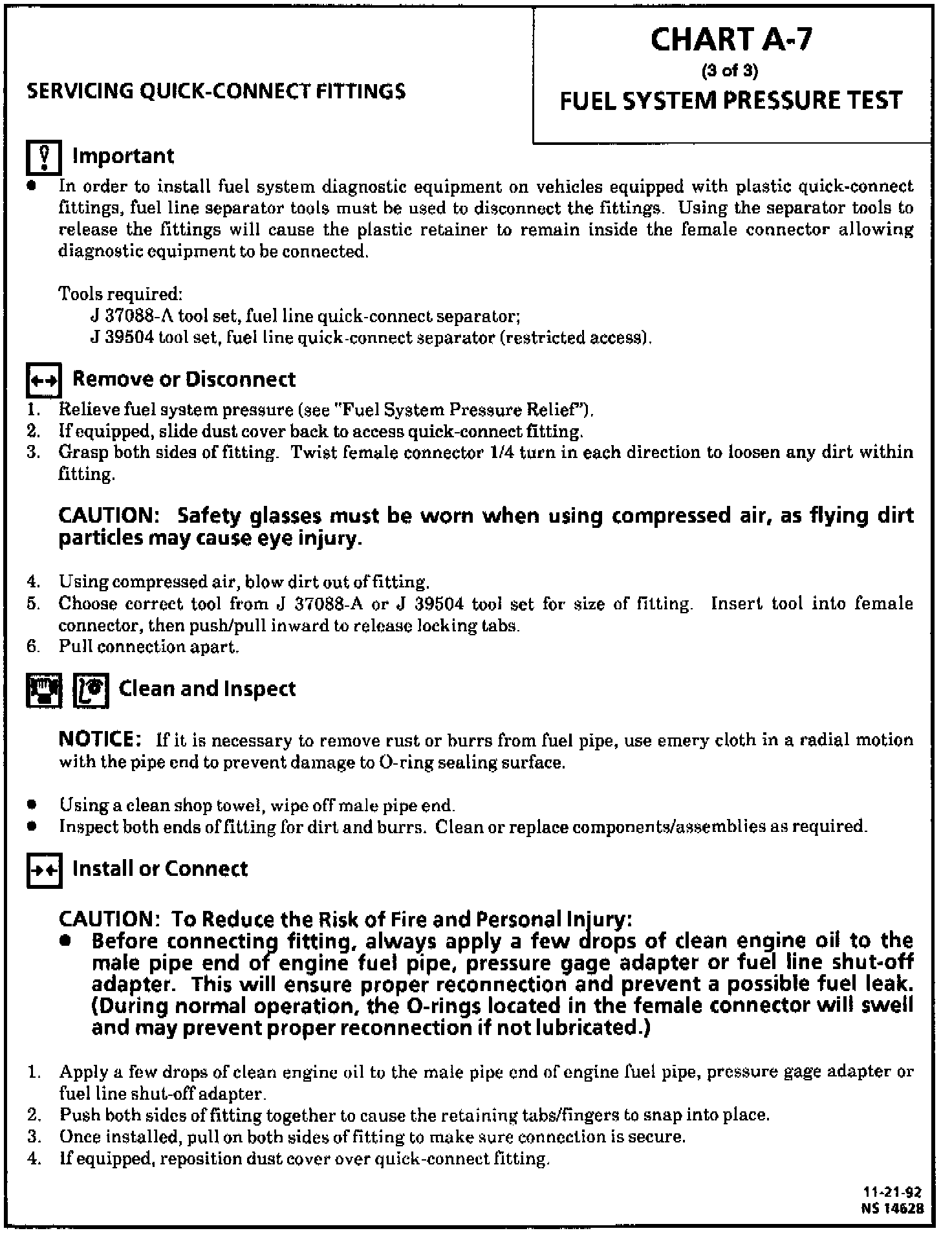

Chart A7: Fuel System Pressure Test - Part 3 Of 3:
