Chart 2 PWR. Door Locks Oper. From Only One Front Door Lock SW.
Chart 2 PWR. Door Locks Oper. From Only One Front Door Lock SW.

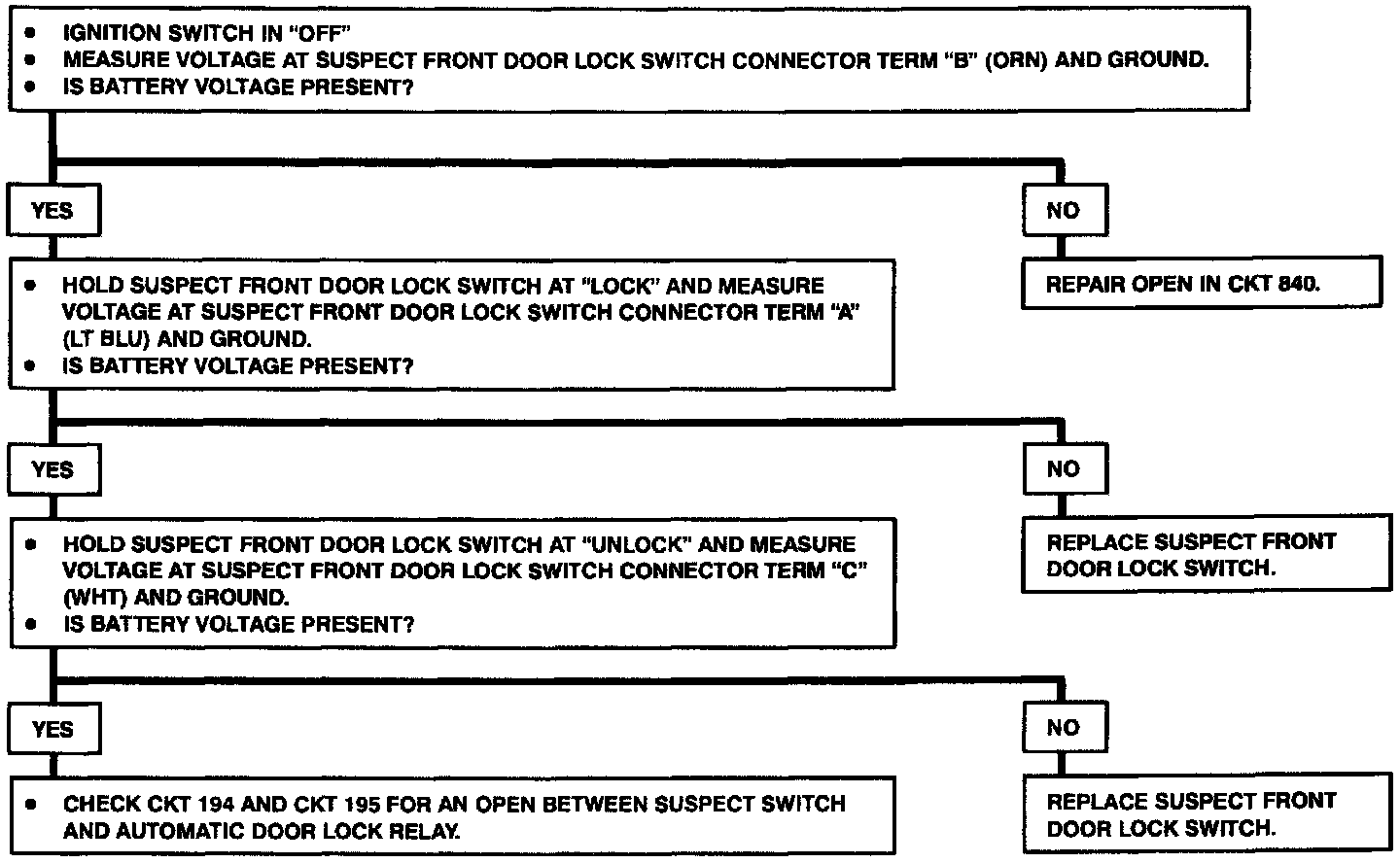

Chart 2: Power Door Locks Operate From Only One Front Door Lock Switch:
