Daytime Running Lamp

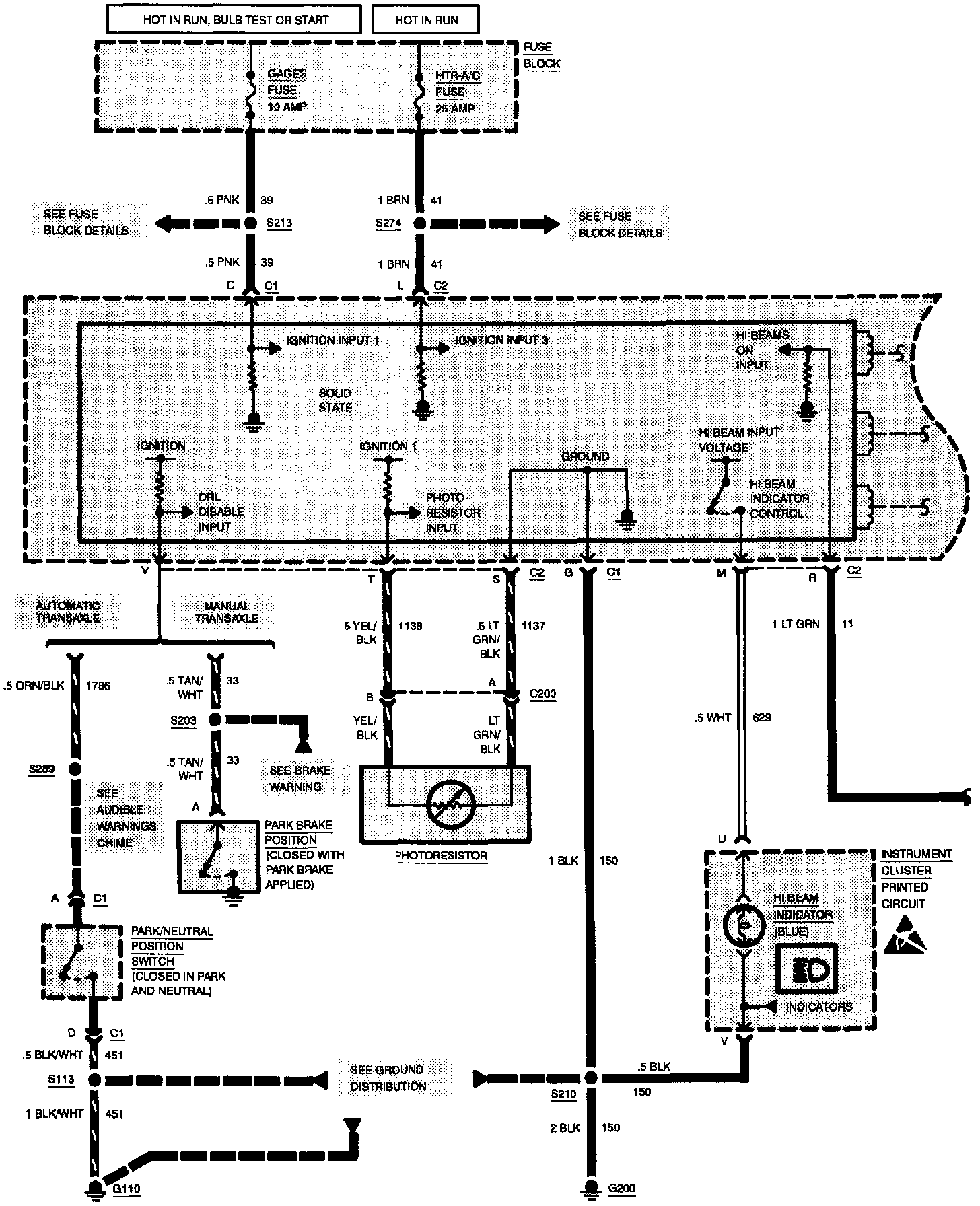

Wiring Diagram: Headlights With Daytime Running Lights (T61):

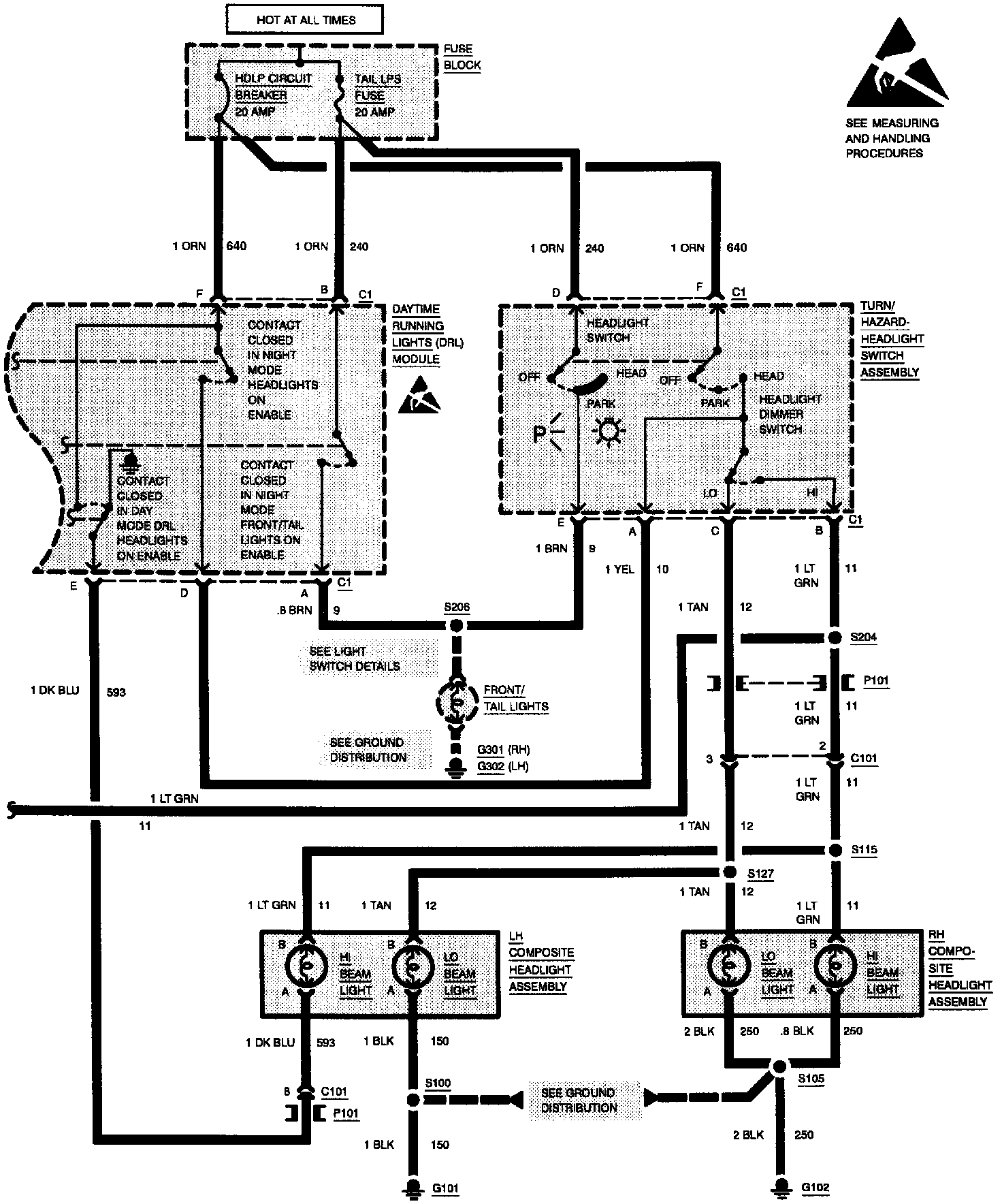

Wiring Diagram: Headlights With Daytime Running Lights (T61):

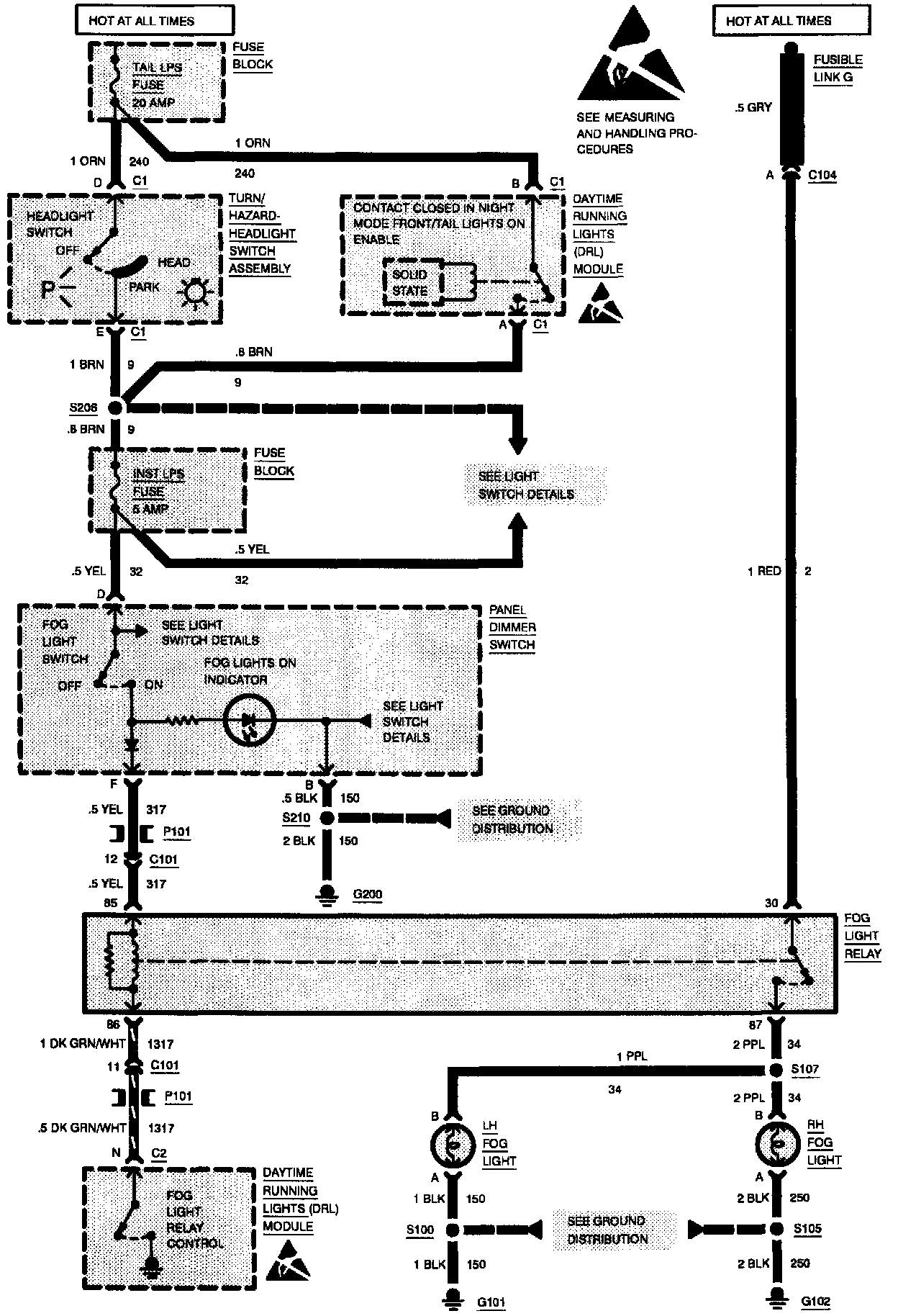

Wiring Diagram: Headlights With Daytime Running Lights And Fog Lights (T61):
