Base Cluster

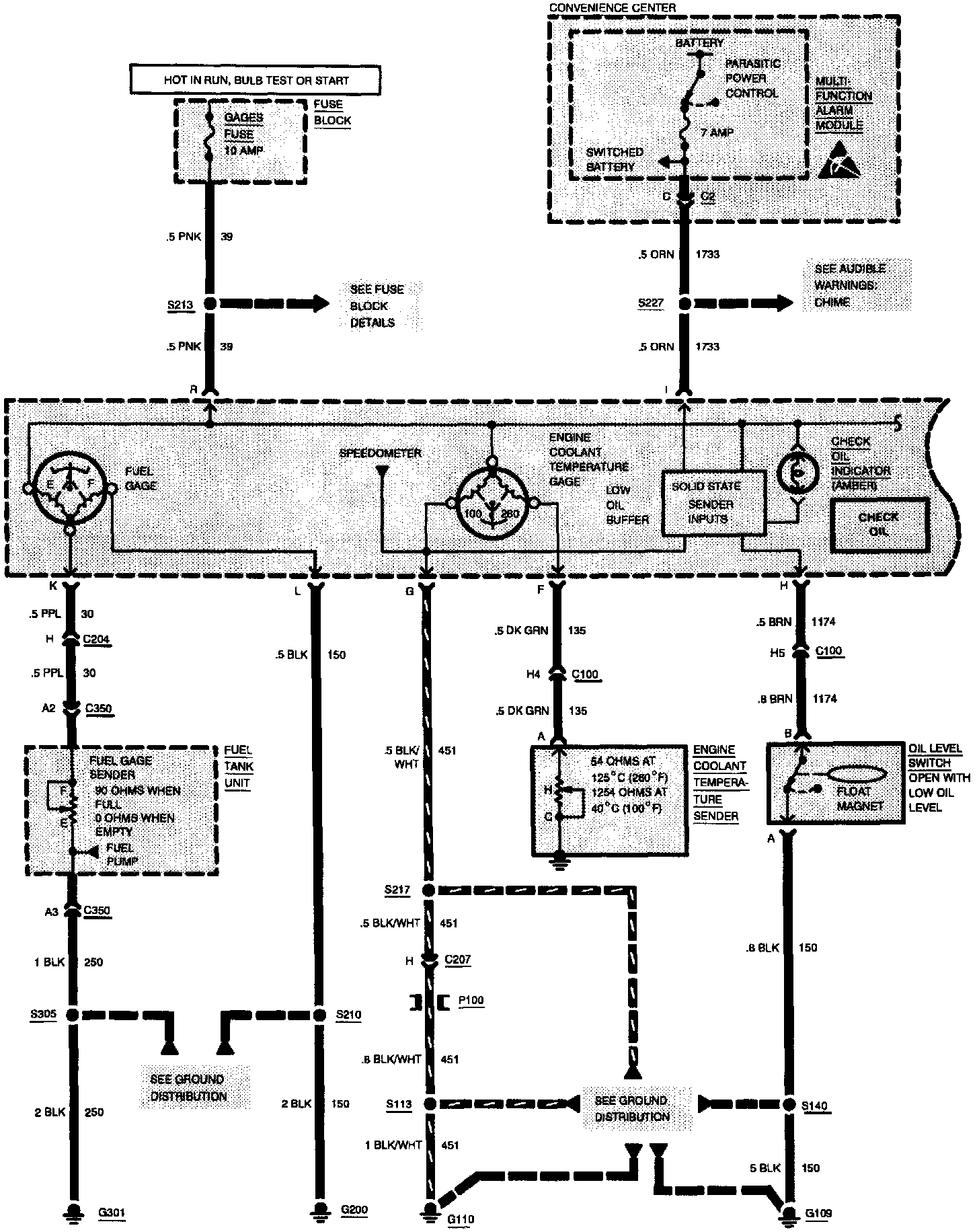

Wiring Diagram: Instrument Panel Base Cluster:




Part 1 Of 4

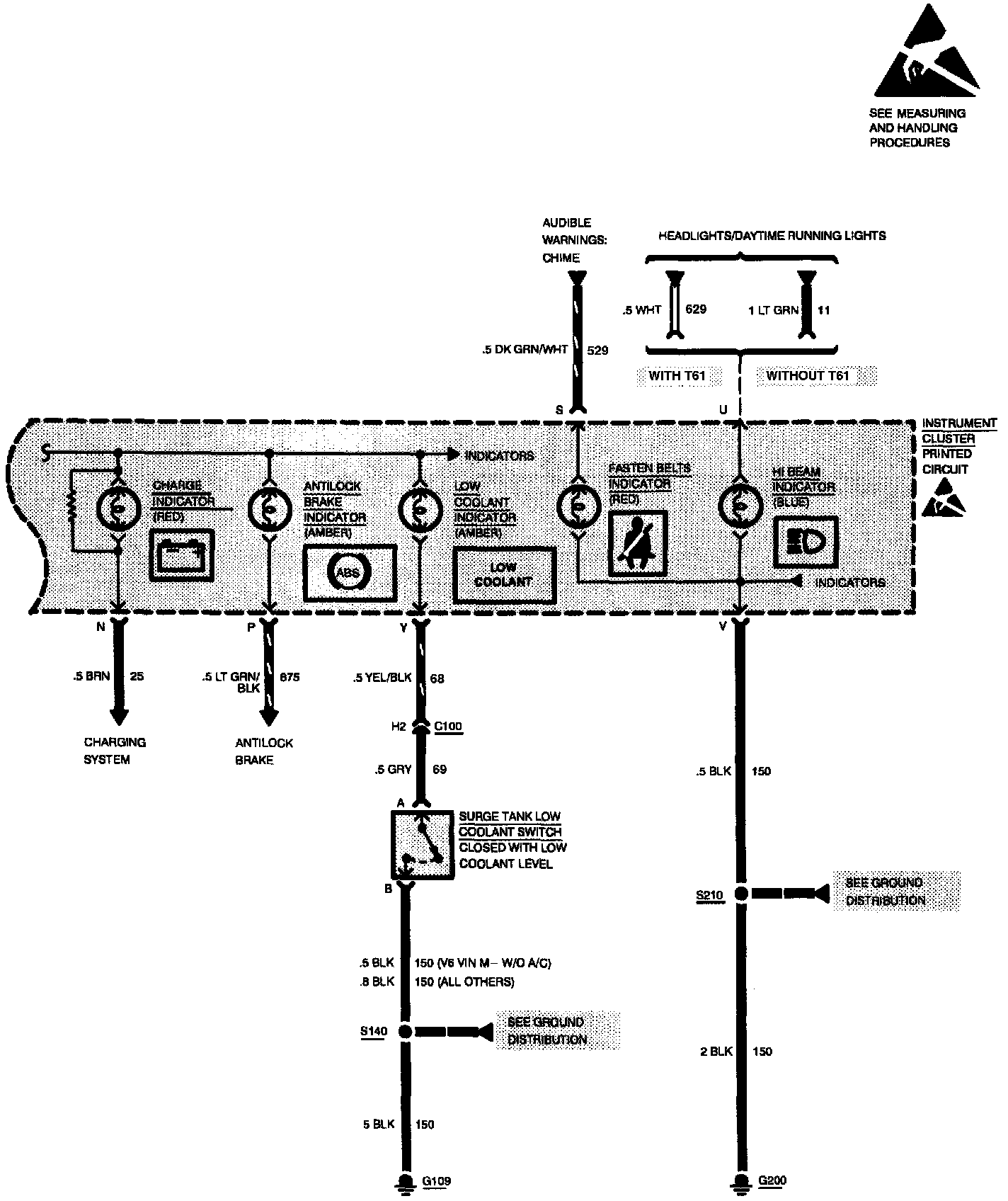

Wiring Diagram: Instrument Panel Base Cluster:




Part 2 Of 4

Wiring Diagram: Instrument Panel Base Cluster:




Part 3 Of 4

Wiring Diagram: Instrument Panel Base Cluster:




Part 4 Of 4
