Data Link Connector (DLC)

*** THIS ARTICLE INCLUDES UPDATES MADE BY TSB #438113A DATED DECEMBER 1994

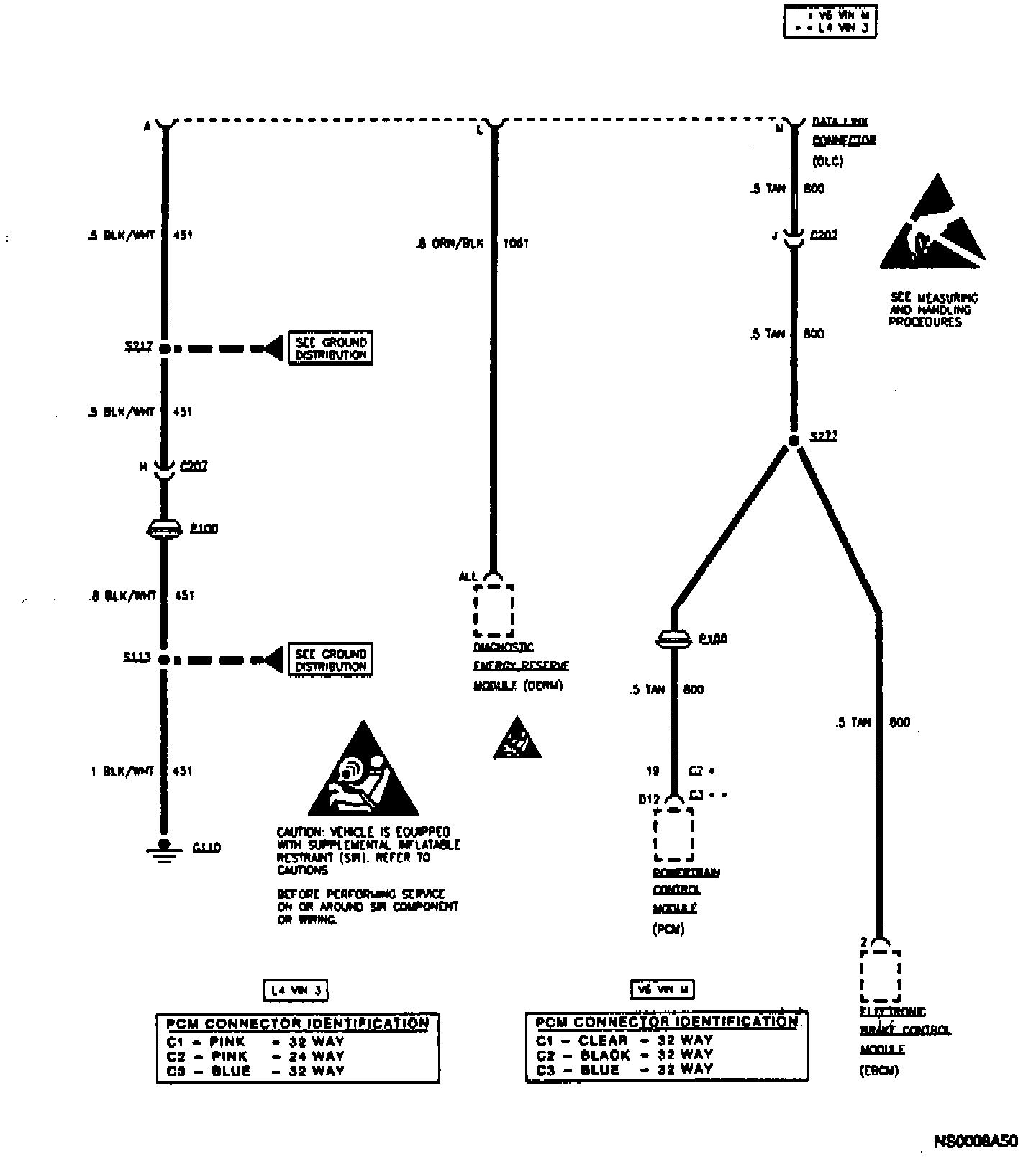

Data Link Connector:
