Keyless Entry

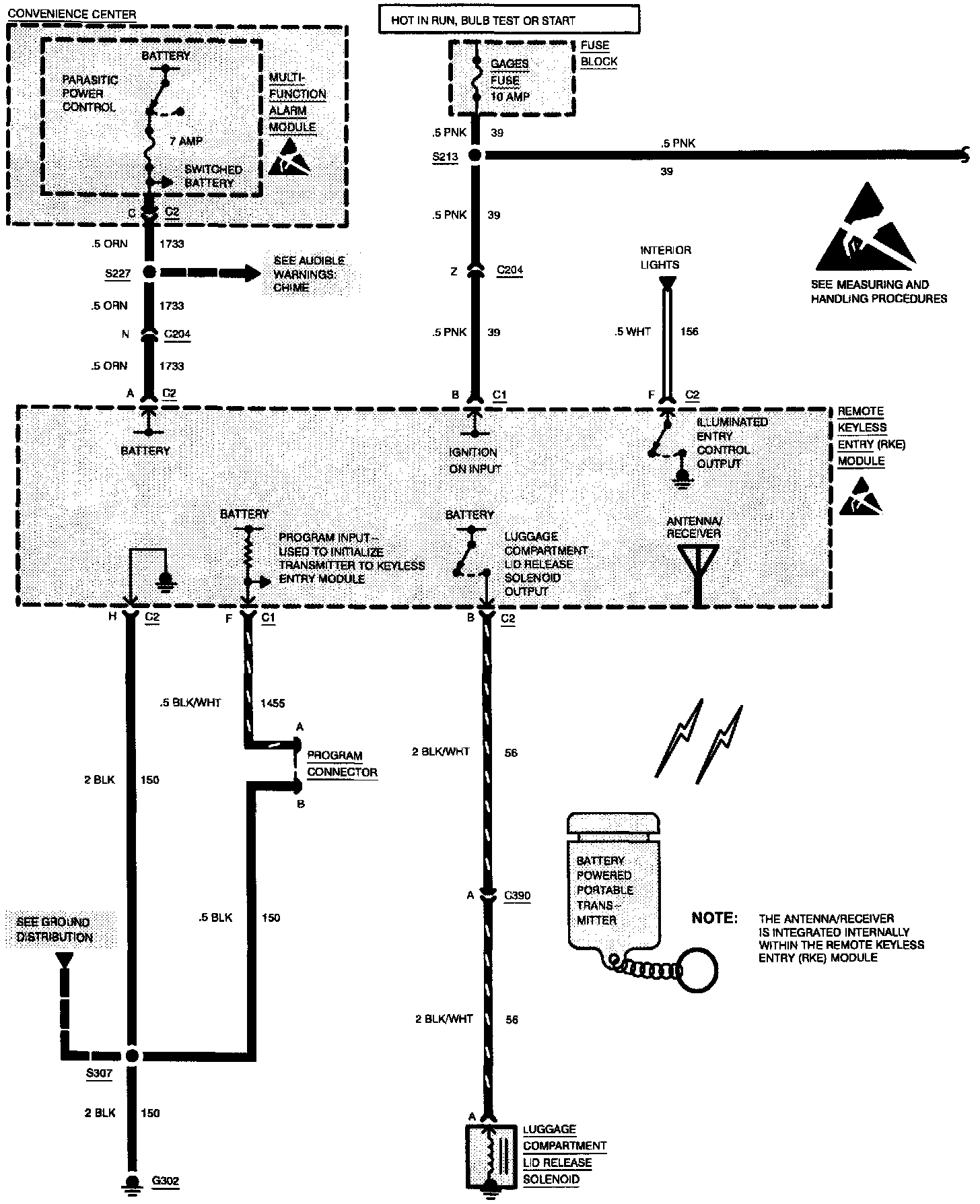

Wiring Diagram: Keyless Entry:




Part 1 Of 4

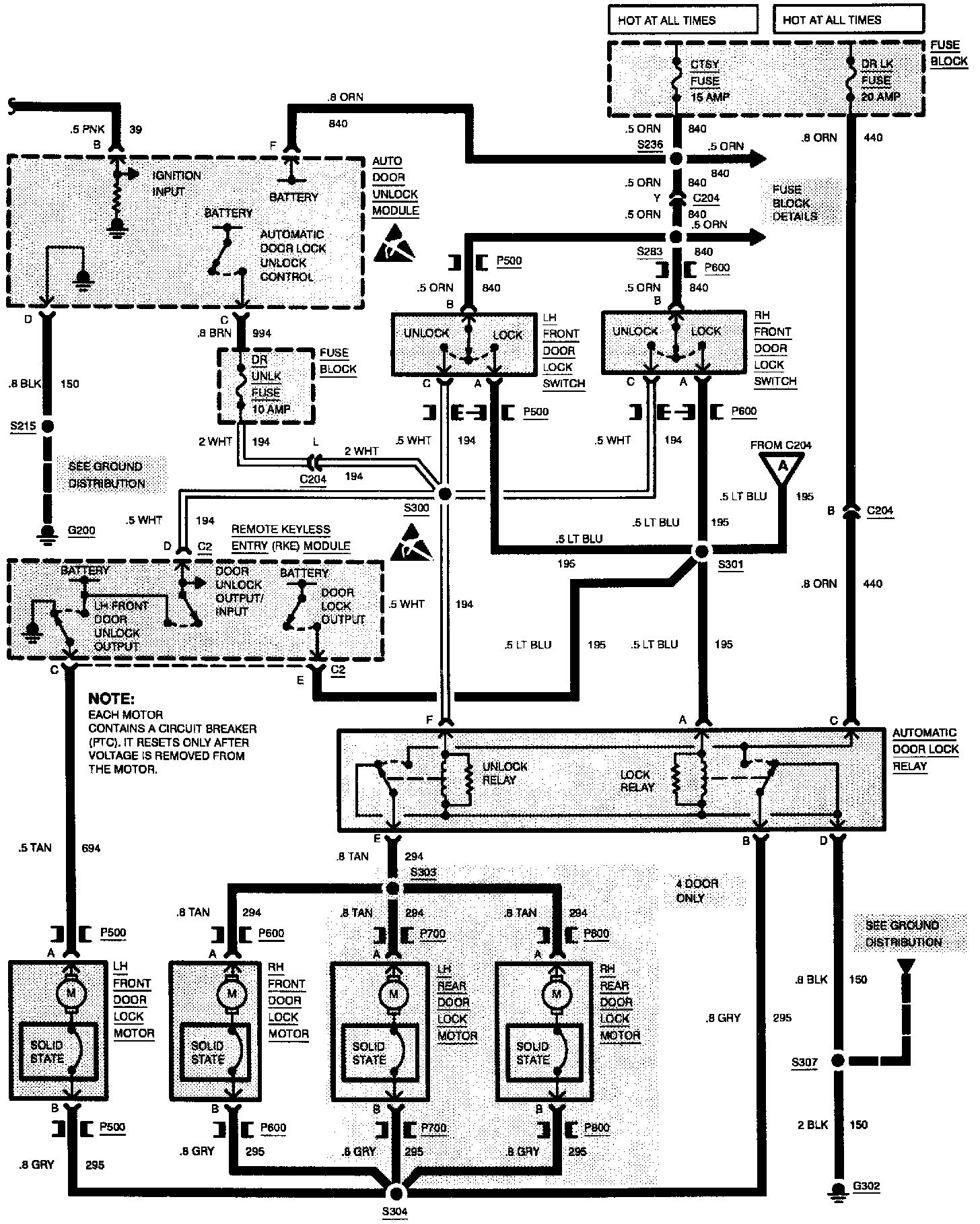

Wiring Diagram: Keyless Entry:




Part 2 Of 4

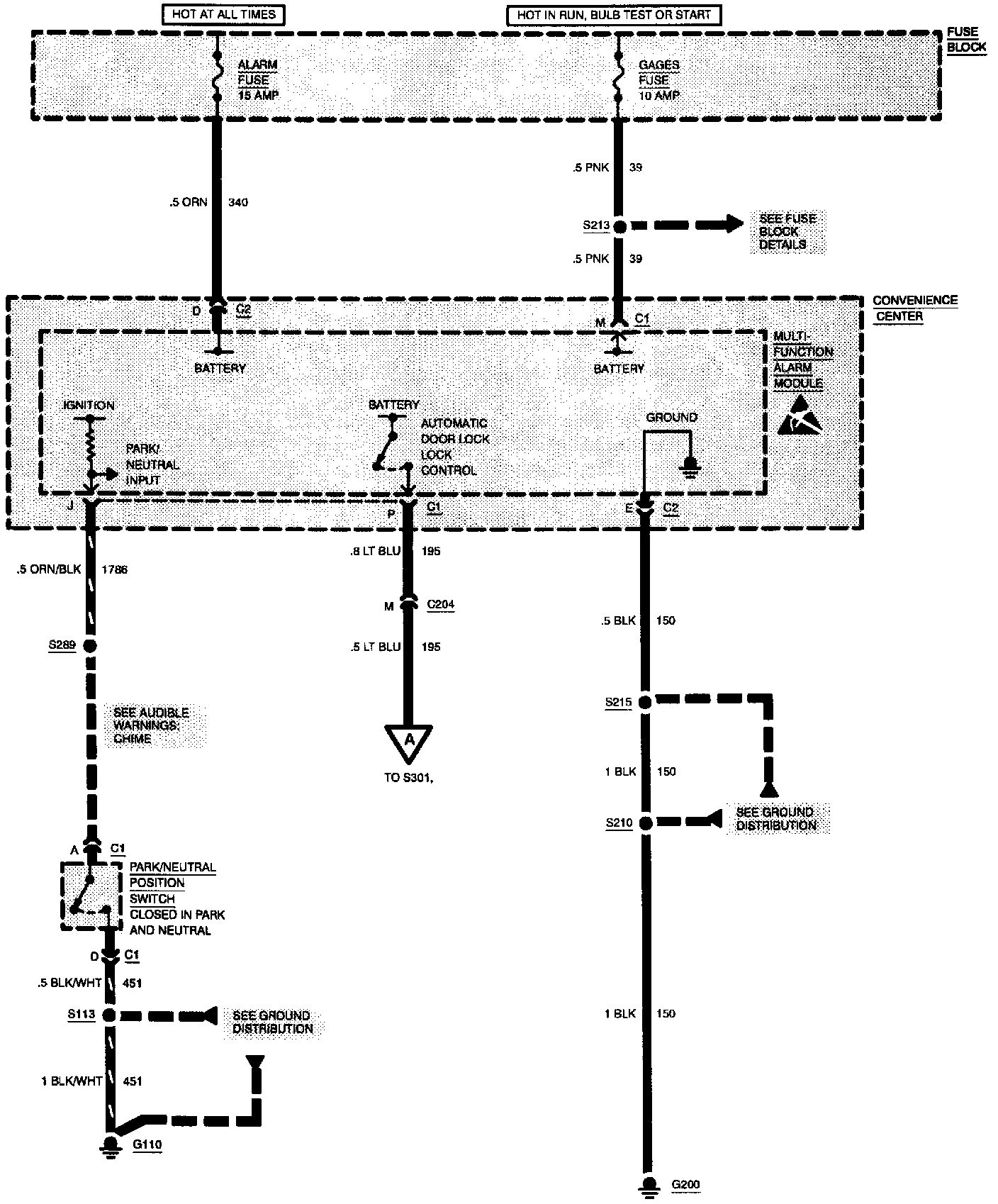

Wiring Diagram: Keyless Entry:




Part 3 Of 4

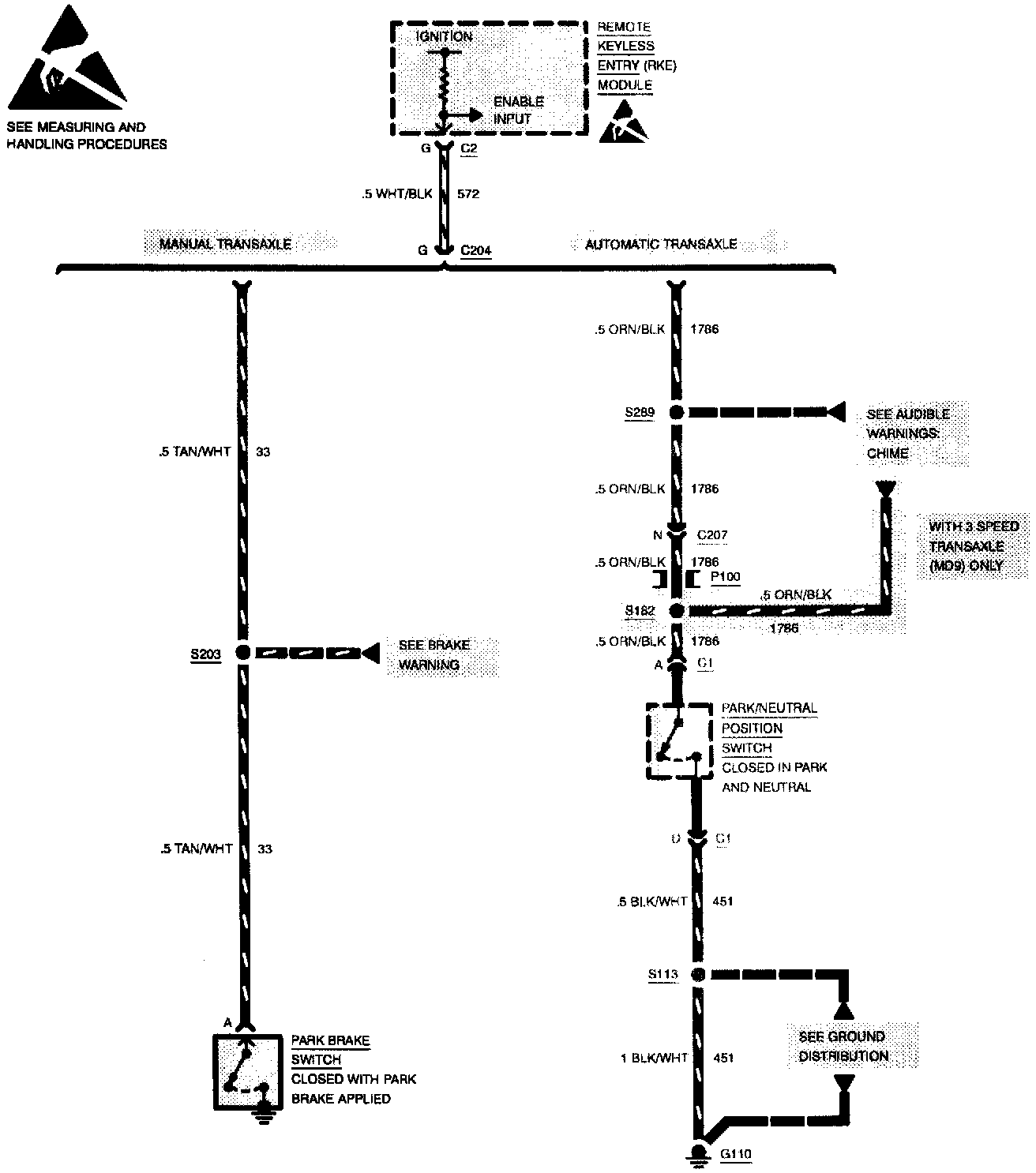

Wiring Diagram: Keyless Entry:




Part 4 Of 4
