Ground Distribution G104, G109, G100, G110, G111

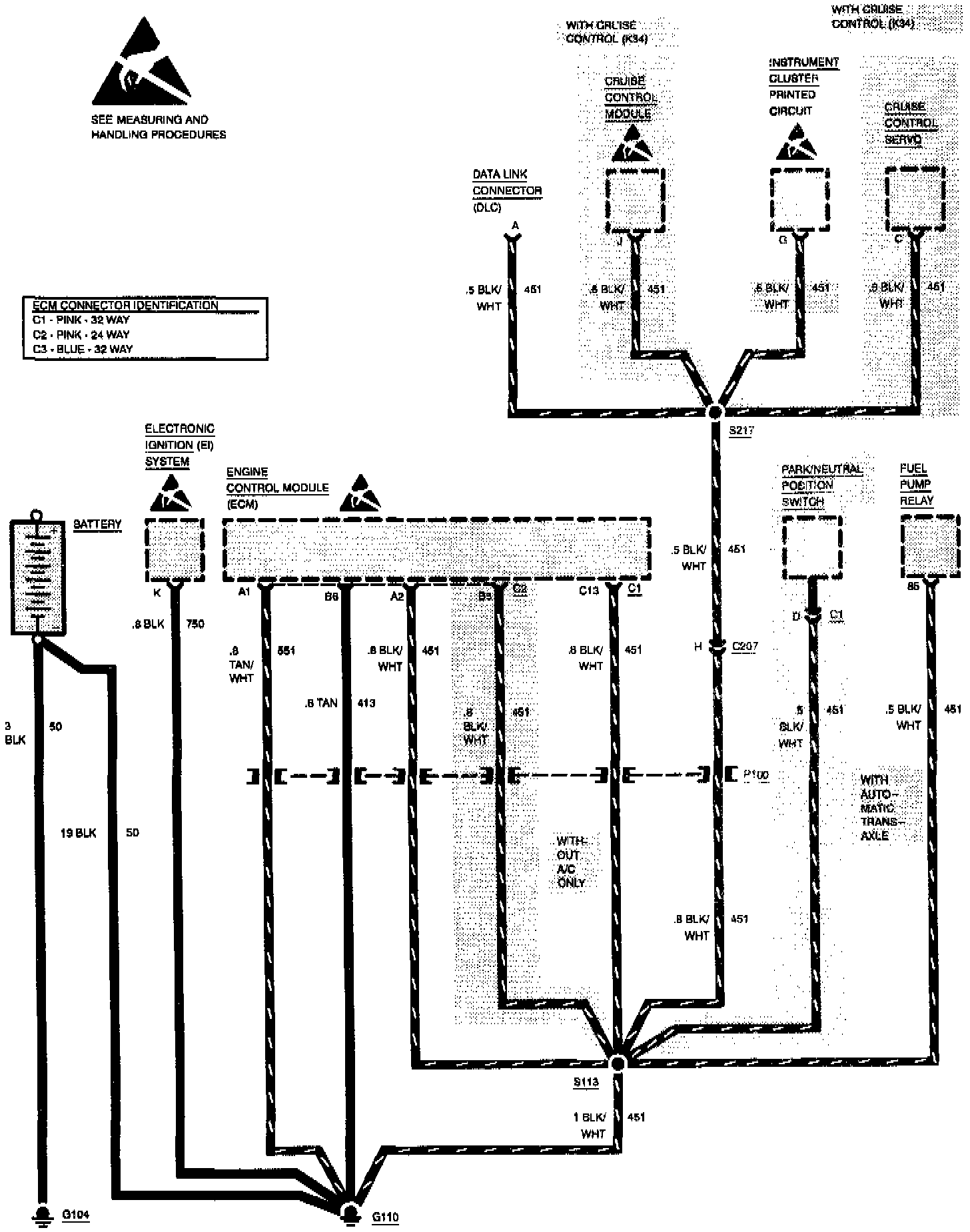

Ground Distribution: G104 And G110:

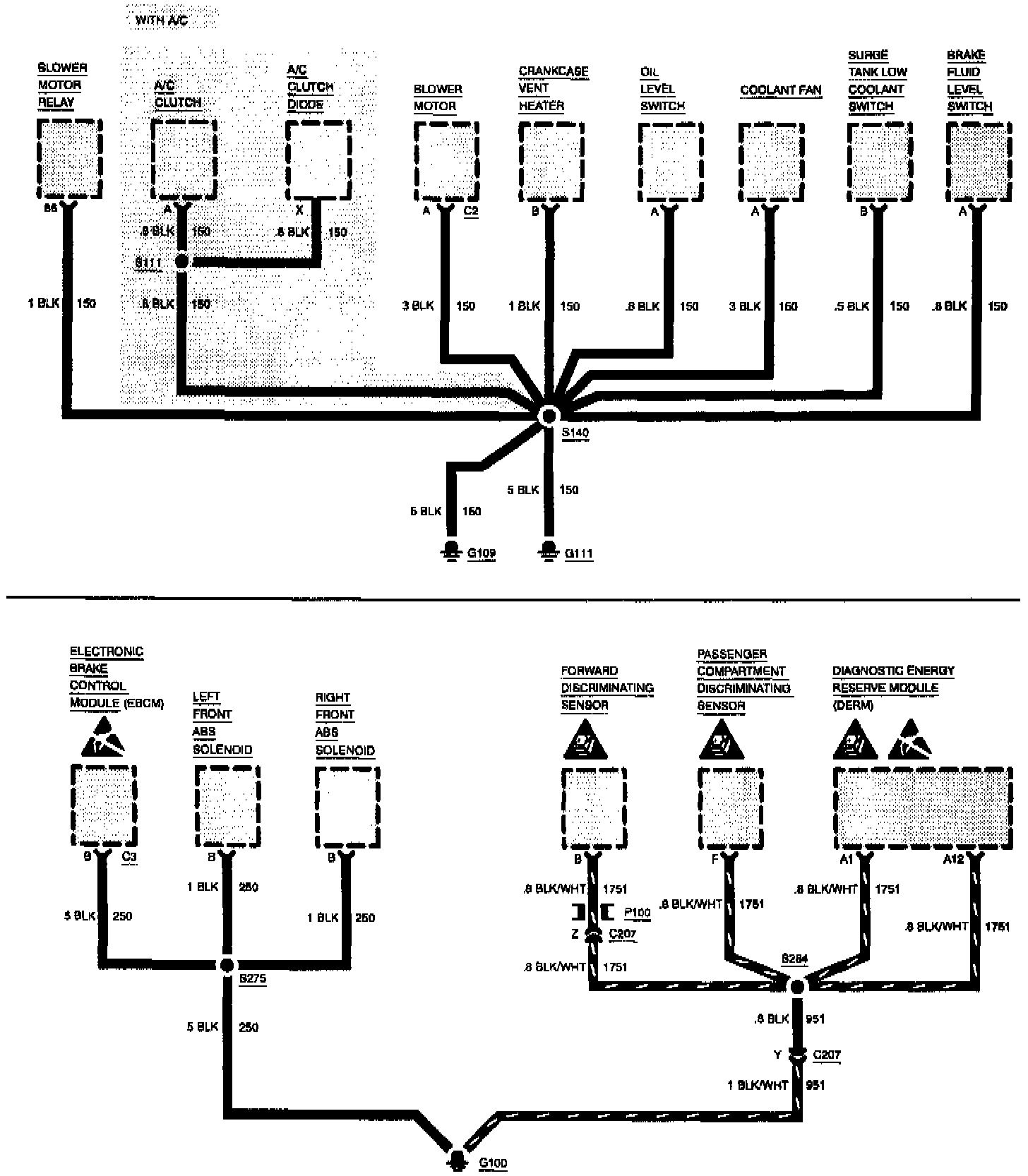

Ground Distribution: G100, G109, And G111:
