Pontiac
>>
1994
>>
Grand Prix V6-204 3.4L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>

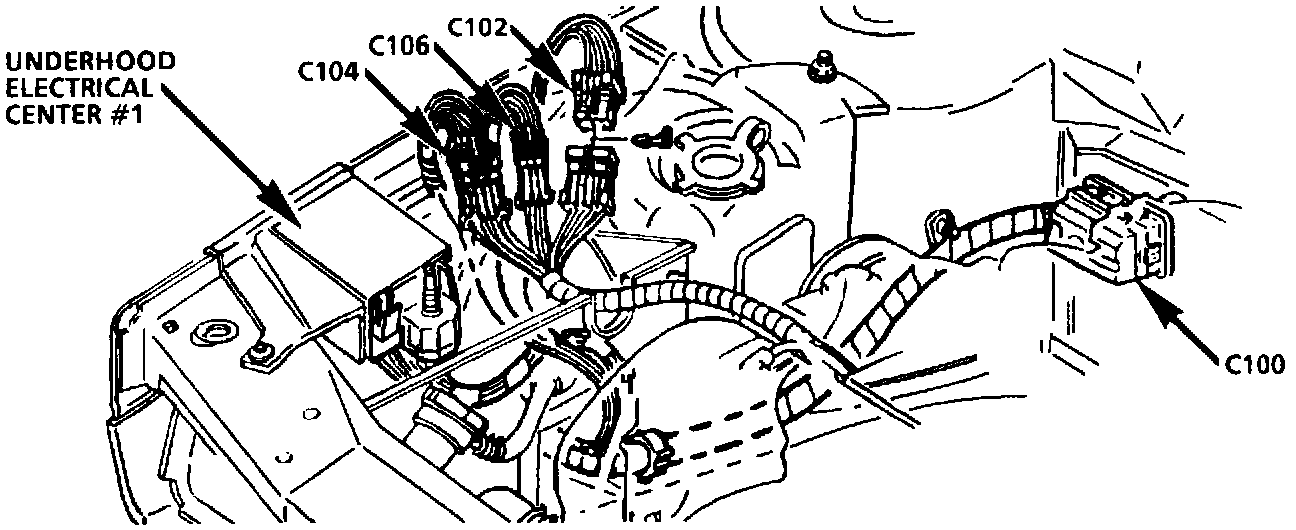

Underhood Electrical Center #1 & #2
Underhood Electrical Center #1 & #2
RH Side Of Engine Compartment:
