Home >> Pontiac >> 1994 >> Grand Prix V6-204 3.4L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Systems >> Air Bag Control Module

Air Bag Control Module

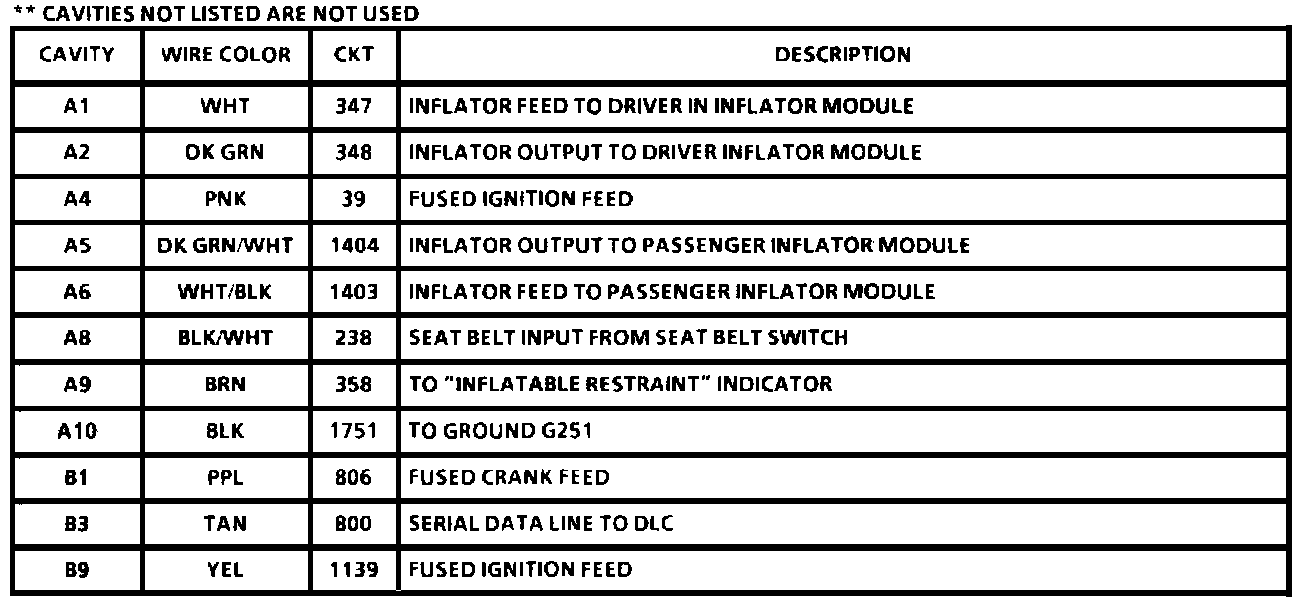

Sensing And Diagnostic Module (SDM):



Sensing And Diagnostic Module (SDM):
