Amplifier, Sound System
Amplifier, Sound System

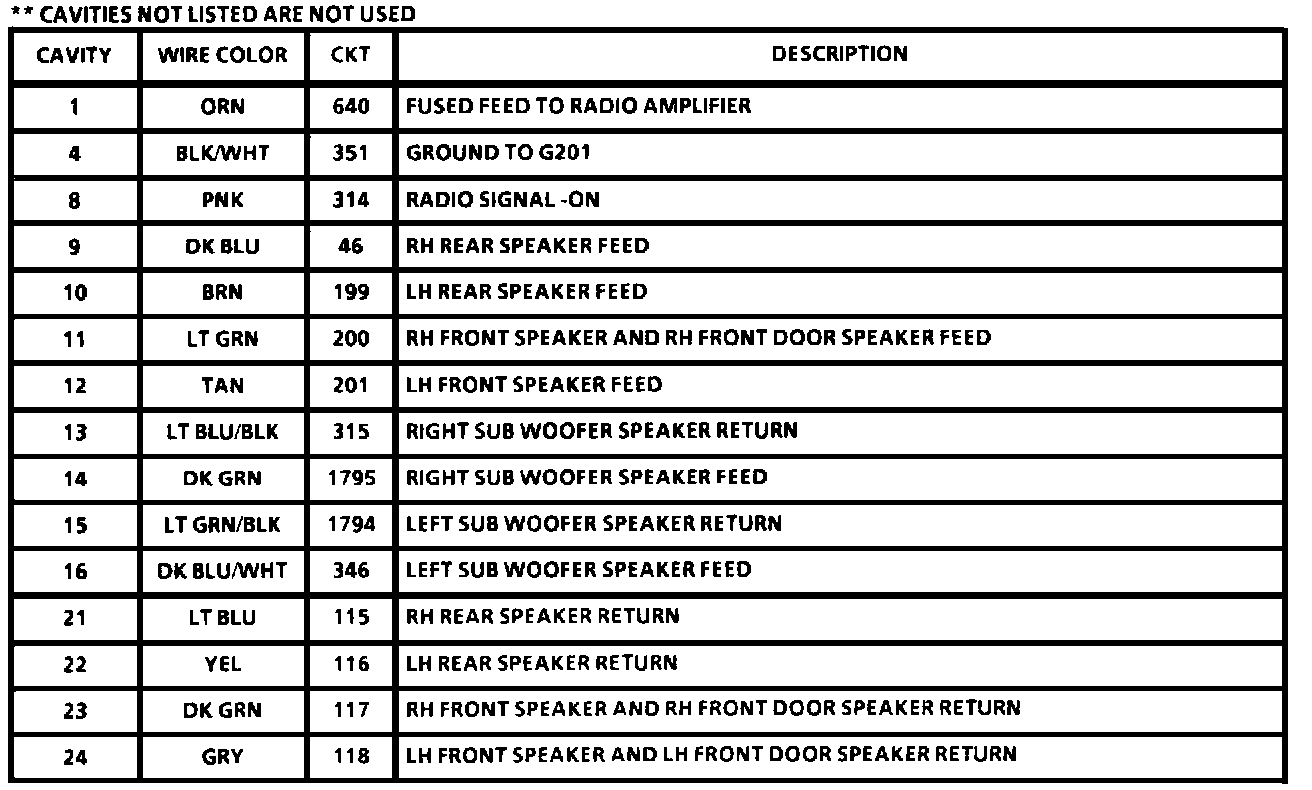

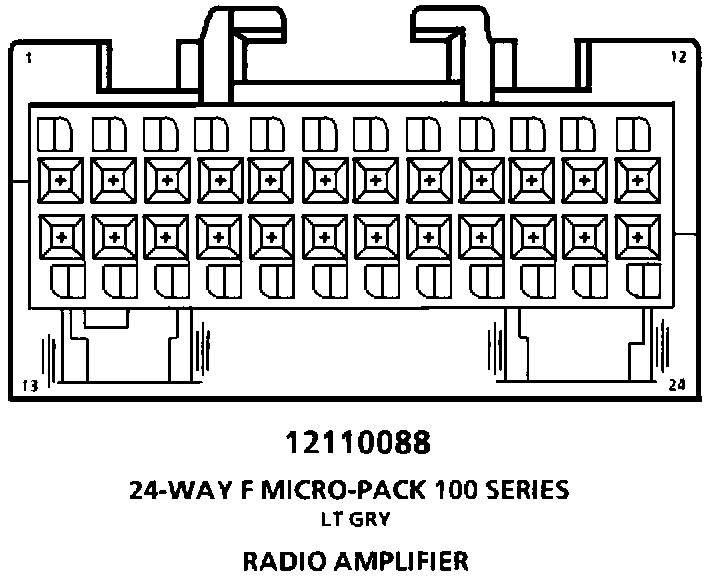

Radio Amplifier:
Radio Amplifier:

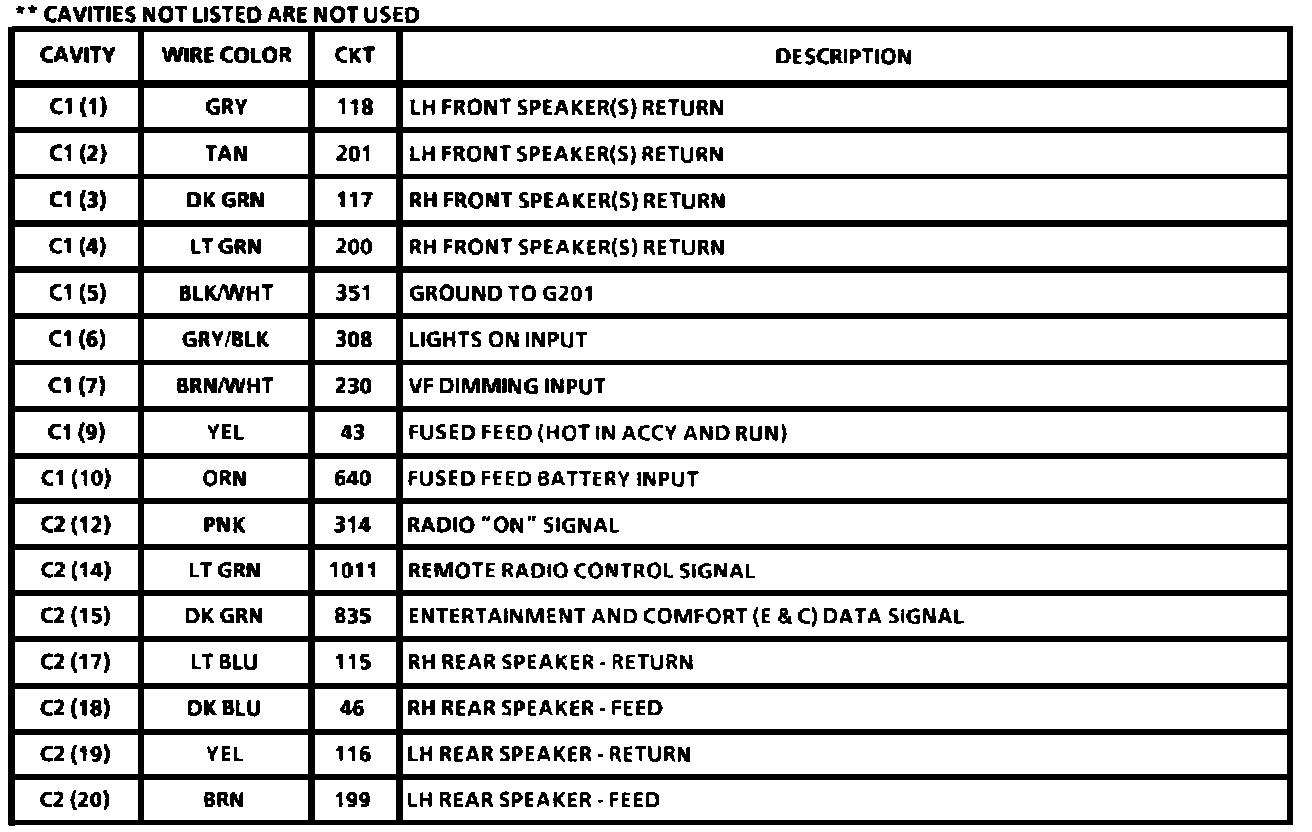

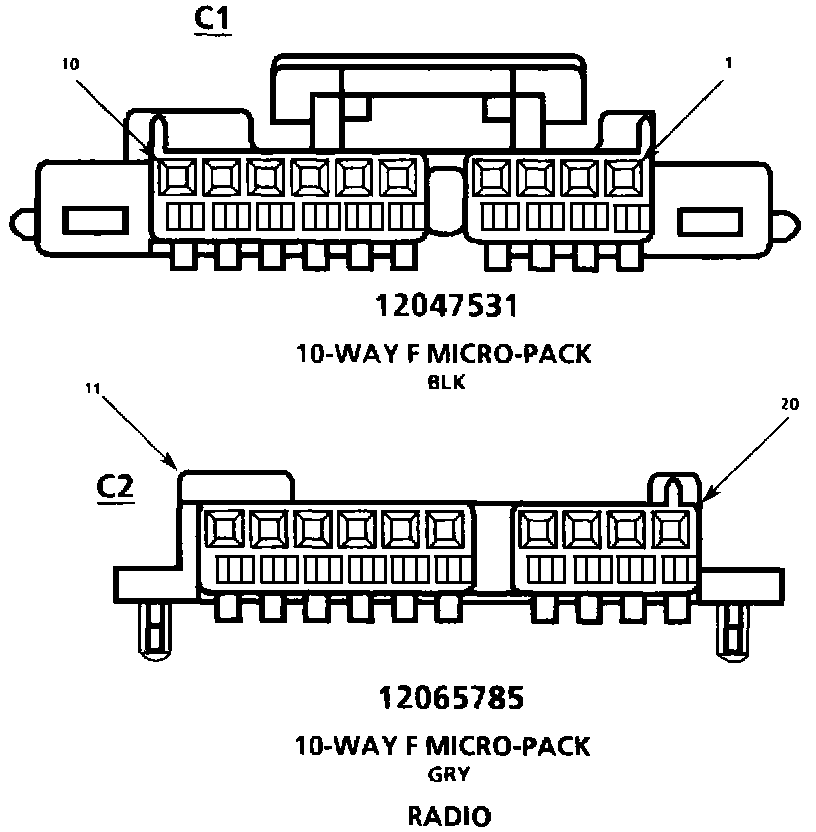

Radio: C1 & C2:
Radio: C1 & C2:
