Pontiac
>>
1994
>>
Grand Prix V6-204 3.4L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Steering Column
>>
Pinout Description
Pinout Description

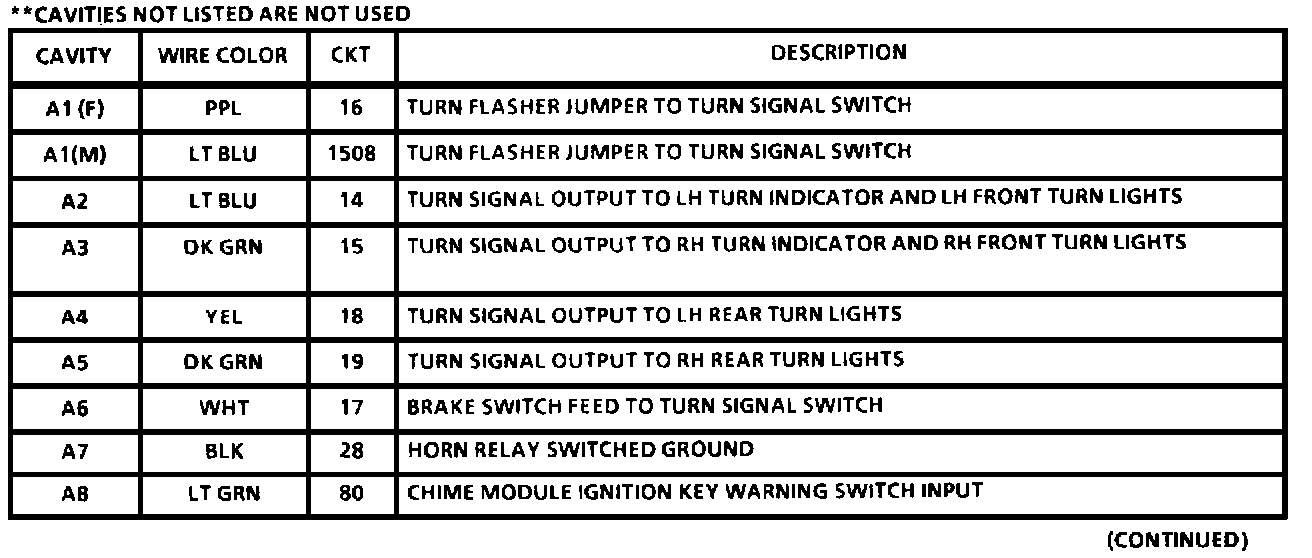

C202: I/P Harness To Steering Column Harness (Part 1 Of 2):

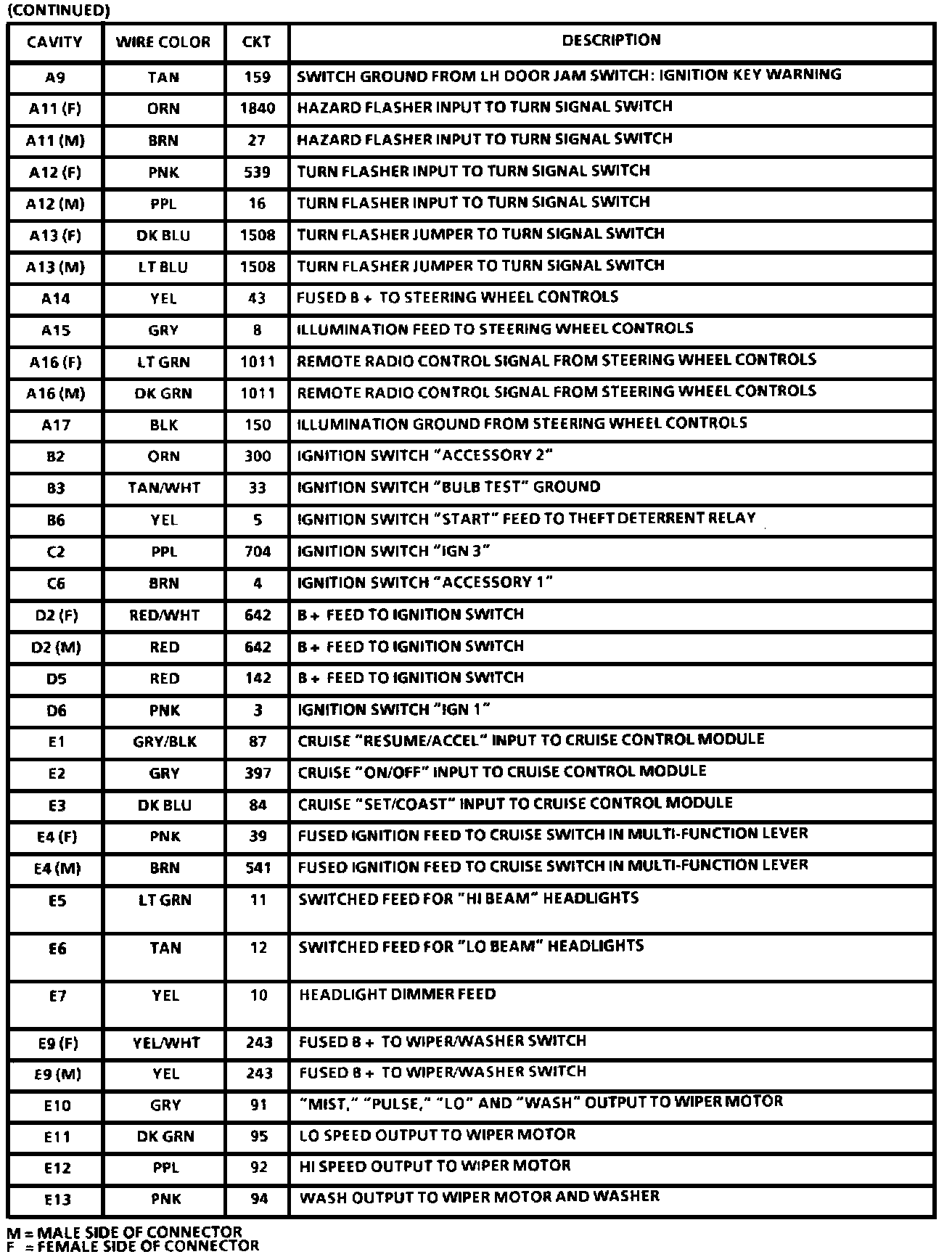

C202: I/P Harness To Steering Column Harness (Part 2 Of 2):
