System Diagram

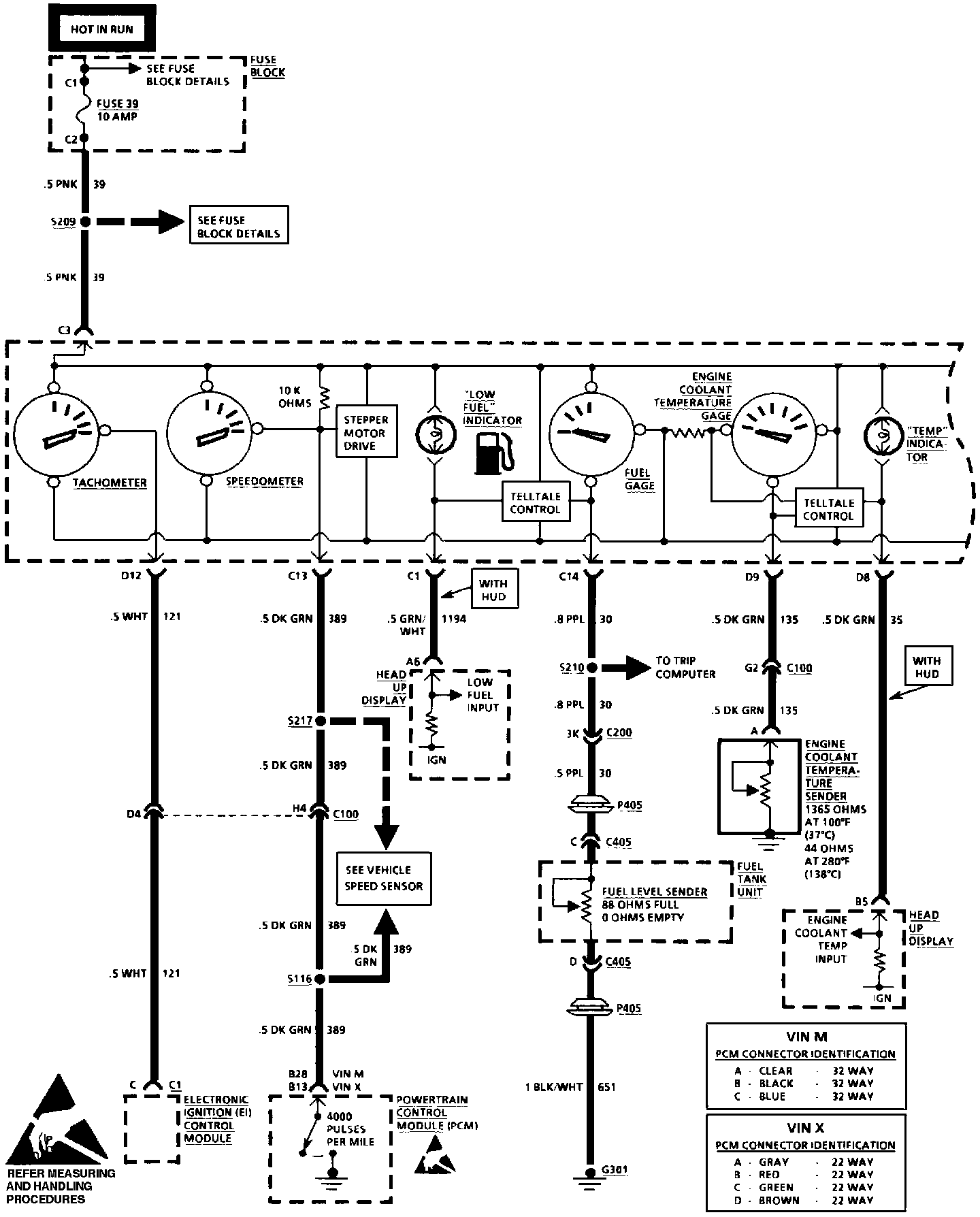

Instrument Cluster: Gages (Part 1 Of 2):





Instrument Cluster: Gages (Part 2 Of 2):





Instrument Cluster: Gages (Part 1 Of 2):





Instrument Cluster: Gages (Part 2 Of 2):
