Air Delivery and Temperature Controls

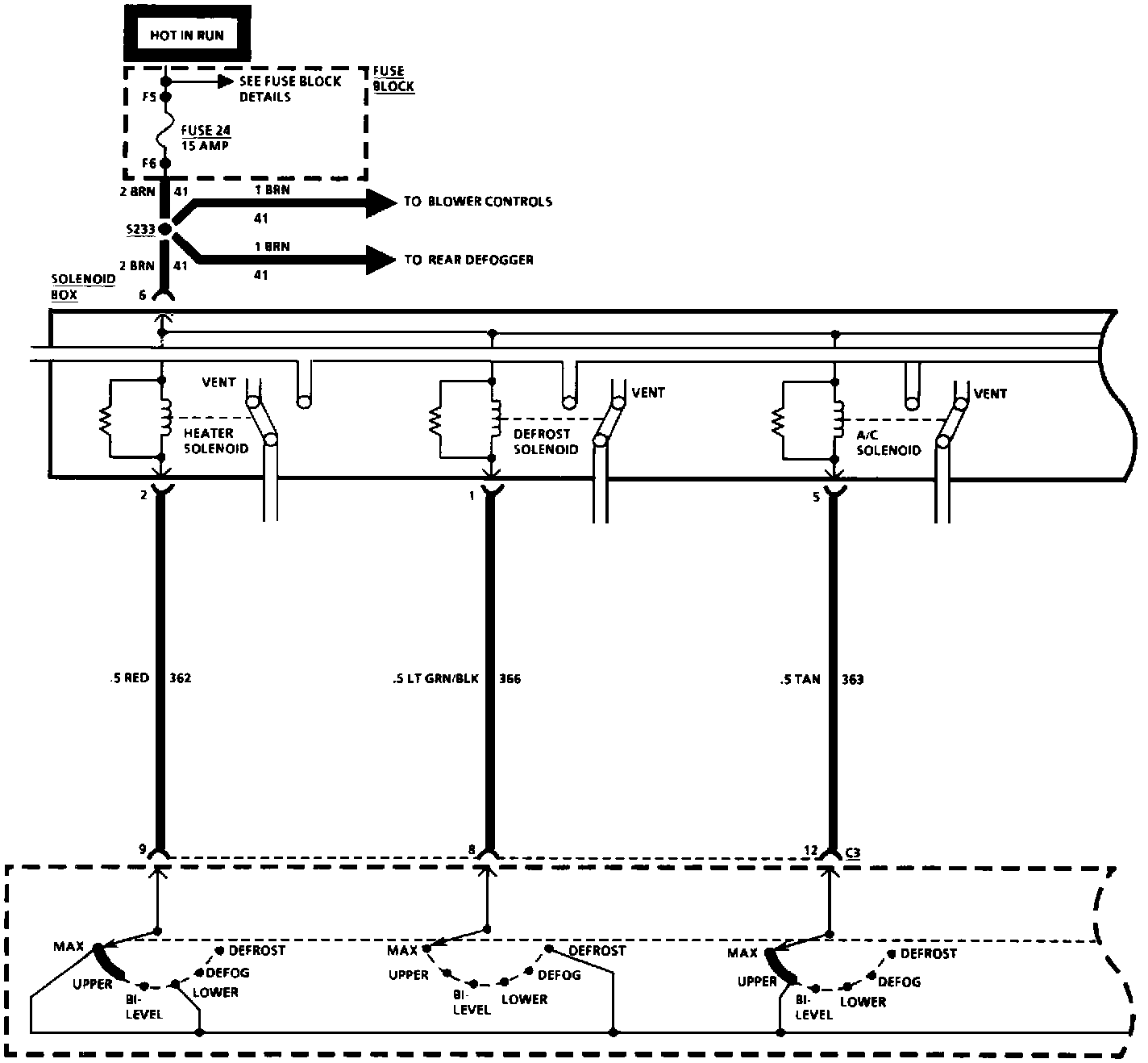

HVAC: Air Delivery And Temperature Control (Part 1 Of 3):

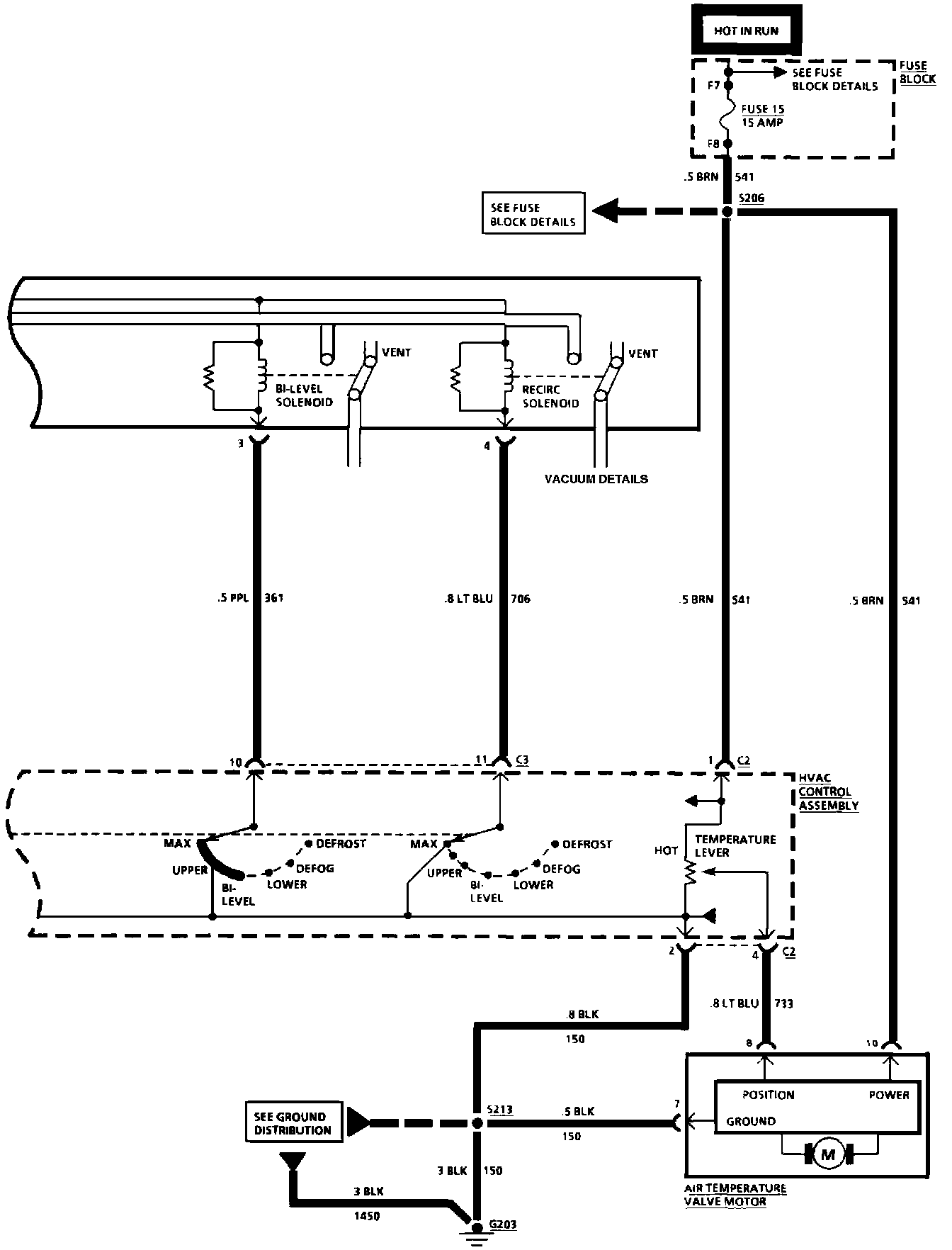

HVAC: Air Delivery And Temperature Control (Part 2 Of 3):



HVAC: Air Delivery And Temperature Control (Part 3 Of 3):
