Interior Lights Dimming

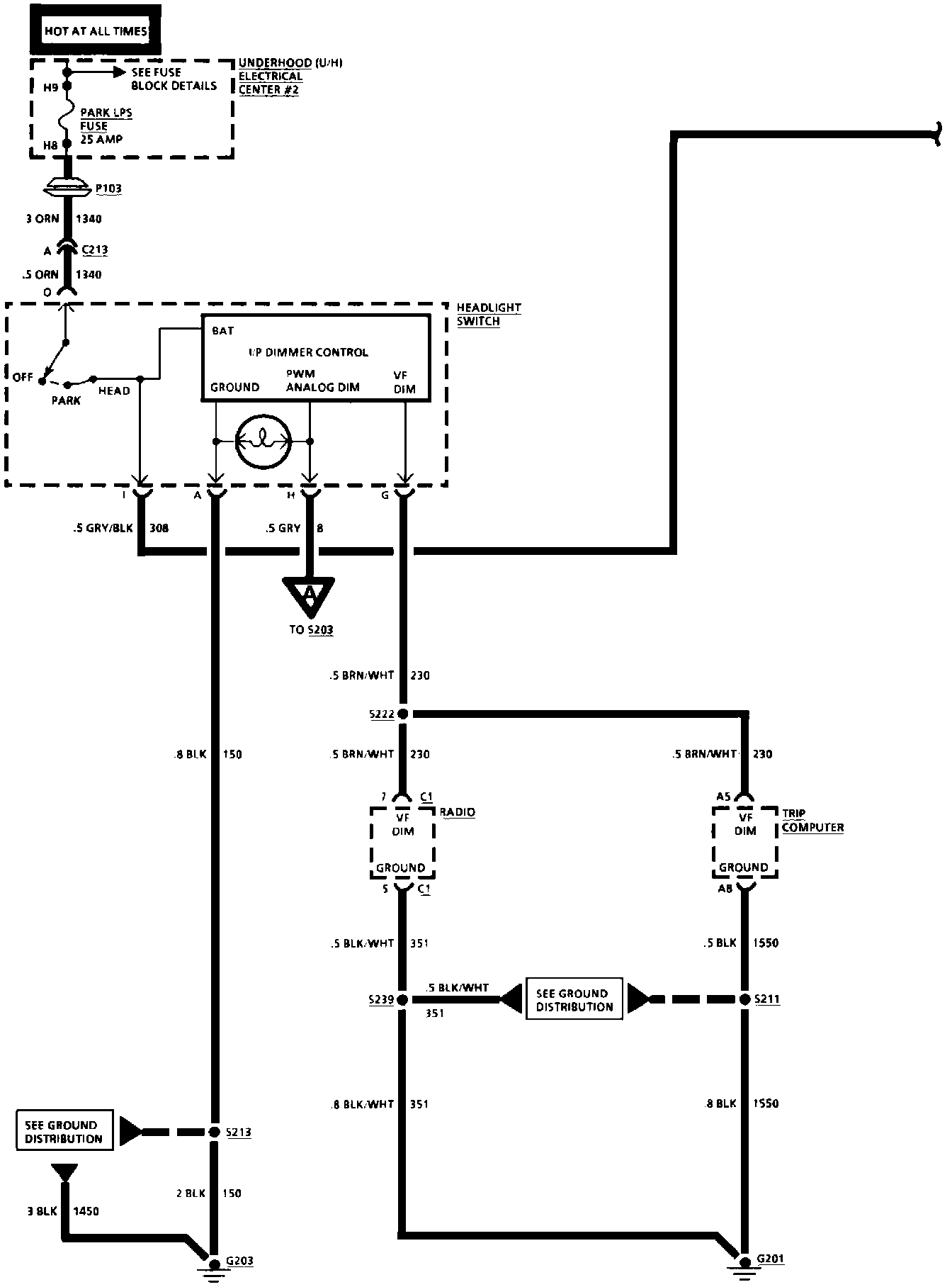

Interior Lights Dimming (Part 1 Of 4):





Interior Lights Dimming (Part 2 Of 4):

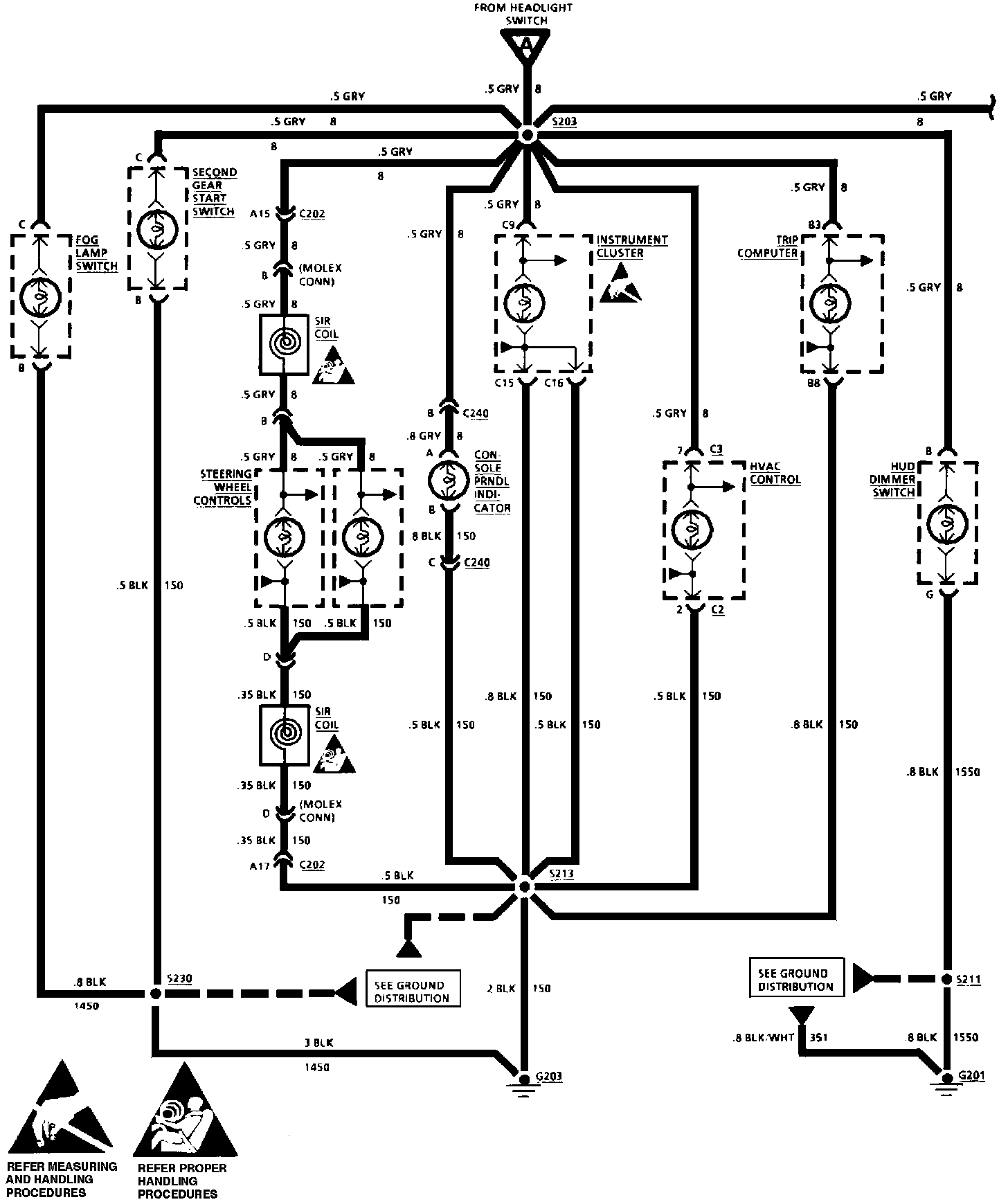

Interior Lights Dimming (Part 3 Of 4):





Interior Lights Dimming (Part 4 Of 4):
