Operation CHARM
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
1994
>>
Grand Prix V6-204 3.4L DOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
Fuse Block: Diagrams

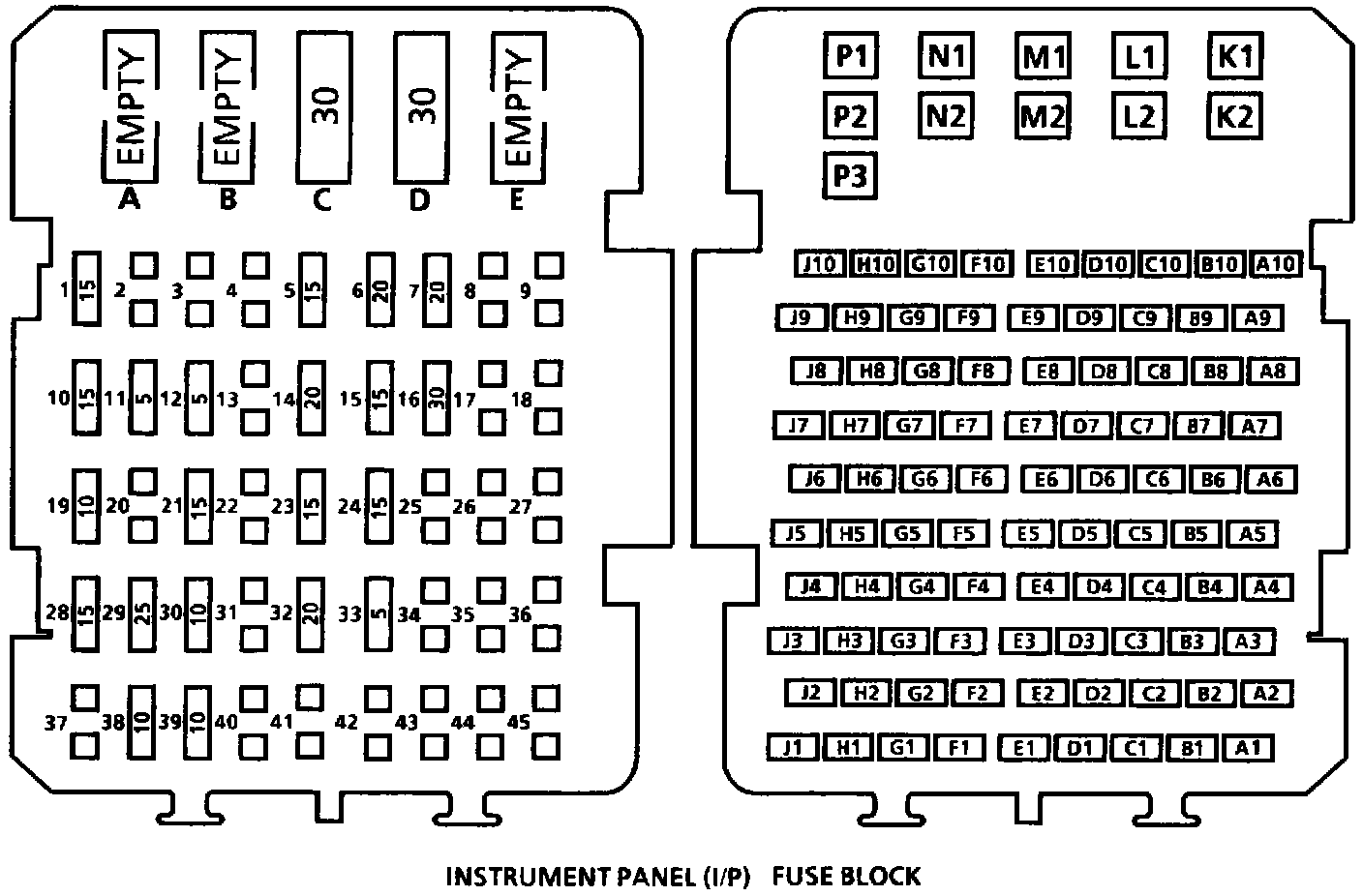

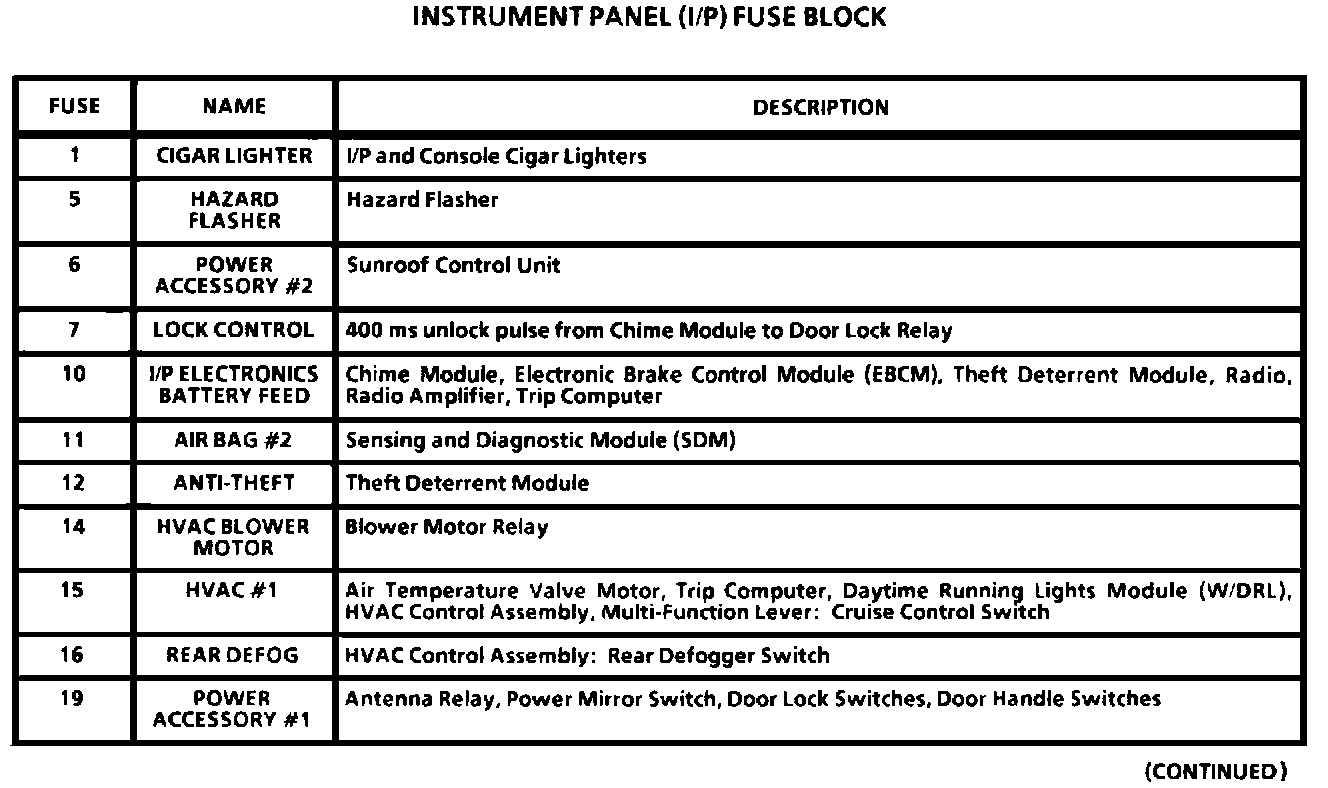

Instrument Panel (I/P) Fuse Block:

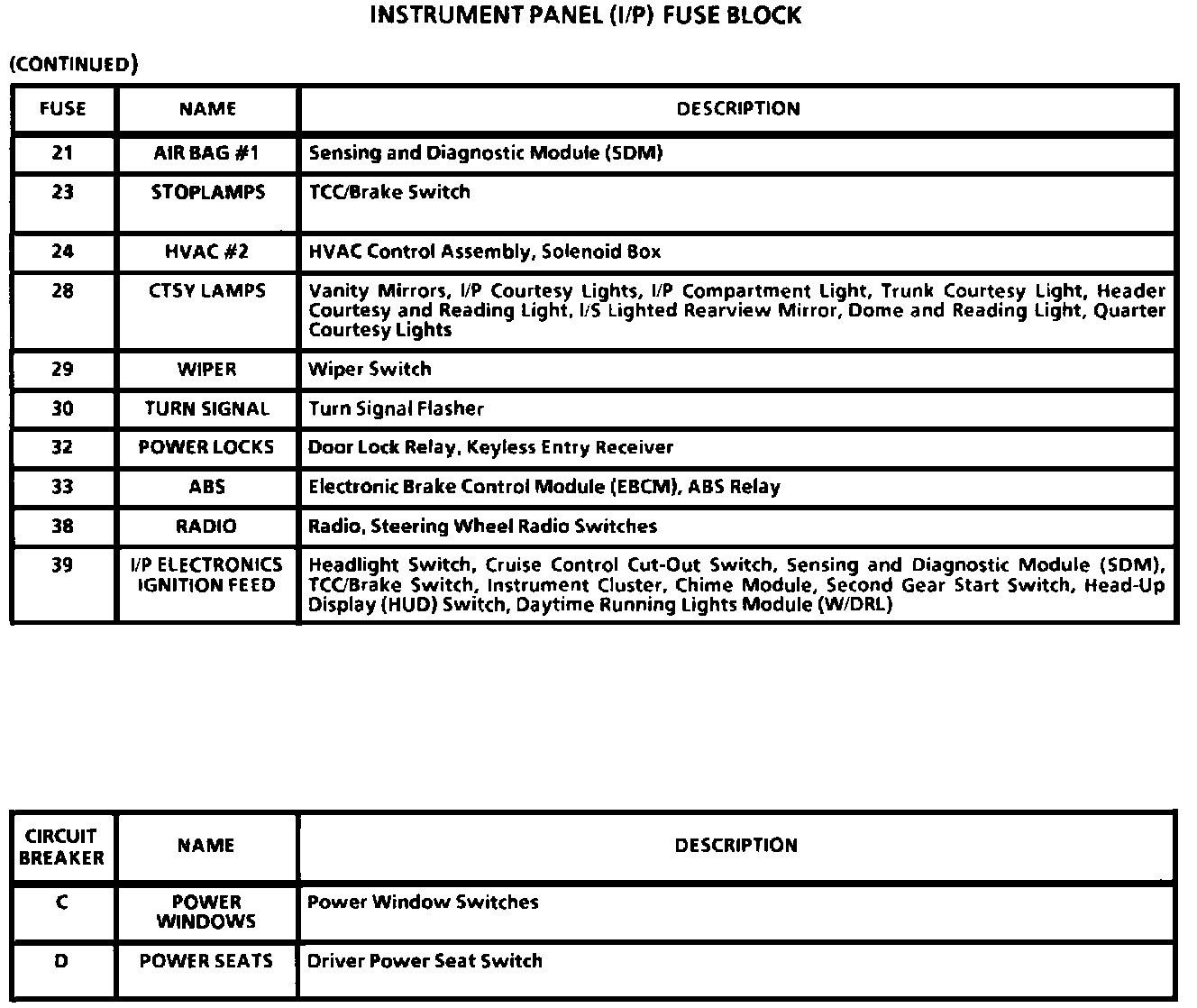

Instrument Panel (I/P) Fuse Block:
Instrument Panel (I/P) Fuse Block:
