Torque Converter Clutch & Shift Indicator
Torque Converter Clutch & Shift Indicator

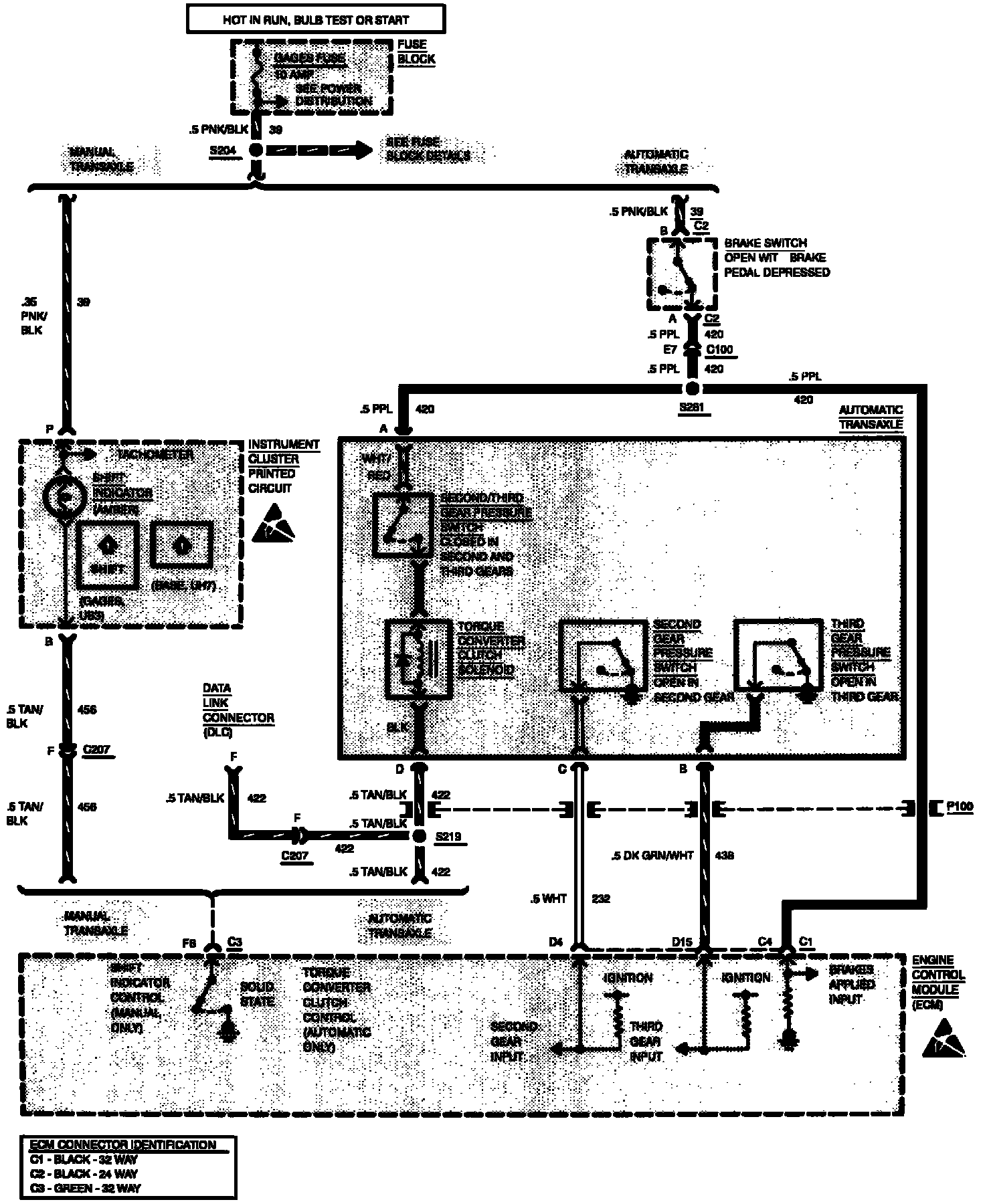

Torque Converter Clutch/Shift Indicator:
