Engine Control Module

MFI: Power And Grounds Wiring Circuit:



MFI: Ignition Wiring Circuit:

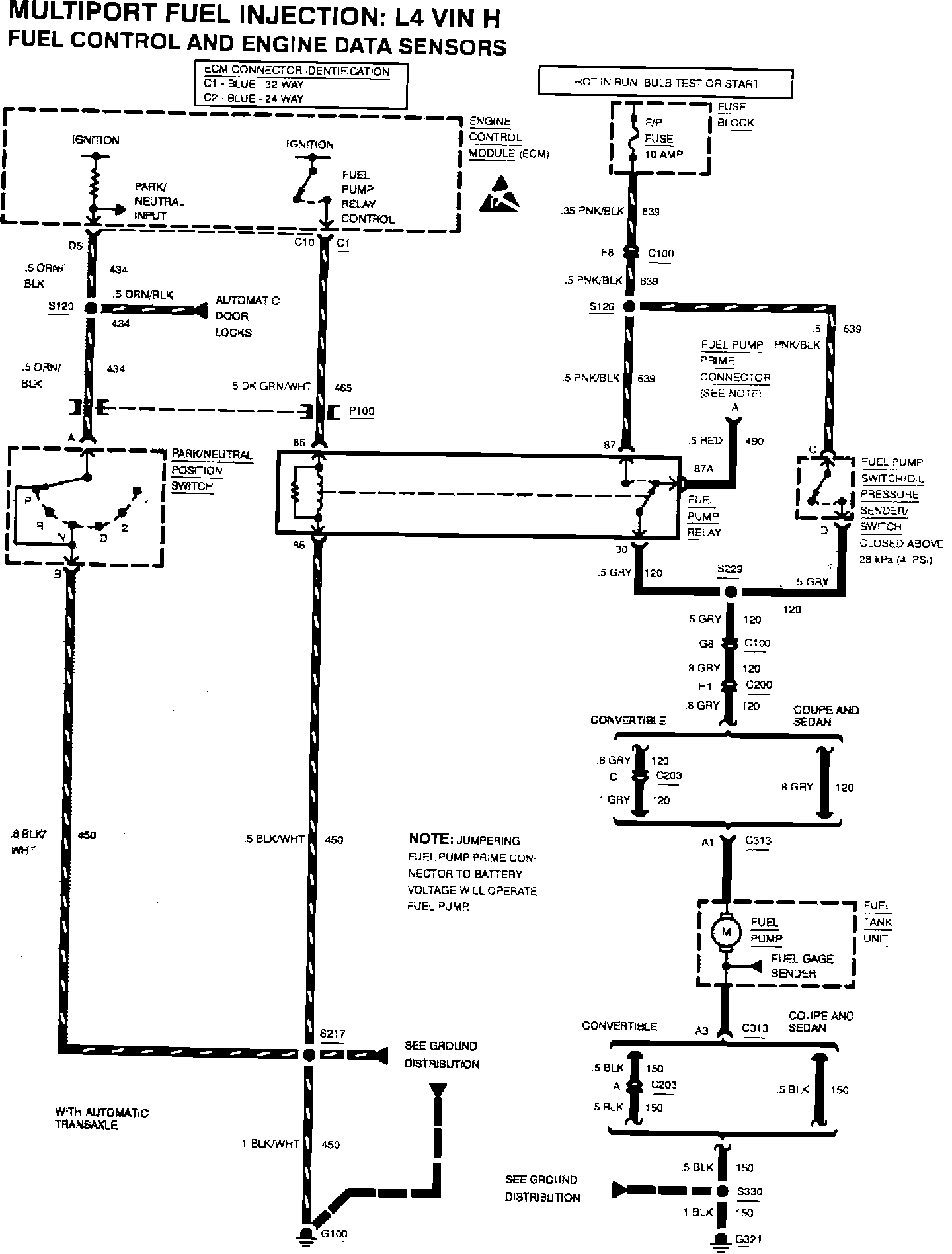

MFI: Fuel Control And Engine Data Sensors Wiring Circuit:
