Home >> Pontiac >> 1995 >> Bonneville V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Power Seat Switch

Power Seat Switch

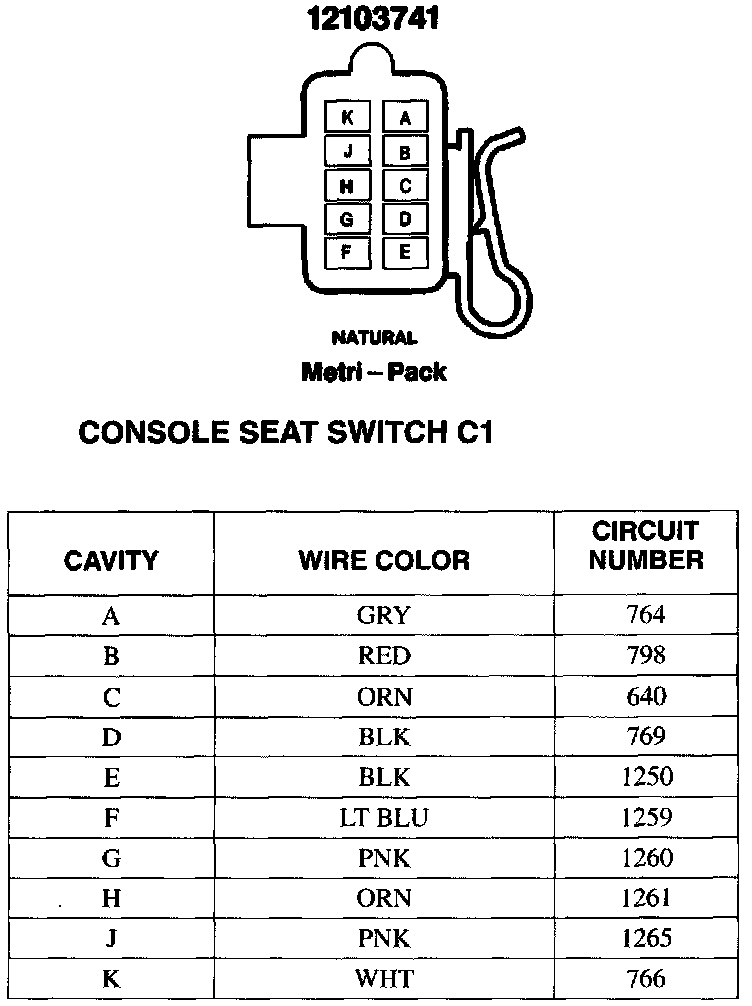

Console Seat Switch: C1:
