Data Sensors & Controlled Devices

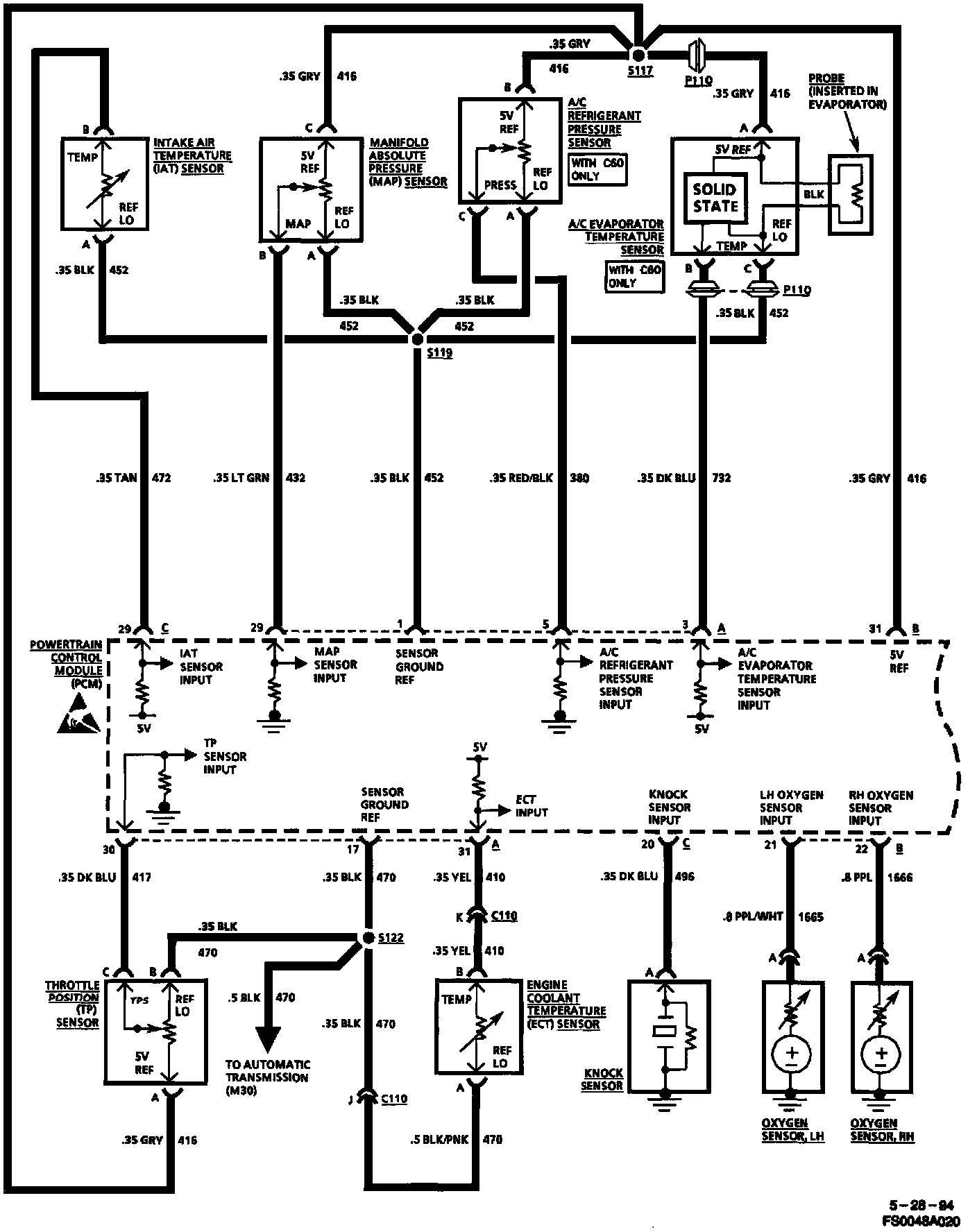

Sequential Multiport Fuel Injection: Engine Data Sensors:

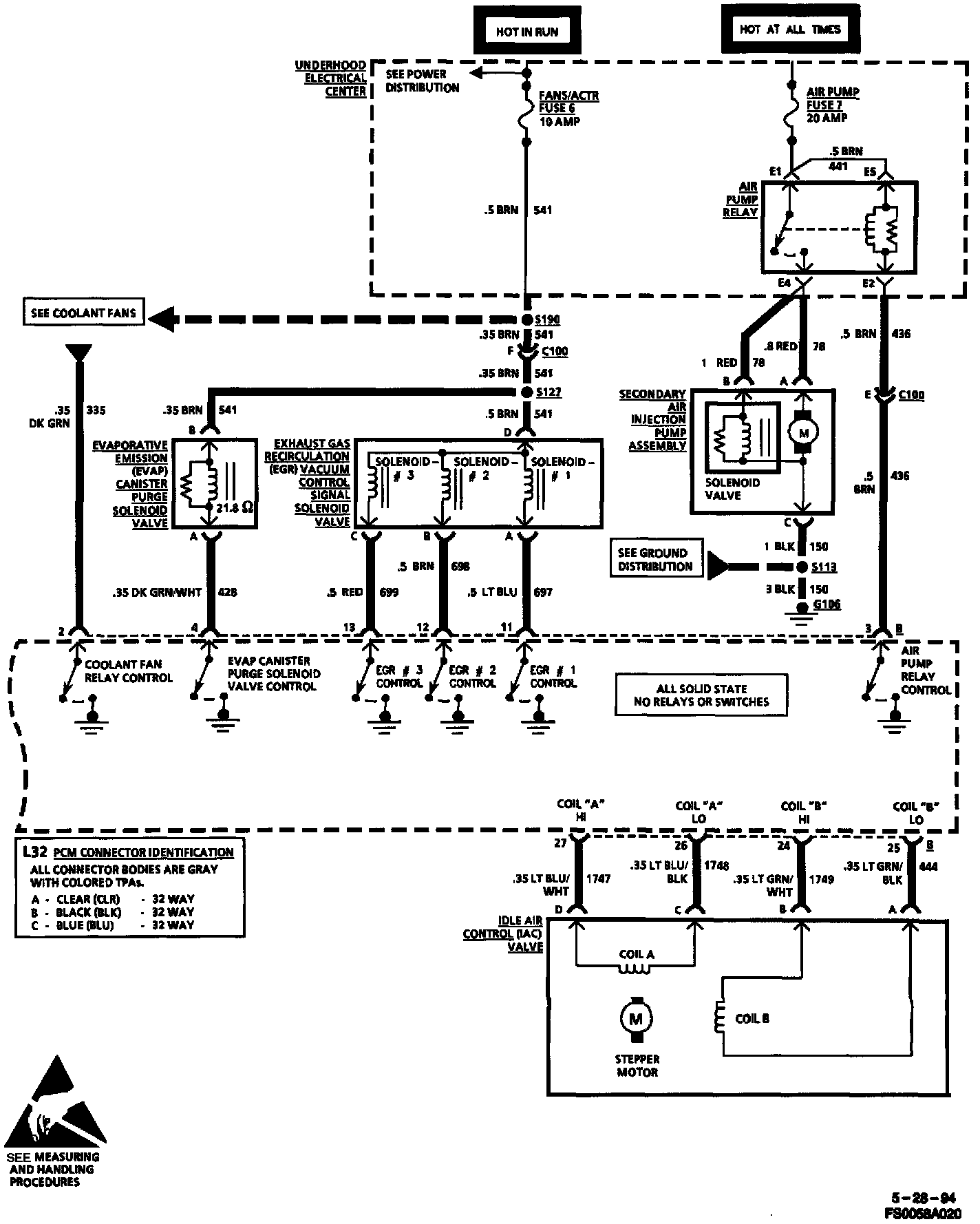

Sequential Multiport Fuel Injection: Controlled Devices:
