Transmission Controls and VSS

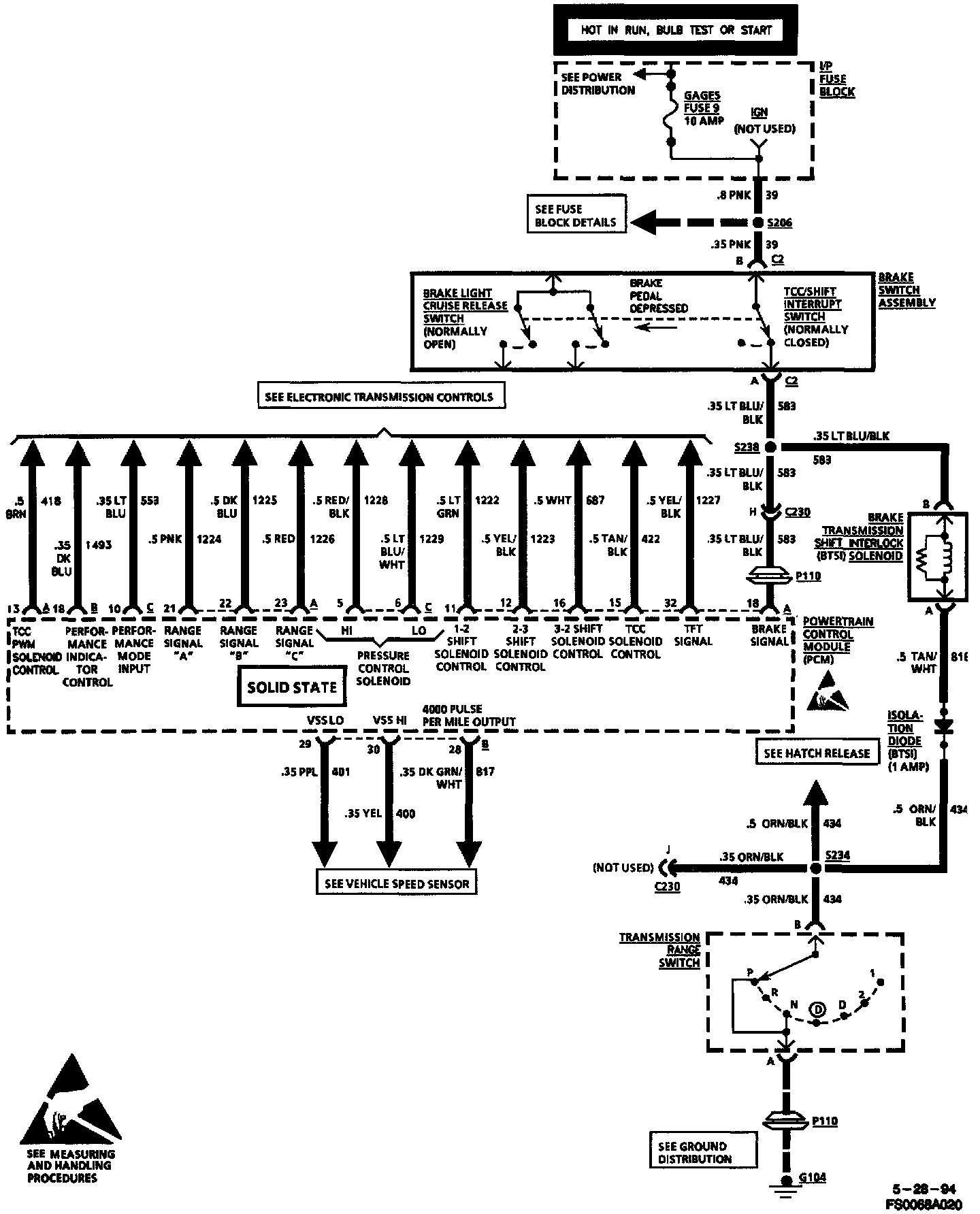

Automatic Transmission Controls (M30) And VSS:

These diagrams are part of the Complete set of Powertrain Wiring Diagram located under Powertrain Management. Refer to this area if you need the accompanying diagrams. Electrical Diagrams
