Home
>>
Pontiac
>>
1995
>>
Firebird V6-204 3.4L VIN S SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel Delivery & Controls
Fuel Delivery & Controls

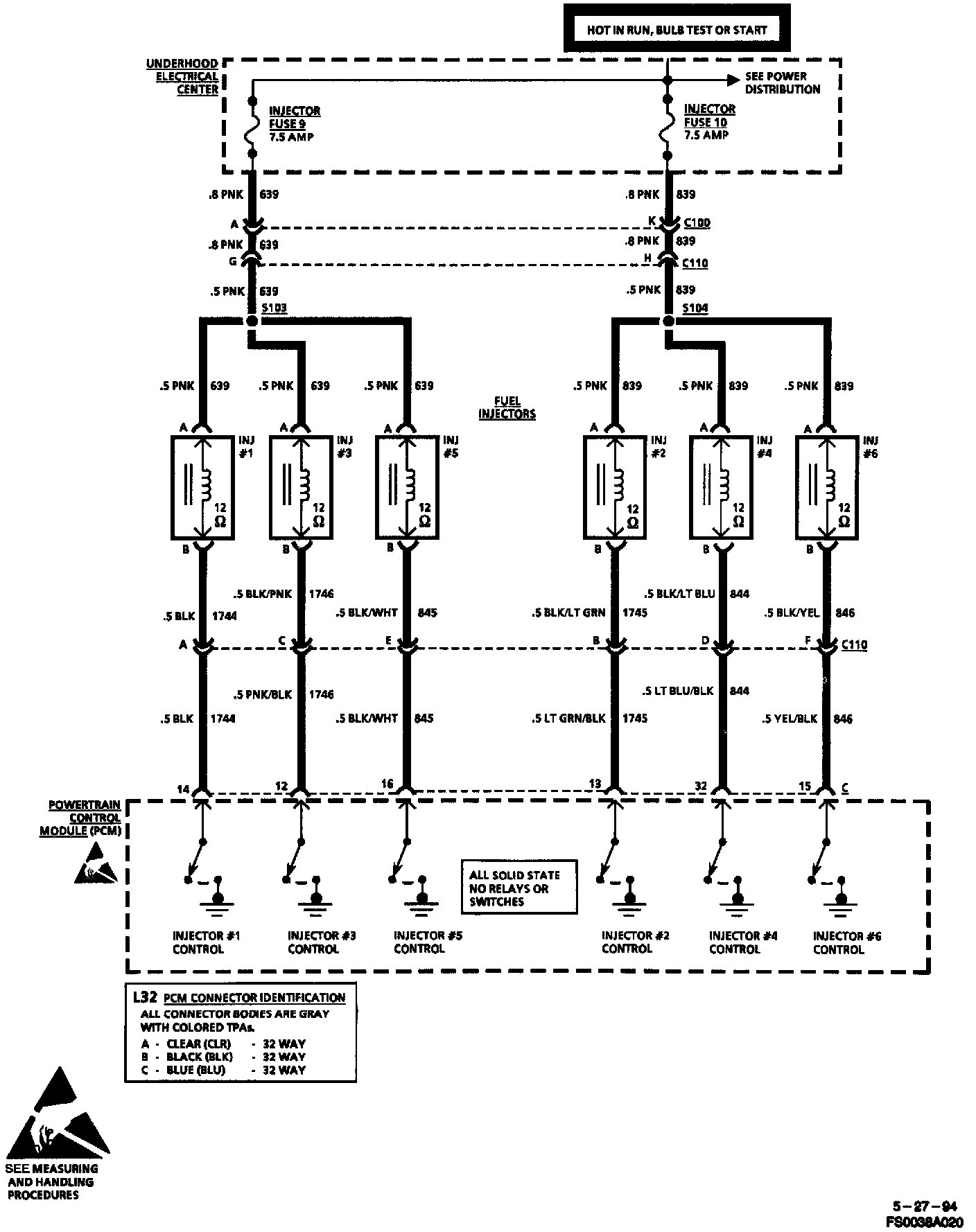

Sequential Multiport Fuel Injection: Injectors:
