Air Cleaner Housing: Service and Repair

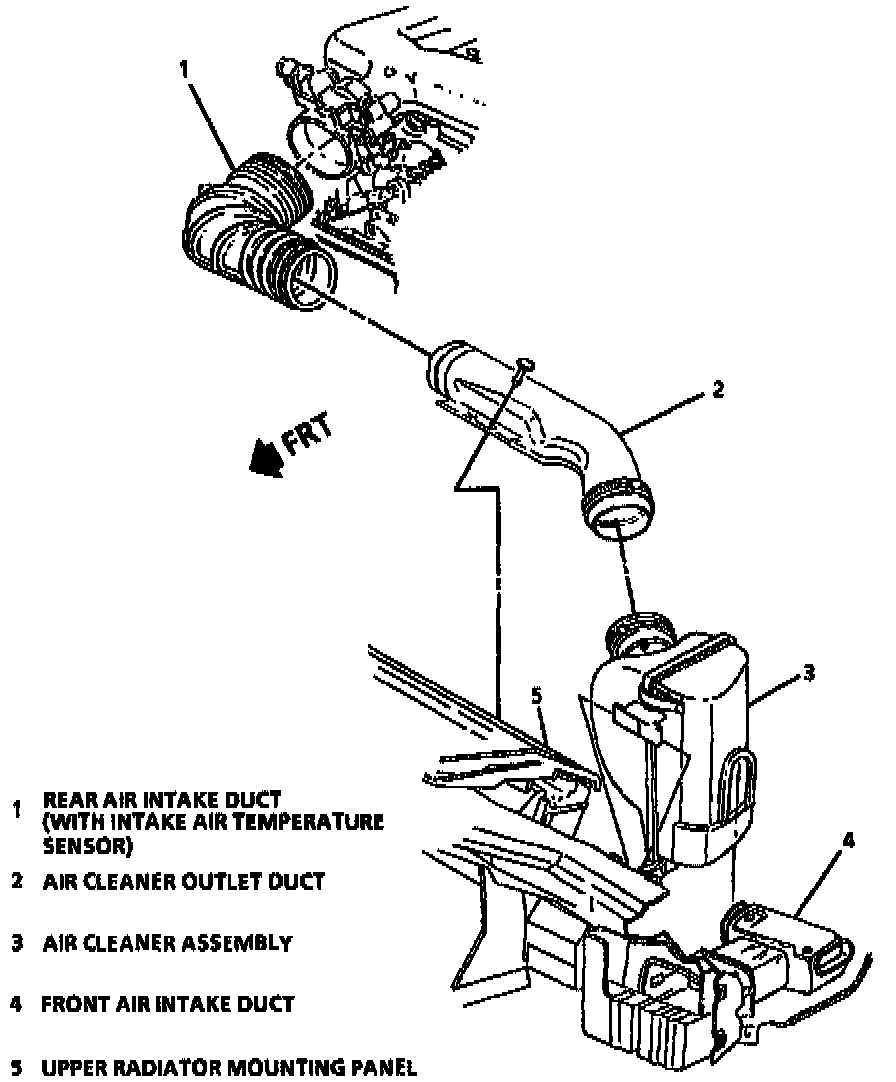

Air Induction System:

REMOVE OR DISCONNECT
1. Loosen clamp at rear air intake duct at throttle body.
2. Intake Air Temperature (IAT) sensor electrical connector.
3. Retainer from upper radiator support.
4. Crankcase vent pipe from rear air intake duct.
5. Loosen clamp that joins rear air intake duct to air cleaner outlet duct and remove rear air intake duct.
- AIR intake hose.
6. Slide air cleaner housing and air cleaner outlet duct up as a whole assembly.
7. Release latches from air cleaner housing.
8. Air cleaner filter.

INSTALL OR CONNECT
1. Air cleaner filter into air cleaner housing.
2. Snap air cleaner latches into place.
3. Slide air cleaner assembly into retainers.
4. Rear air intake duct to throttle body and tighten clamp.
5. IAT sensor electrical connector.
6. Retainer to upper radiator support.
7. Crankcase vent pipe to rear air intake duct.
8. AIR intake hose.

NOTE: Clamp assembly tension adjustment screw should be located on the side of the intake duct for optimum clamp force. This is important for proper sealing.
