Firebird V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Component
Connectors By Component

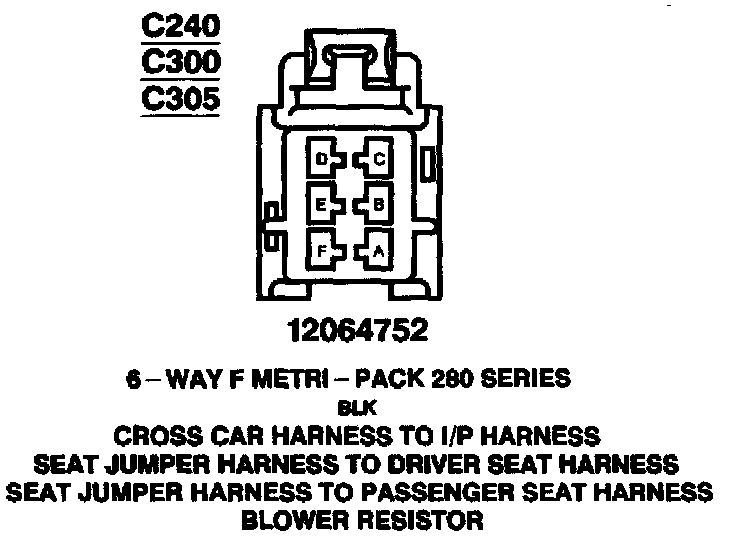

Harness Connector Face: C240, C300, C305:
