Daytime Running Lamp Control Unit

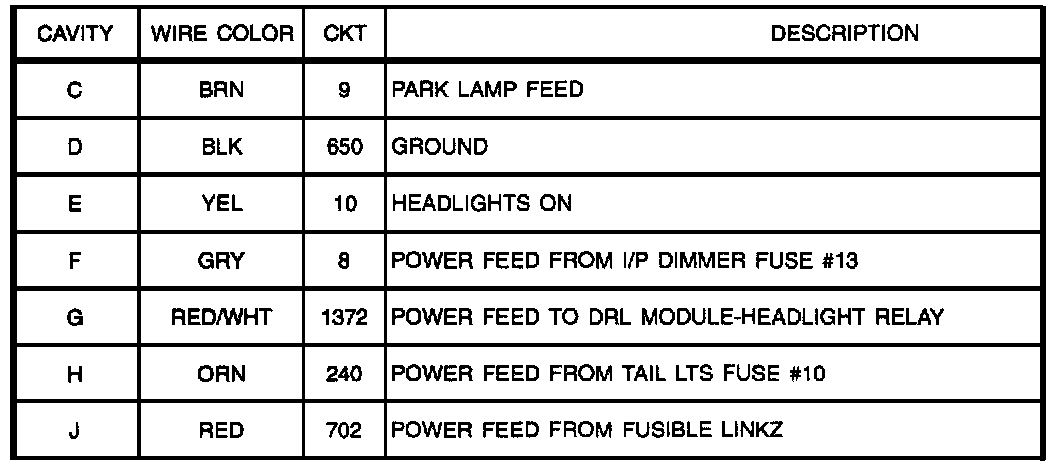

Headlight Switch: Description:

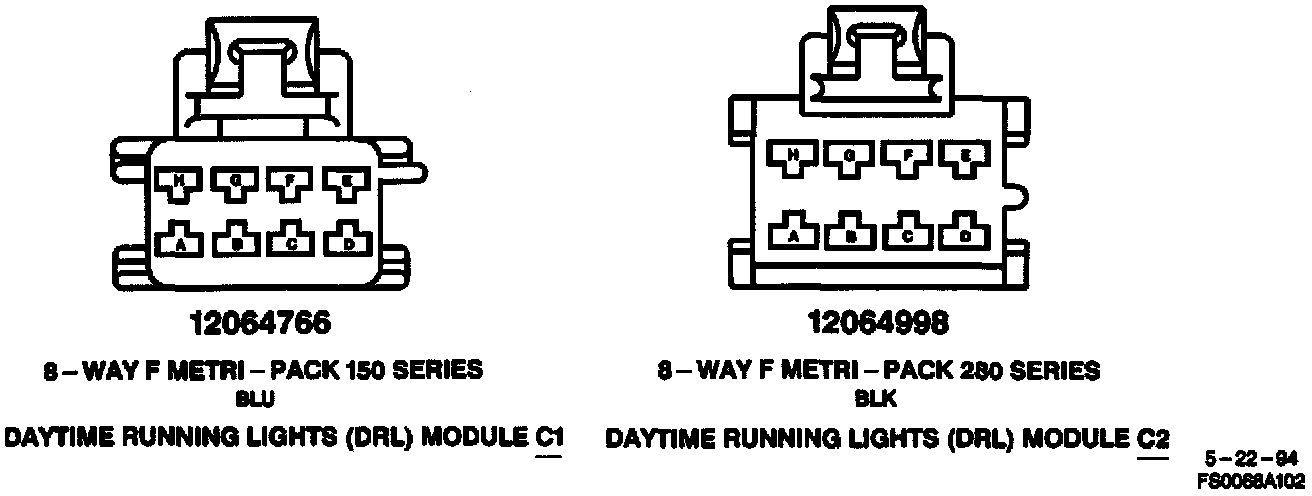

Daytime Running Lights (DRL) Module C1 And C2:
