Pontiac
>>
1995
>>
Firebird V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>

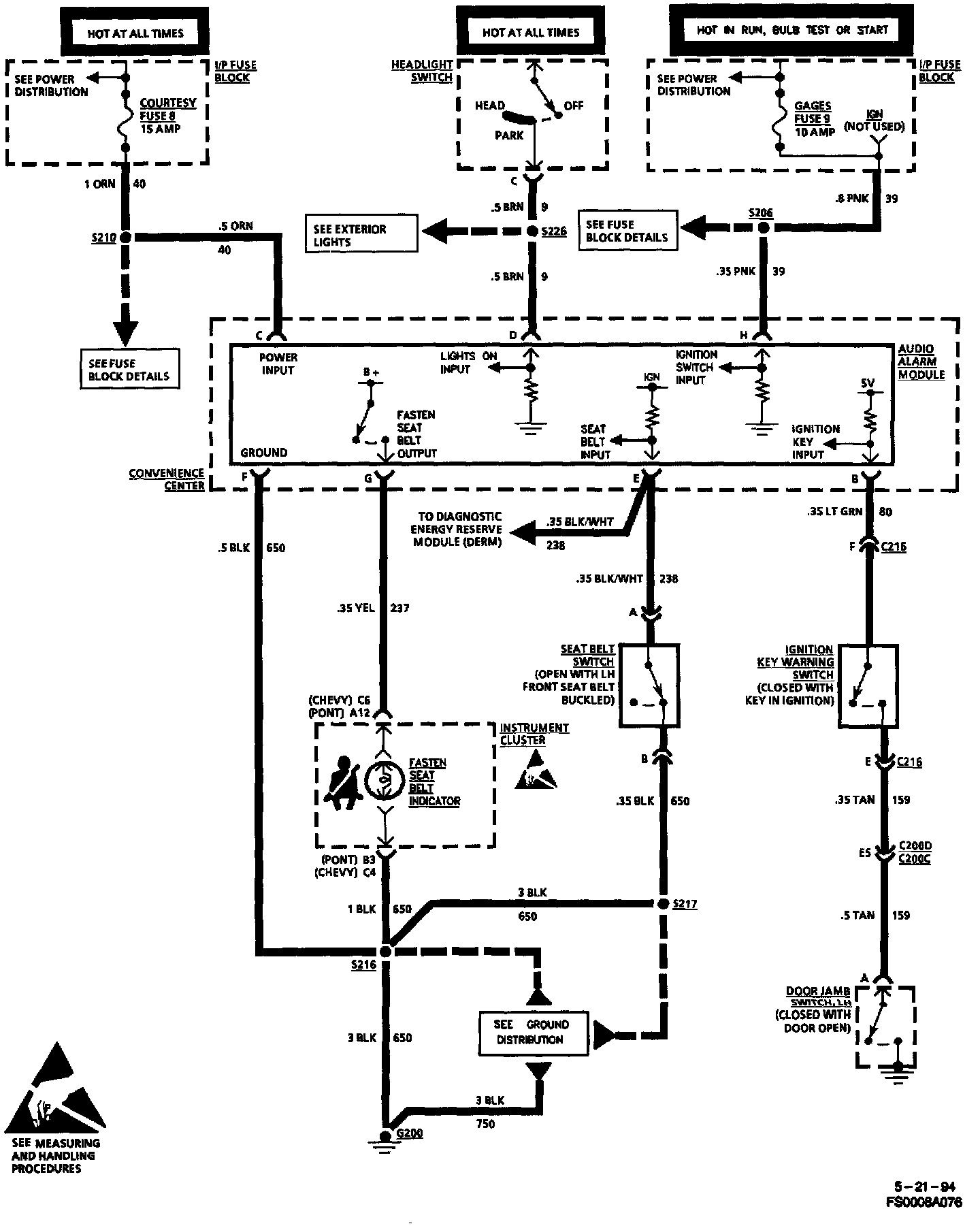

Audible Warning Device
Audible Warning Device
Audiable Warnings Chime:
