Daytime Running Lamp

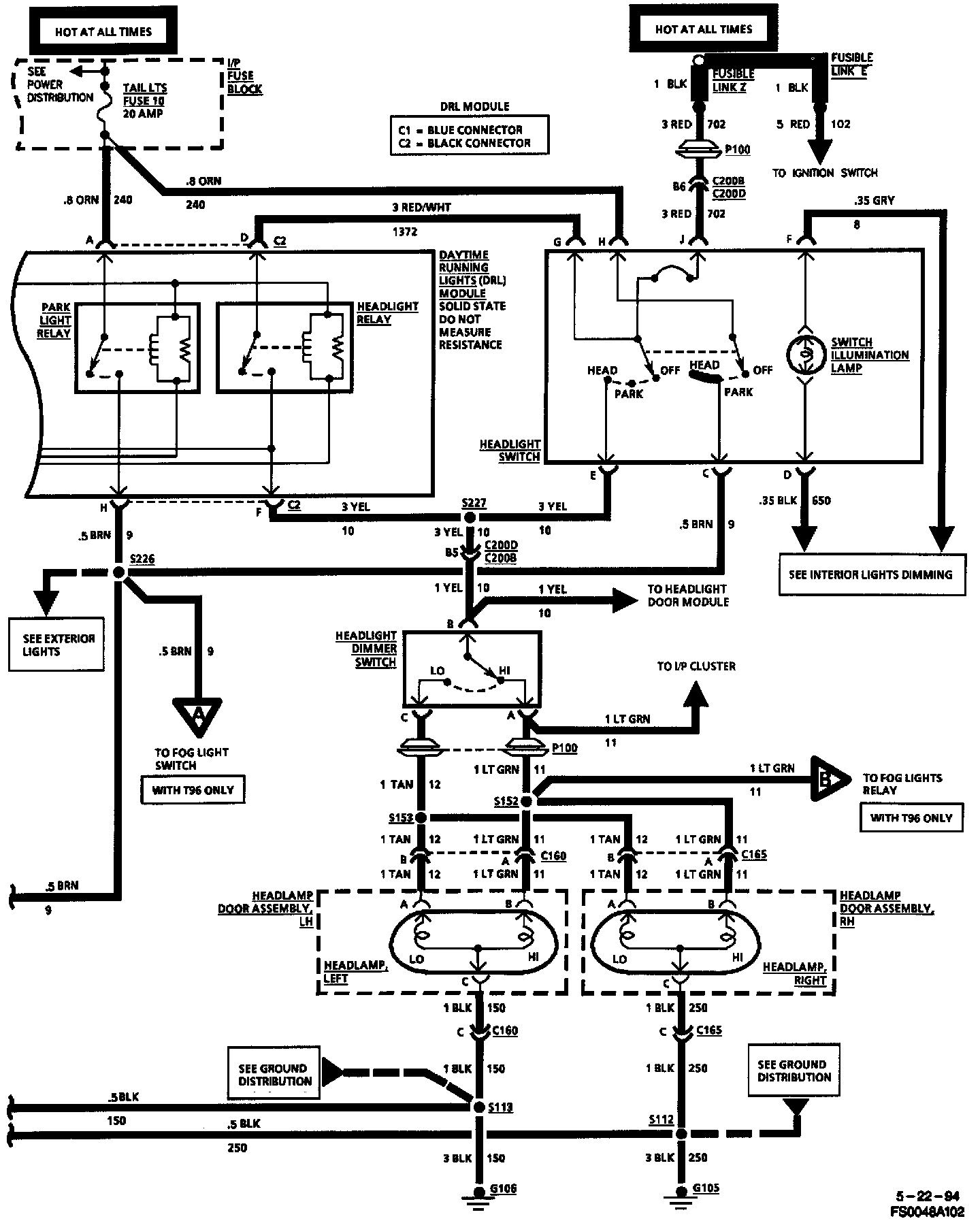

Headlights And Fog Lights: DRL (T61) (Part 1 Of 3):




Part 1 of 3

Headlights And Fog Lights: DRL (T61) (Part 2 Of 3):




Part 2 of 3

Headlights And Fog Lights: DRL (T61) (Part 3 Of 3):




Part 3 of 3
