Automatic Transmission/Transaxle Controls

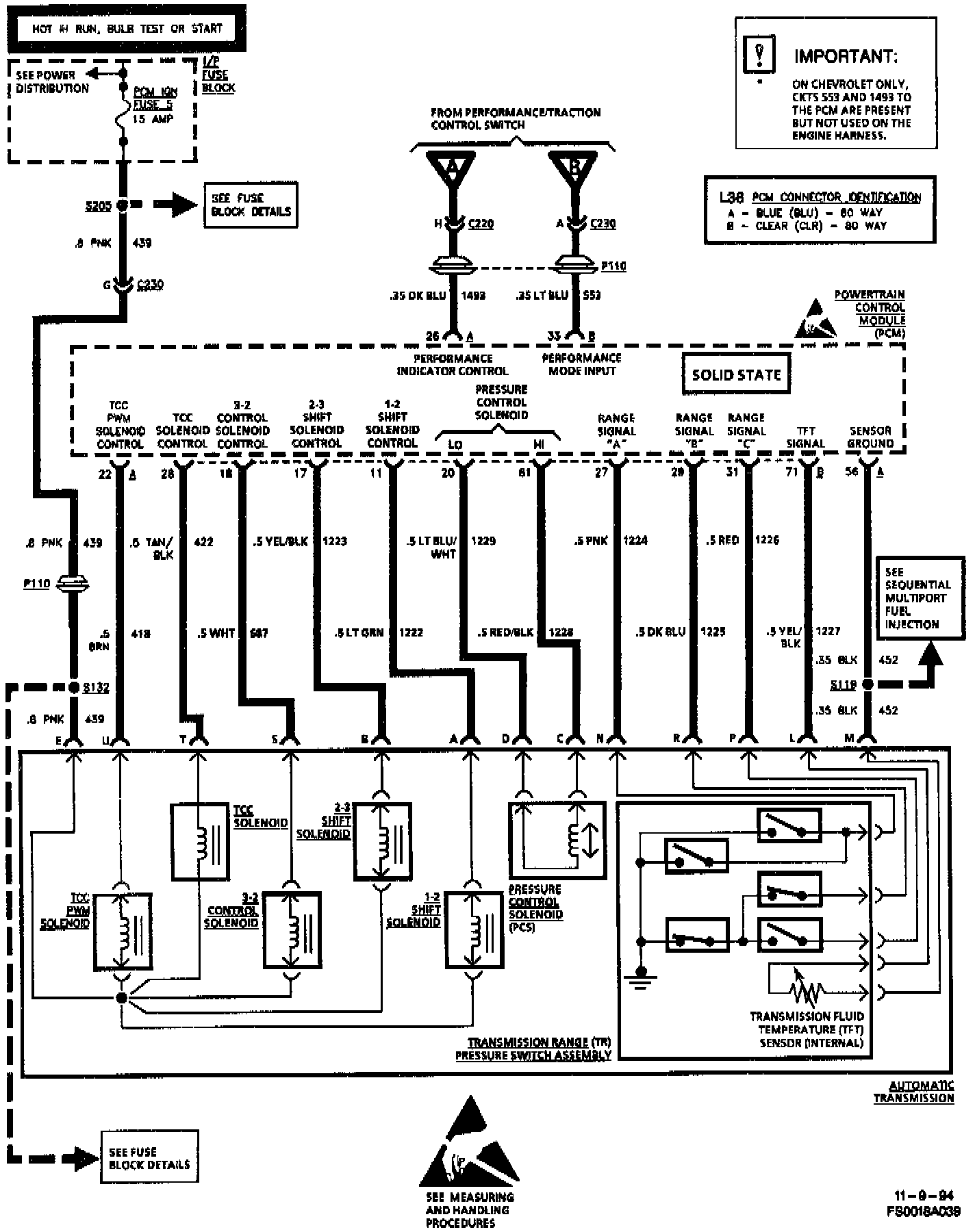

Electronic Transmission Controls:



Electronic Transmission Controls:
