Instrument Cluster / Carrier: Service and Repair

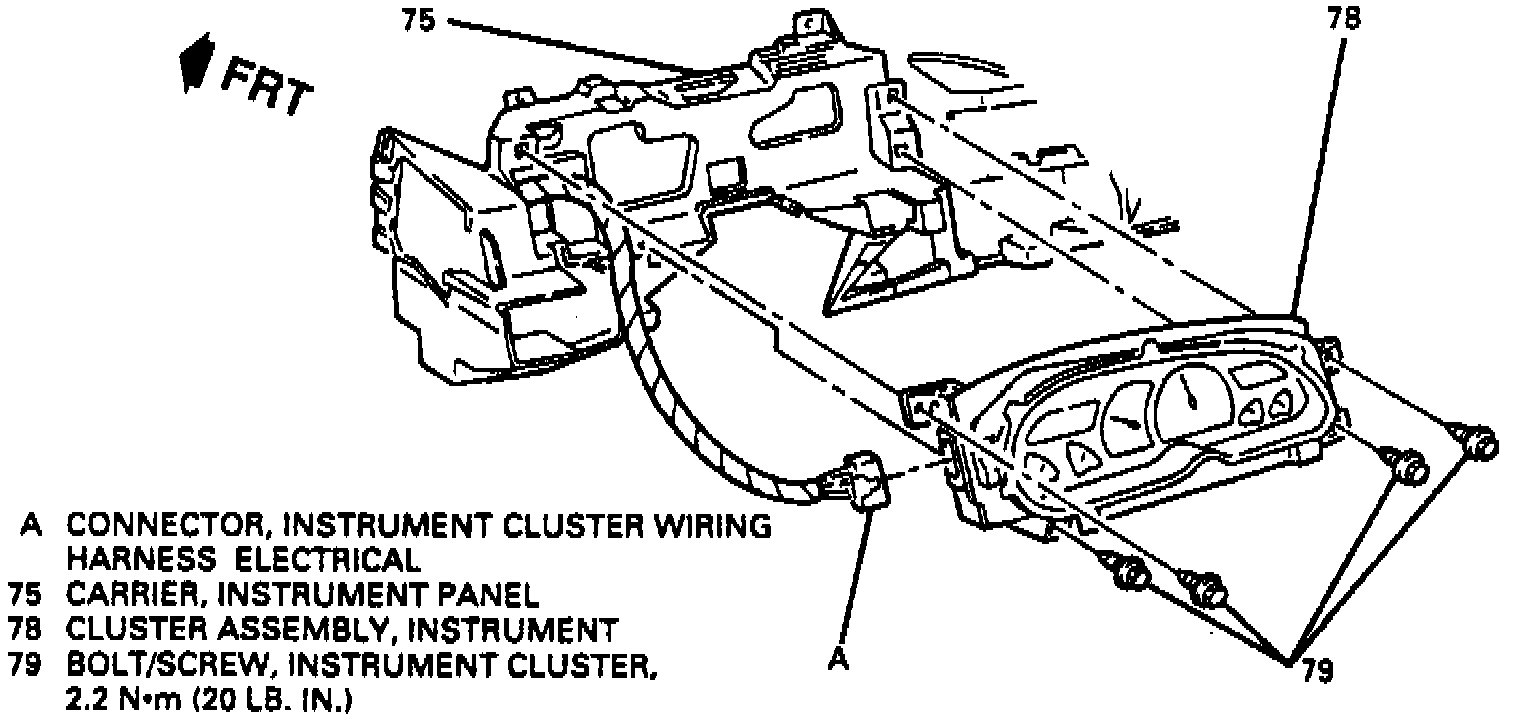

Fig. 16 Instrument Cluster:

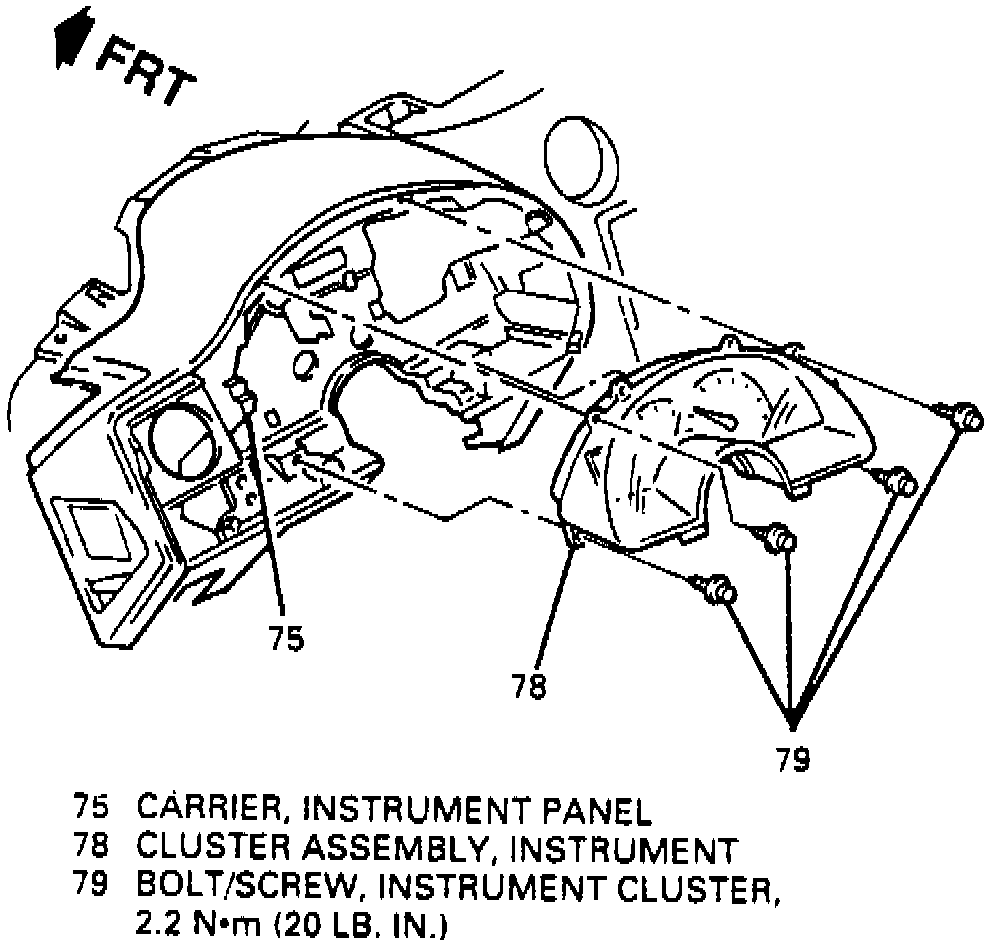

Fig. 17 Instrument Cluster:

1. Disconnect battery ground cable.
2. Disconnect instrument panel upper trim panel assembly from lower windshield support, then remove from carrier.
3. Remove instrument cluster assembly from carrier, Fig. 16 and 17,. then disconnect electrical connector from cluster assembly.
4. Reverse procedure to install.
