Symptom Diagnostic Charts - Exterior Lights
Symptom Diagnostic Charts - Exterior Lights

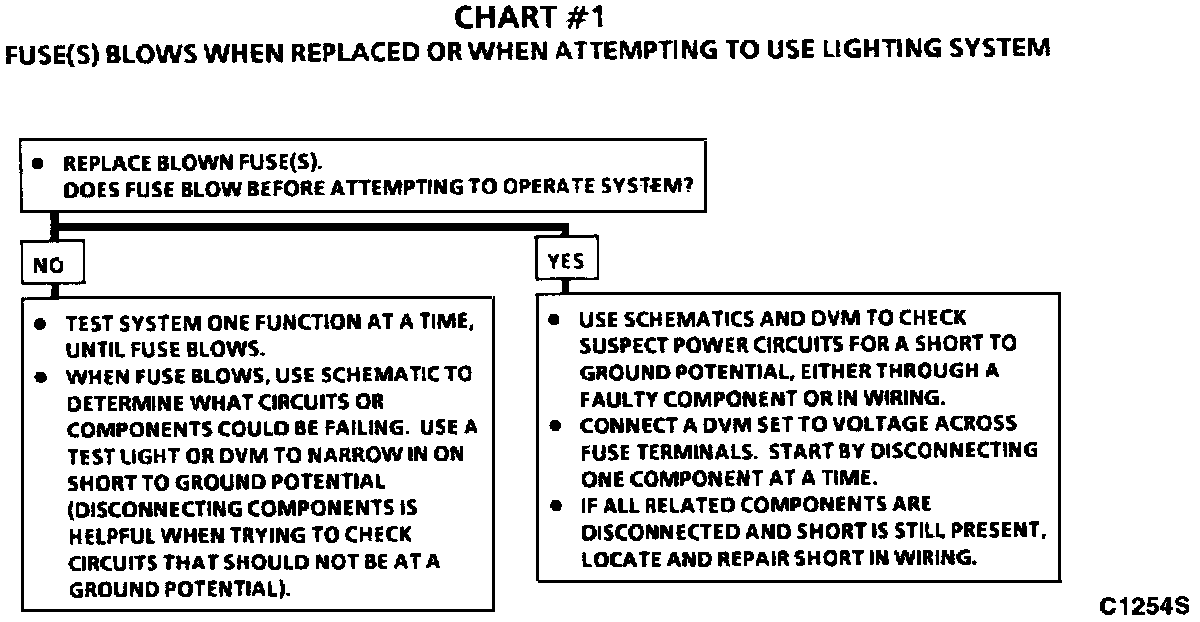

Chart #1 Fuse(S) Blows When Replaced:
