Low Speed, Pulse Delay & Mist Modes Inoperative

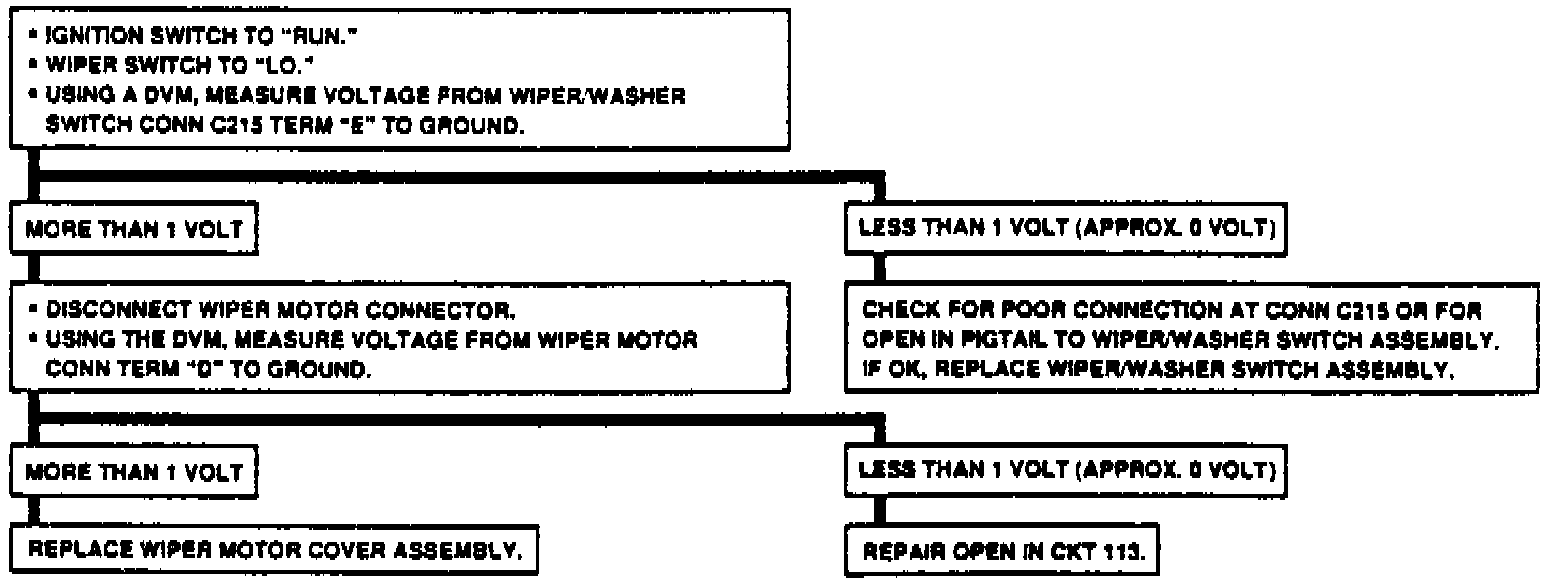

Fig. 35 Test 4: Low, Speed, Pulse Delay & Mist Modes Inoperative:
