Shift Indicator - A/T
>>
With Console
With Console

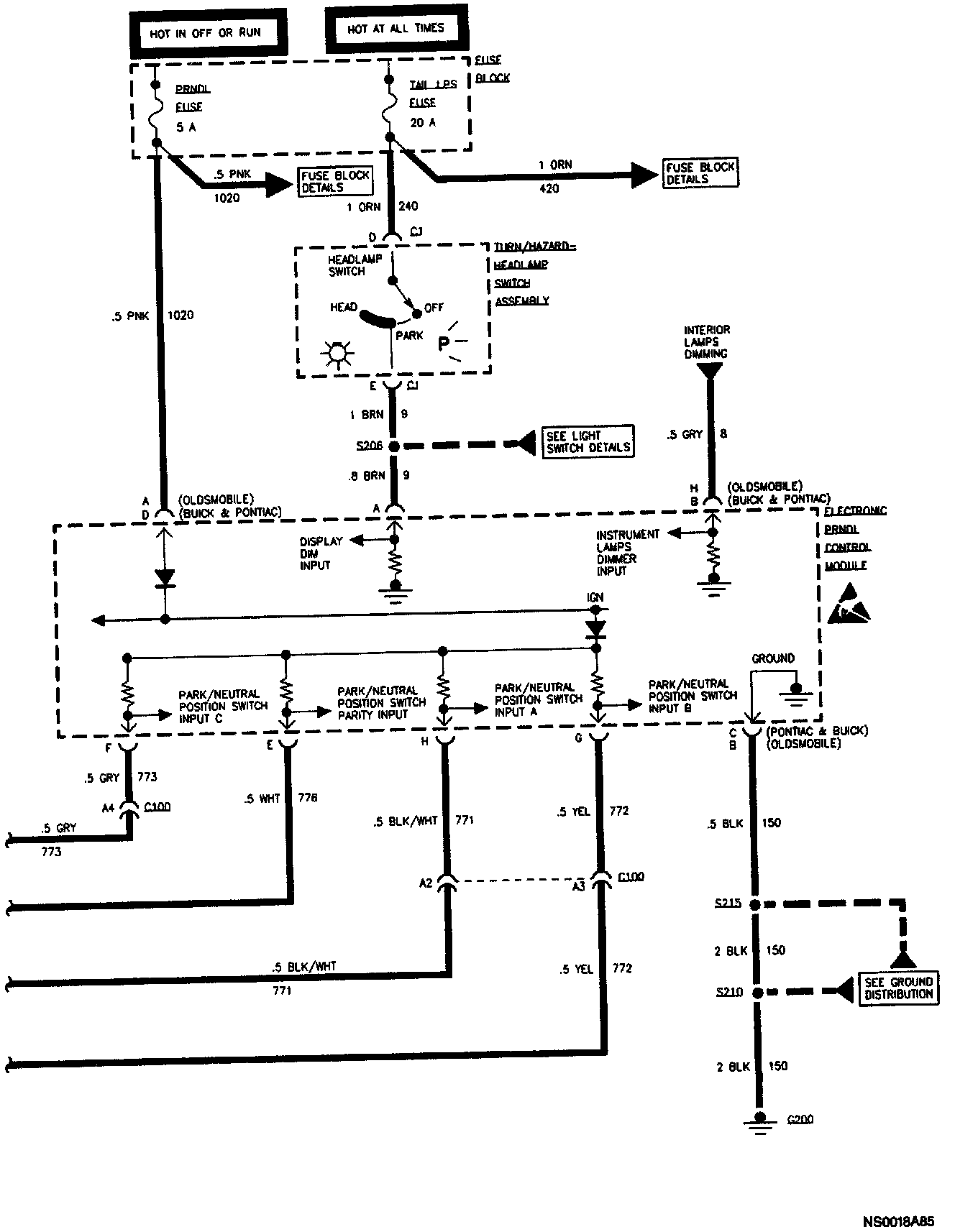

Electronic PRNDL- With Console (D55) (Part 1 Of 2):
Electronic PRNDL- With Console (D55) (Part 2 Of 2):
